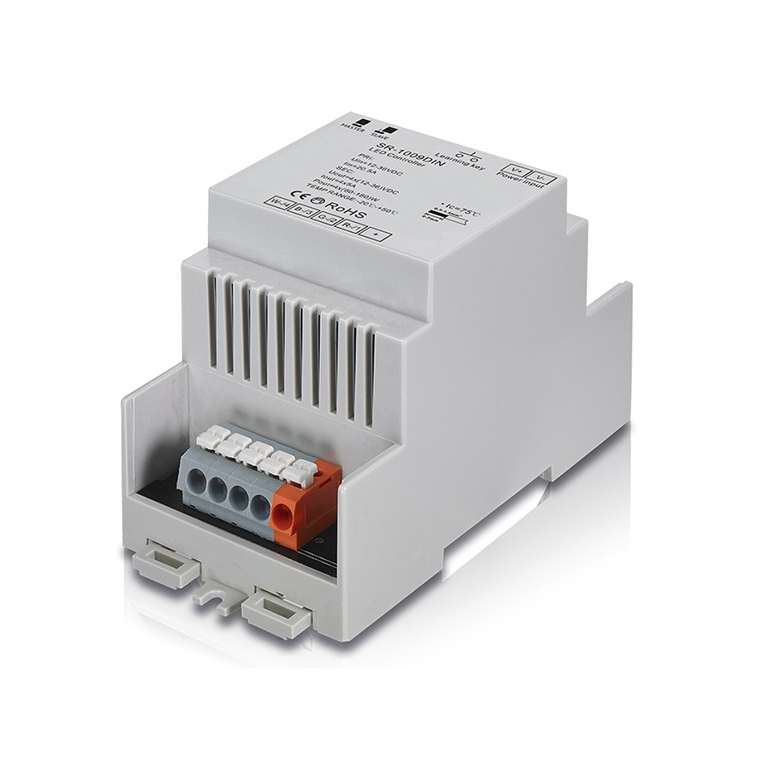

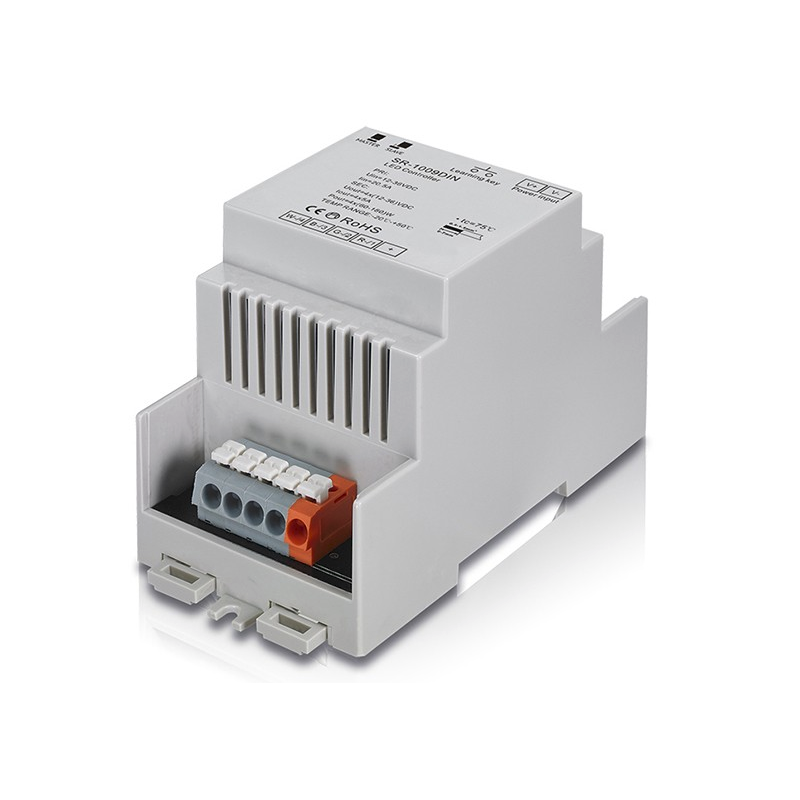

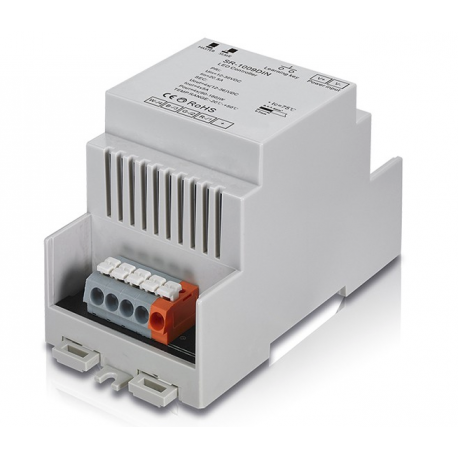

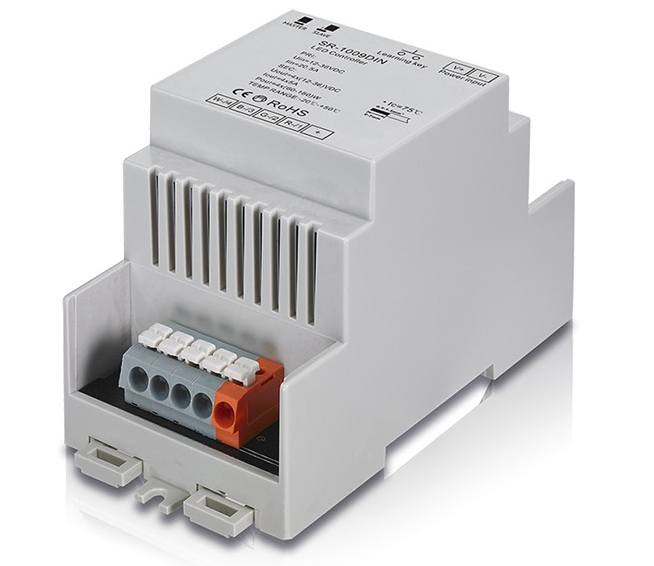

LED controller-receiver SR-1009DIN

LED controller-receiver SR-1009DIN Expand

11815

New

In stock
Quantity:
Order quantity: 1 шт

$75.24

/ Штука

Need help? (consultation, payment, delivery)
Short description
SR-1009DIN – this is a universal controller that can be installed on a DIN rail. It is designed to change the color and brightness of RGBW strips, to adjust the brightness of monochrome strips, as well as to set the color and change the brightness of two-color CCT strips. This is a four-channel dimmer rated at 20A (4 channels of 5A) for connecting LED strips from 12V to 36V. The warranty period is 5 years.
Manufacturer: SUNRICHER
Input Voltage, V ? 12-36V
Warranty term ? 3 years
Ігор
Ігор
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 8000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Residential Complex “Suchasnyi Kvartal”, Liubomyra Huzara Avenue, building 11, 1st floor.

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
LED controller-receiver SR-1009DIN

11815

In stock
Quantity: шт

$75.24

Parameters LED controller-receiver SR-1009DIN

Input Voltage, V ? 12-36V
Warranty term ? 3 years
Brand ? SUNRICHER
CoefficientUnitMeasurement 1
Number of Output Channels ? 4 channels
Maximum Current per Channel, A/сh. ? 5.0
Data (Signal) RF-пульт
Case Type ? on DIN rail
Степень защиты IP20

Description LED controller-receiver SR-1009DIN

SR-1009DIN – this is a universal controller that can be installed on a DIN rail.
It is designed for changing the color and brightness of RGBW strips, for adjusting the brightness of monochrome strips, as well as for tuning the color and changing the brightness of two-color CCT strips – depending on the connected control device.
This is a four-channel dimmer rated at 20A (4 channels of 5A) for connecting LED strips in the range of 12V to 36V.
The maximum power of the connected strip is 240W at 12V and 480W at 24V.
The warranty period is 5 years.
