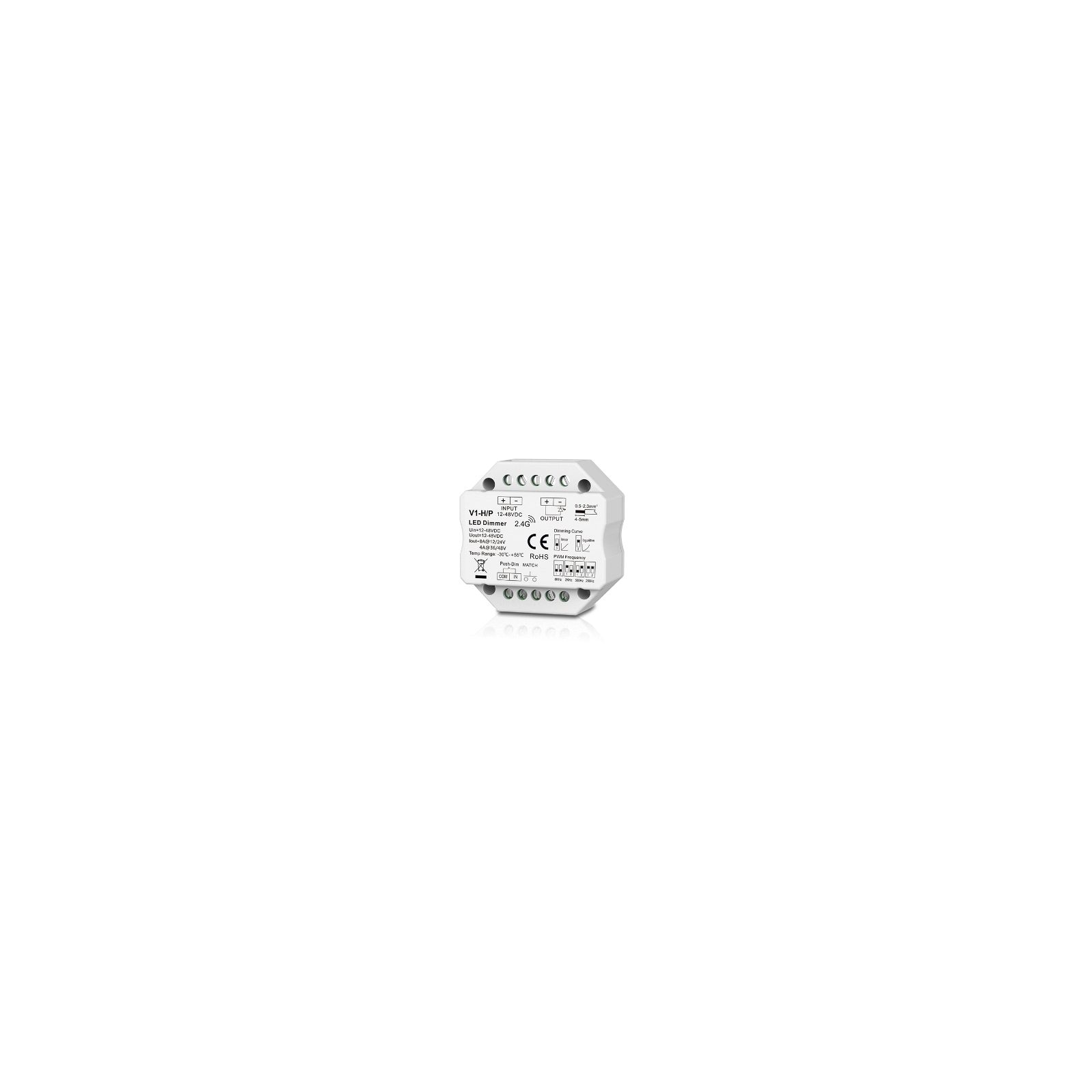

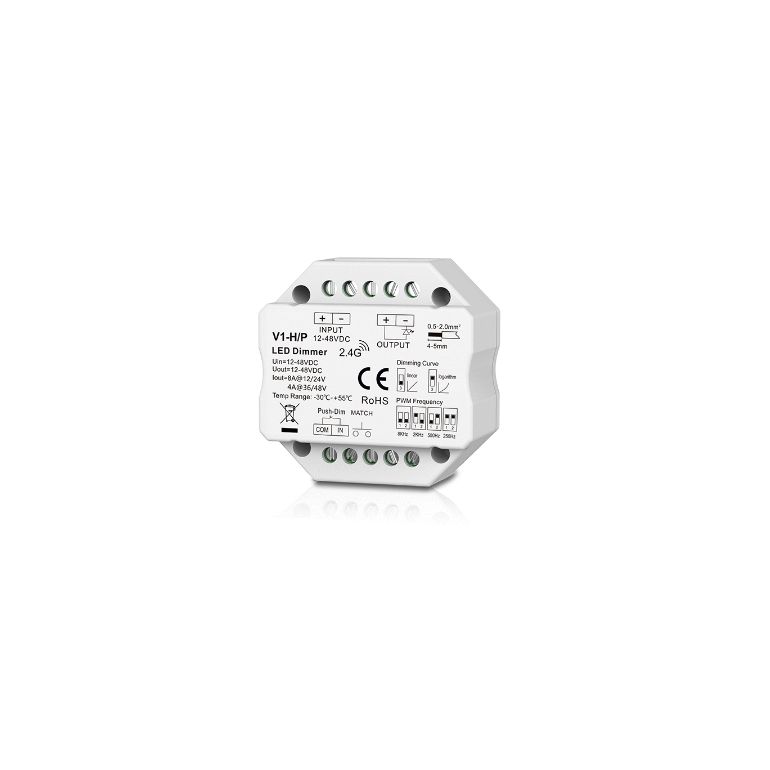

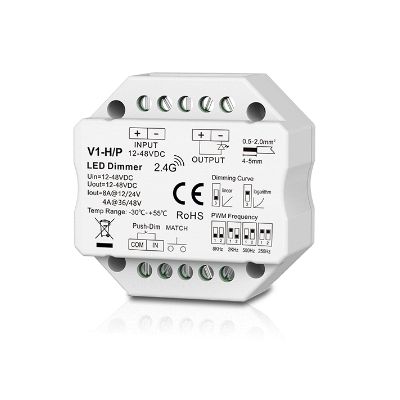

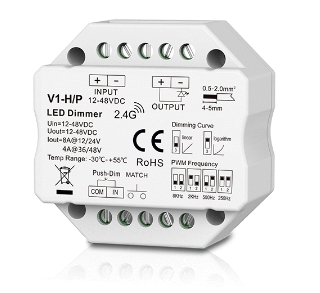

LED controller-receiver V1-H/P

LED controller-receiver V1-H/P Expand

20371

New

In stock
Quantity:
Order quantity: 1 шт

1 318,75 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
Single-channel controller-receiver for dimming and switching on/off single-color LED strip using an RF remote control or Push Dim button. Power supply voltage is 12-48VDC. Load capacity is 8A at 12/24VDC and 4A at 36/48VDC. Suitable for single and multi-zone RF remotes operating at a frequency of 2.4GHz. One receiver supports 10 remotes.
Manufacturer: SkyDance
Input Voltage, V ? 12-48V
Warranty term ? 2 years
Number of Output Channels ? 1 channel
Богдан
Богдан
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
LED controller-receiver V1-H/P

20371

In stock
Quantity: шт

1 318,75 ₴

Parameters LED controller-receiver V1-H/P

Input Voltage, V ? 12-48V
Warranty term ? 2 years
Brand ? SkyDance
Number of Output Channels ? 1 channel
Maximum Current per Channel, A/сh. ? 8.0
Data (Signal) RF:2.4GHz
Case Type ? plastic
Степень защиты IP20
Related products 19930-19935-20983-21705

Description LED controller-receiver V1-H/P

Single-channel controller-receiver for dimming and turning on/off a single-color LED strip using an RF remote or Push Dim button.
  • Power supply voltage 12-48VDC.
  • Load 8A at 12/24VDC and 4A at 36/48VDC.
  • Compatible with single and multi-zone RF remotes operating at a frequency of 2.4GHz.
  • Can operate from the remote and Push Dim button.
  • Remote control range is 30m; when using multiple receivers, the signal is transmitted from one receiver to the next.
  • One receiver supports 10 remotes.
  • Compact size allows the receiver to fit into the mounting box under the Push Dim button.
Documents LED controller-receiver V1-H/P
