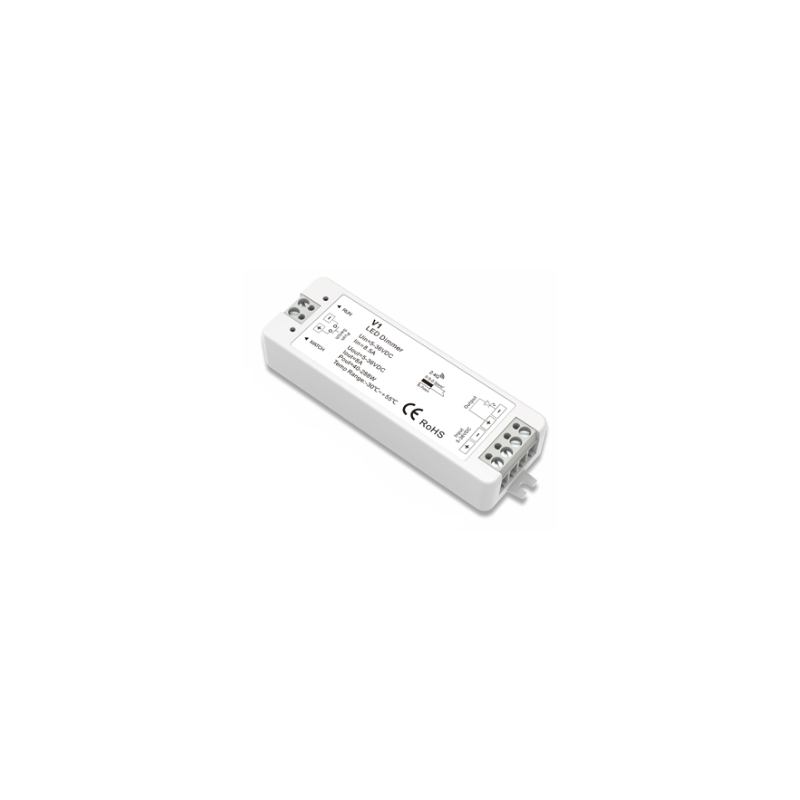

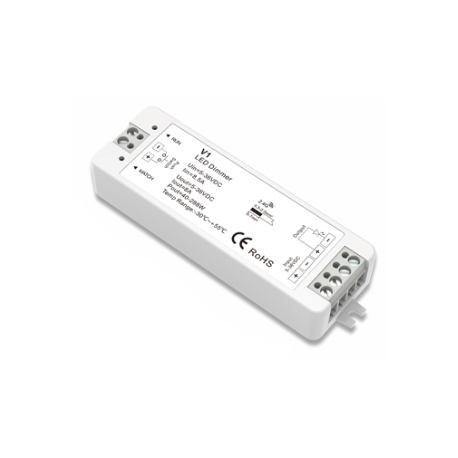

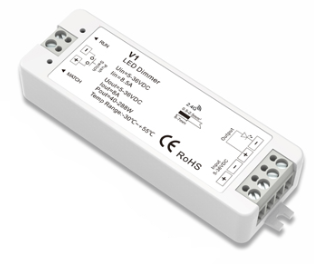

LED controller-receiver V1

LED controller-receiver V1 Expand

10595

New

In stock
Quantity:
Order quantity: 1 шт

664,65 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
Radio frequency controller receiver for switching and dimming single-color LEDs using the remote control RT1. Single-channel controller for touch panels T1, T1-1, T1-K.
Output 1 channel at 8A with a power supply voltage of 5-36V DC.
Compatible with various RF remote controls (RT1).
Ability to control using the Push Dim button.
Control range from the remote is 30m.
Size 97*33*18mm.
Manufacturer: SkyDance
Input Voltage, V ? 5-36V
Warranty term ? 2 years
Number of Output Channels ? 1 channel
Богдан
Богдан
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
LED controller-receiver V1

10595

In stock
Quantity: шт

664,65 ₴

Parameters LED controller-receiver V1

Input Voltage, V ? 5-36V
Warranty term ? 2 years
Brand ? SkyDance
Number of Output Channels ? 1 channel
Maximum Current per Channel, A/сh. ? 8.0
Data (Signal) RF:2.4GHz
Case Type ? plastic
Степень защиты IP20
Related products 19930-19935-20983-21705

Description LED controller-receiver V1

V1 Receiver Controller - a radio frequency receiver controller for switching and dimming single-color LEDs using the RT1 remote control.
Description:
  • Radio frequency dimmer for dimming single-color LEDs.
  • Output 1 channel at 8A with a power supply voltage of 5-36V DC.
  • Compatible with various RF remote controls (RT1).
  • Multiple zones can be controlled separately or synchronously with unlimited receivers in each zone.
  • Ability to control using the Push Dim button.
  • Remote control range of 30m.
  • When cascading receivers, the range increases to 100m.
  • Ability to control via a mobile app over WiFi.
  • Functions as a power repeater for unlimited power expansion.
Documents LED controller-receiver V1
