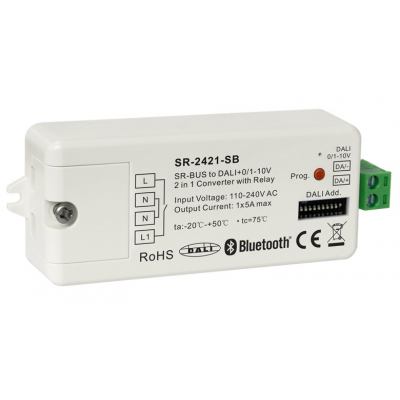

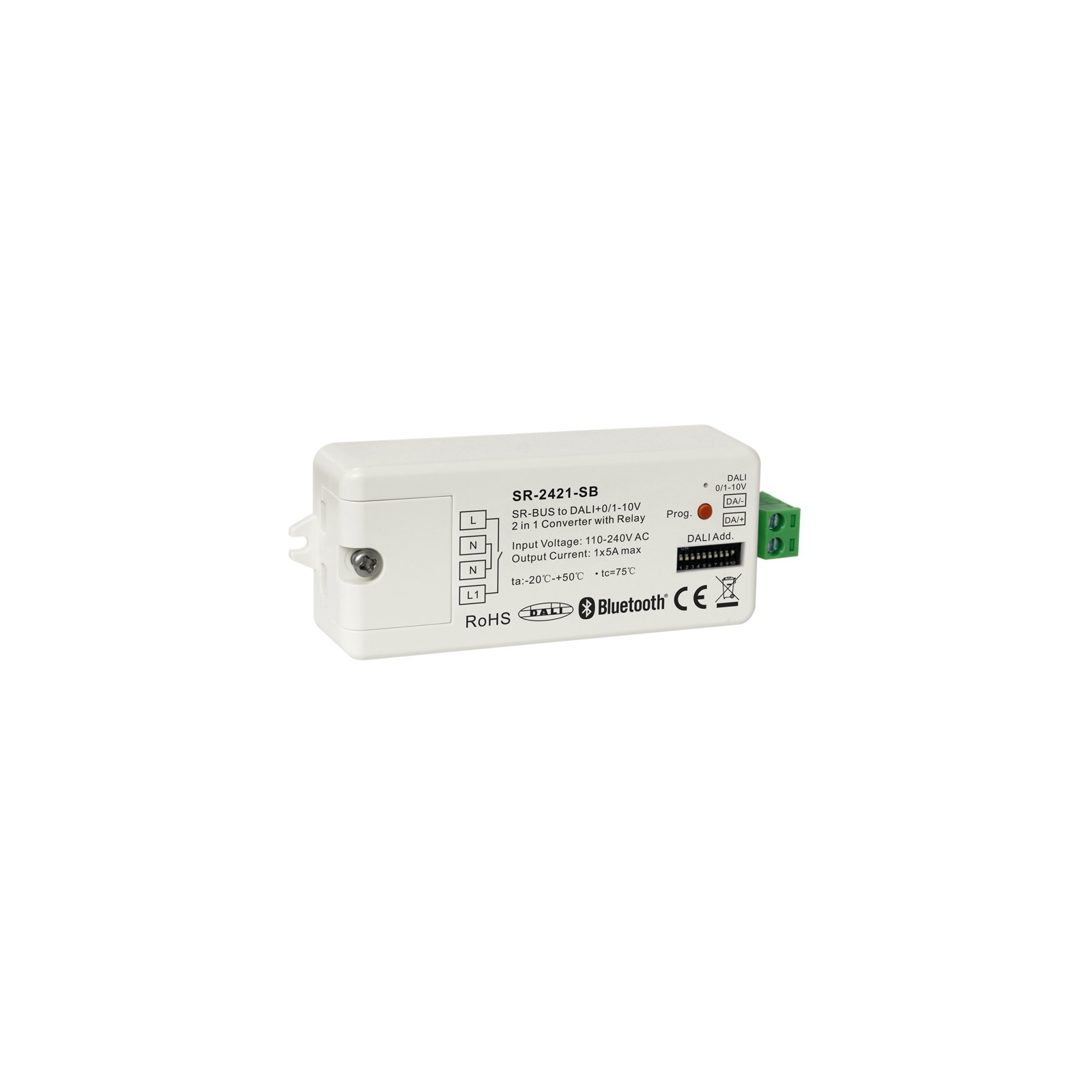

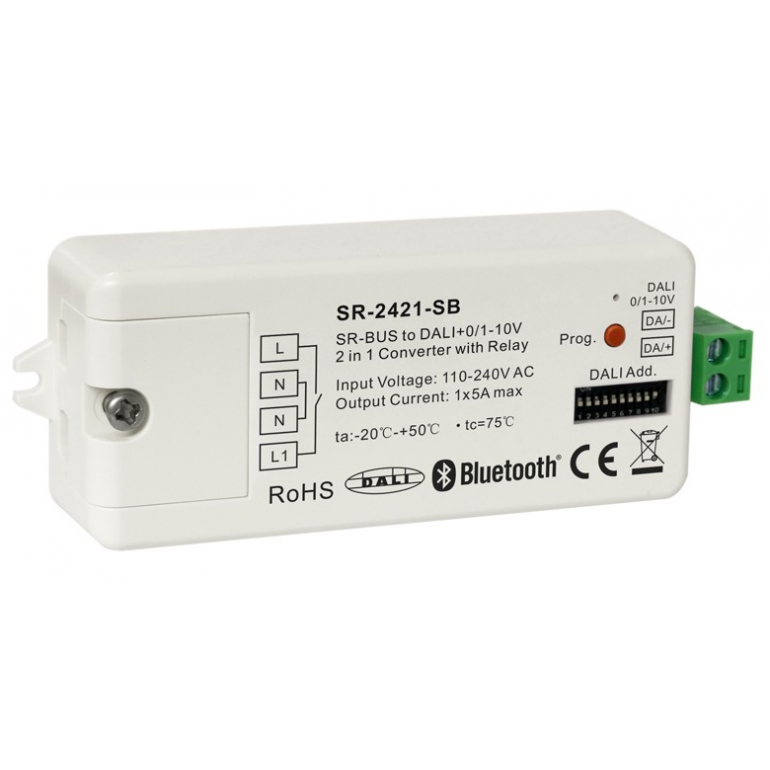

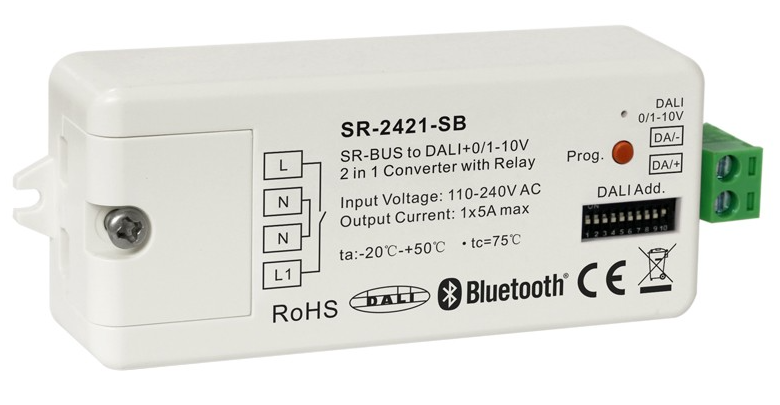

Converter-gateway SR-2421-SB (Bluetooth+RF to DALI+1-10V)

Converter-gateway SR-2421-SB (Bluetooth+RF to DALI+1-10V) Expand

16418

New

In stock
Quantity:
Order quantity: 1 шт

2 954,00 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description

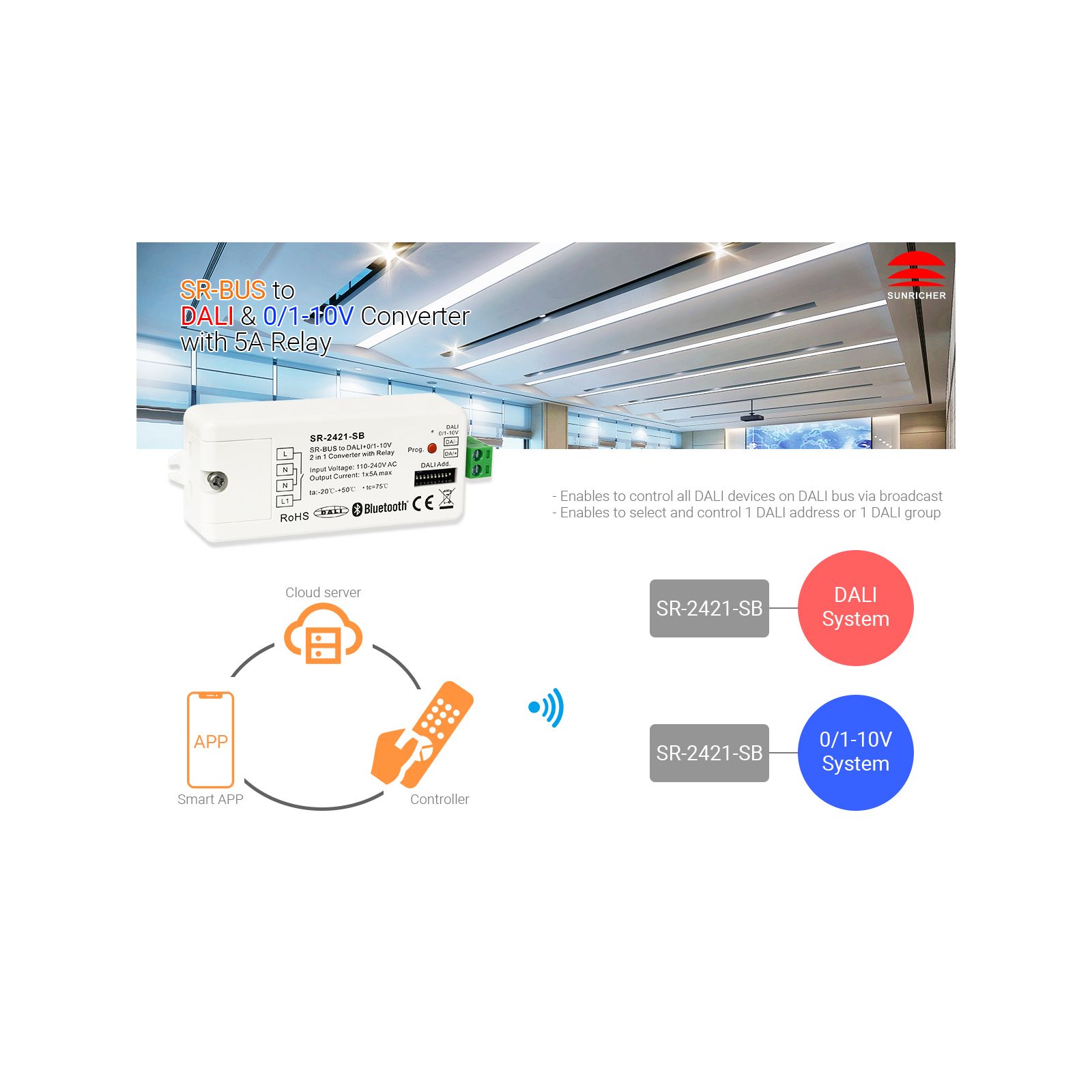

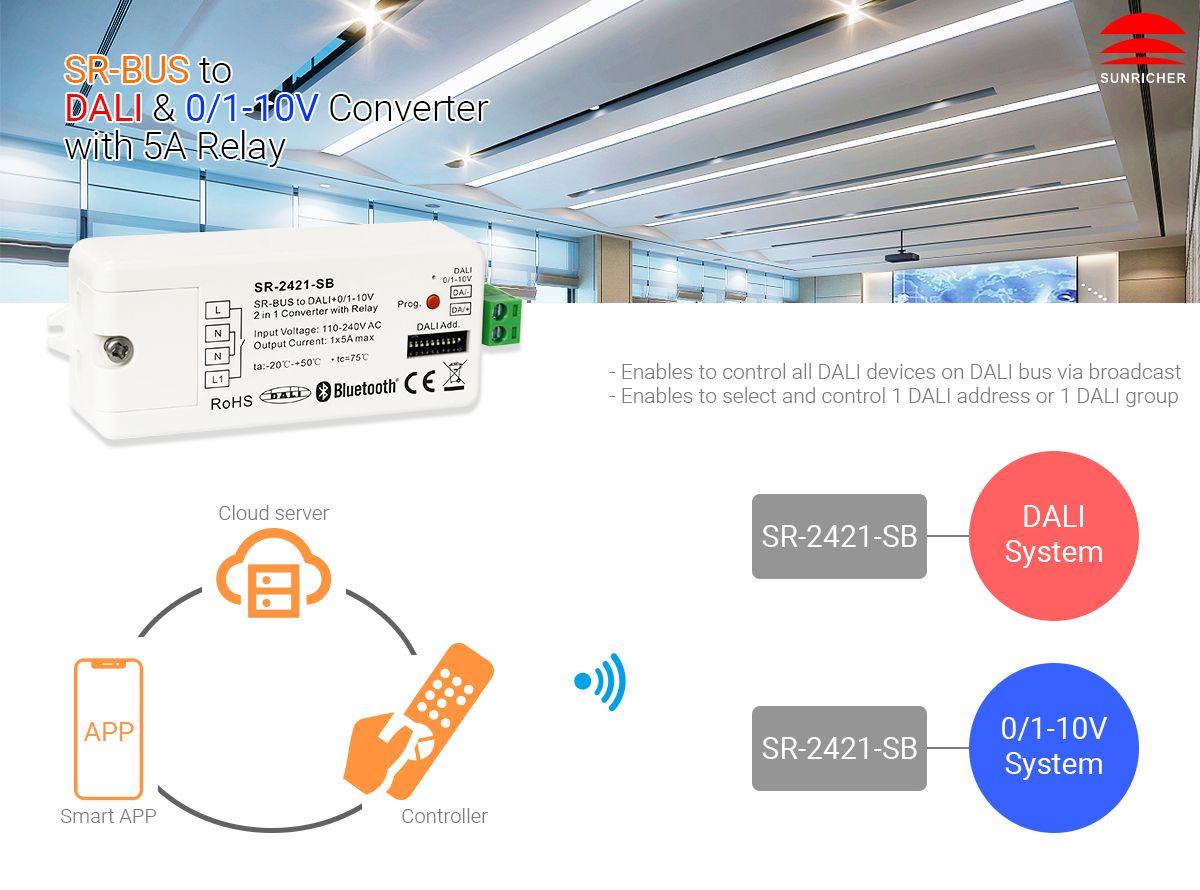

The SR-2421-SB converter is designed for remote control of devices that support the DALI or 1-10V protocol via an intelligent application and a radio frequency remote control using Bluetooth and RF.
It supports DALI protocols DT6, DT8 Tunable White, with DT8 XY coordinates, and DT8 RGBWAF control mechanisms.
Manufacturer: SUNRICHER
Input Voltage, V ? 100-240VAC
Warranty term ? 3 years
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Converter-gateway SR-2421-SB (Bluetooth+RF to DALI+1-10V)

16418

In stock
Quantity: шт

2 954,00 ₴

Parameters Converter-gateway SR-2421-SB (Bluetooth+RF to DALI+1-10V)

Input Voltage, V ? 100-240VAC
Warranty term ? 3 years
Brand ? SUNRICHER
Case Type ? plastic
Signal Conversion Type ? BT+RF to DALI+1-10V
Related products 16473-16495

Description Converter-gateway SR-2421-SB (Bluetooth+RF to DALI+1-10V)

The SR-2421-SB converter is designed for remote control of devices that support the DALI or 1-10V protocol via an intelligent app and a radio frequency remote control using Bluetooth and RF.
It supports DALI protocols DT6, DT8 Tunable White, with DT8 XY coordinates, and DT8 RGBWAF control mechanisms.
Features:
  • SR-2421-SB is a Bluetooth DALI interface and a Bluetooth 0-10V/1-10V interface that receives Bluetooth signals and can be controlled via an intelligent app and a radio frequency remote control
  • Bluetooth + RF input signal, DALI output signal to the DALI line or 0/1-10V output signal, input voltage 110-240V AC
  • It is super powerful for controlling DALI DT6, DT8 Tunable White devices, DT8 XY coordinates, DT8 RGBWAF control mechanisms and can be compatible with DALI products from other international corporations
  • The type of DALI DT6 or DT8 device is selected using a DIP switch in DALI mode
  • DALI signal or 1-10V output signal, selected by a DIP switch
  • DALI address control mode or group control mode, selected by a DIP switch
  • Simple and quick connection to the intelligent app with a single press of the Prog. button
  • Mesh network, much greater control distance, transmits the received signal to neighboring devices
  • Cloud control available for remote access, works with Amazon Alexa and Google Home
  • Built-in DALI bus power supply (50mA) to provide control current for 25 DALI control devices
  • Can control all devices on the DALI line via broadcasting
Documents Converter-gateway SR-2421-SB (Bluetooth+RF to DALI+1-10V)
