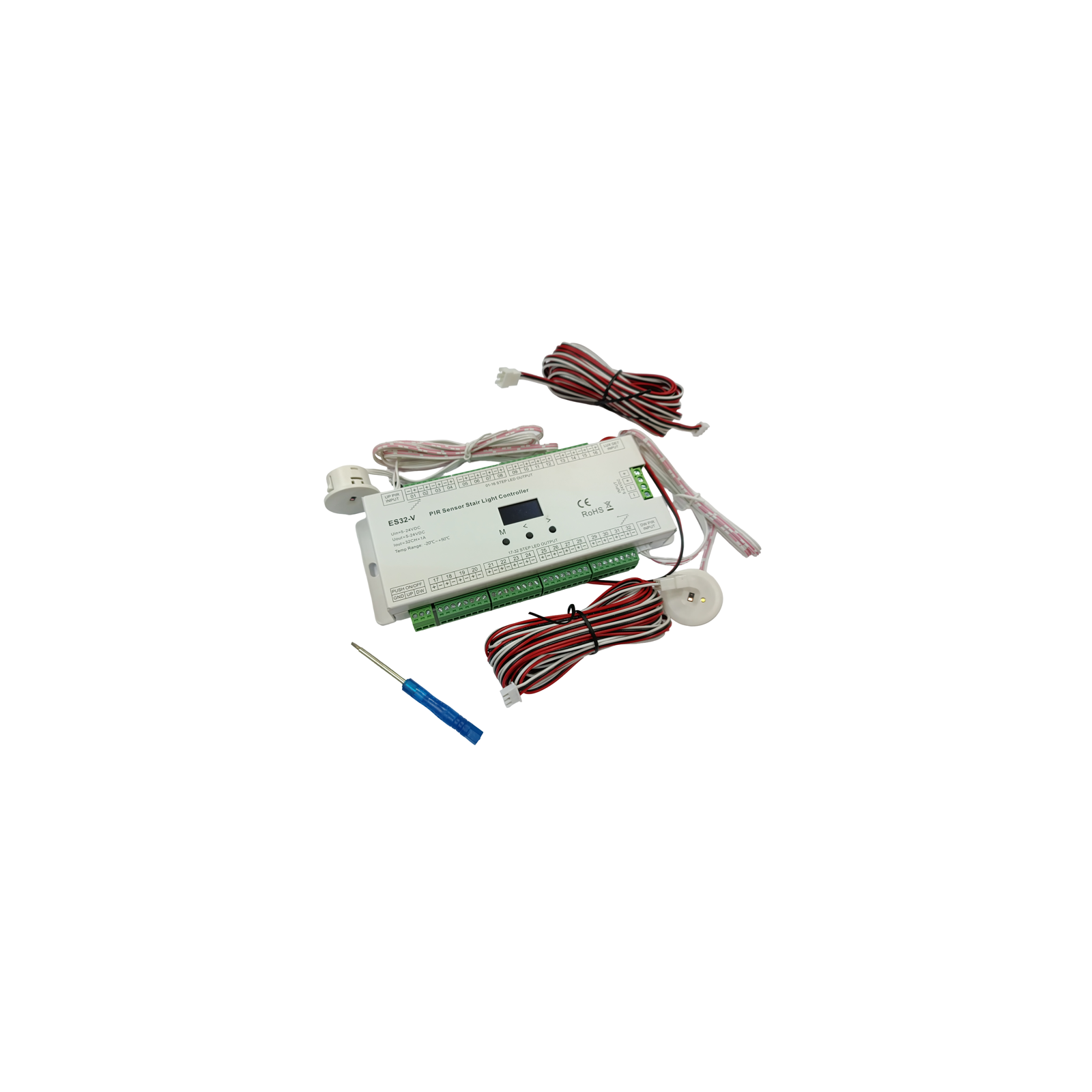

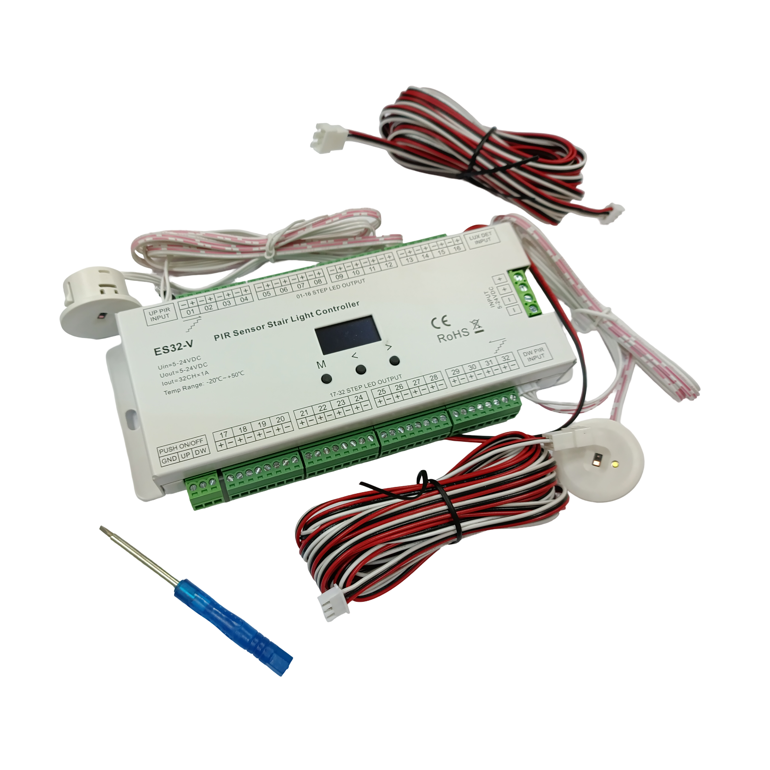

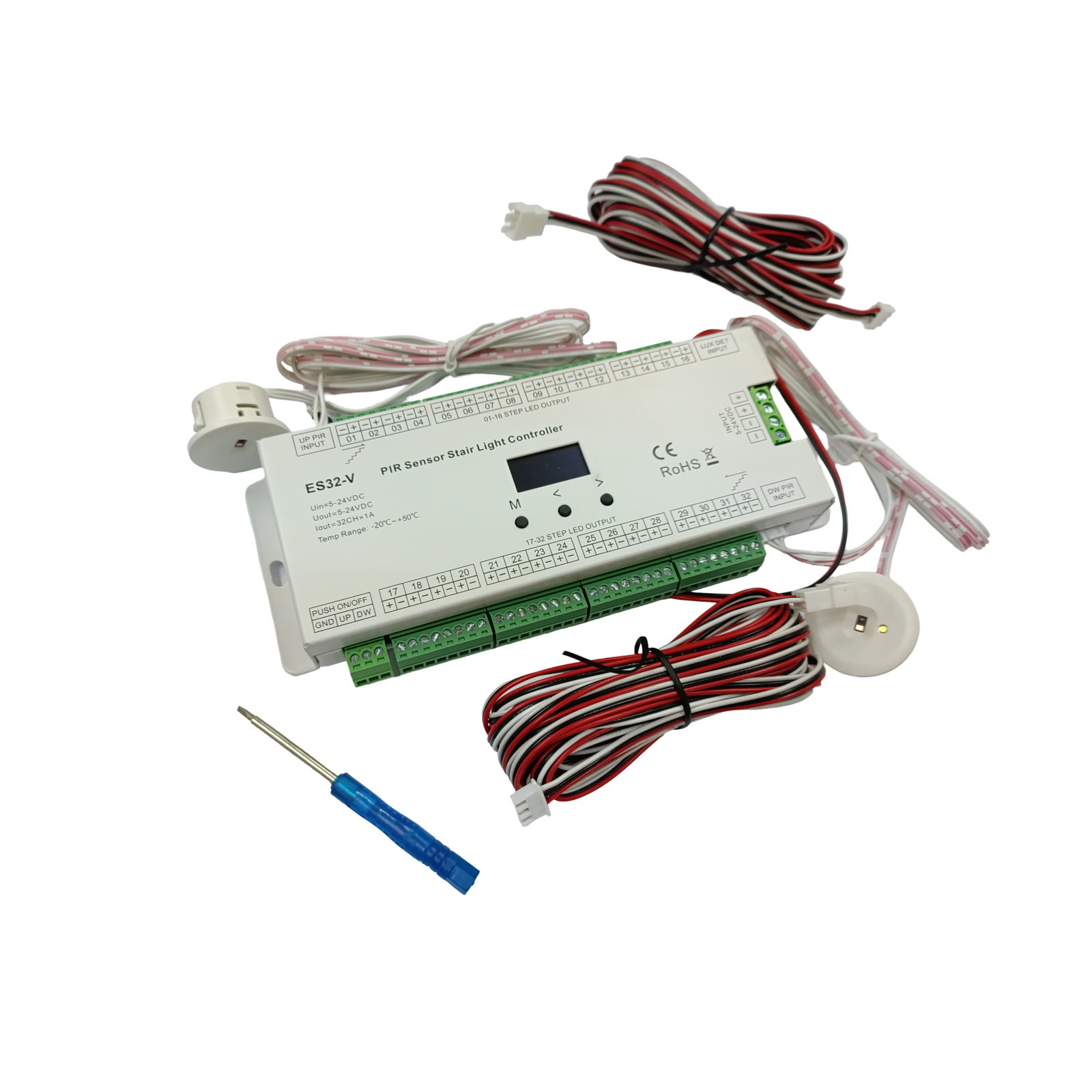

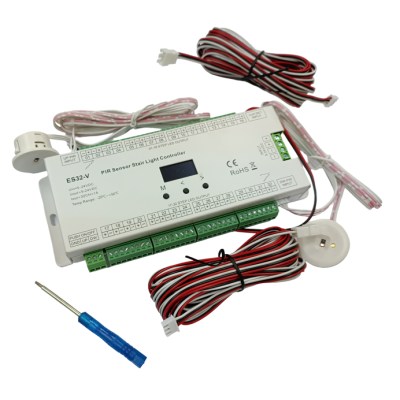

LED controller ES32-V for stair lighting with Laser Sensor Head EL-C

LED controller ES32-V for stair lighting with Laser Sensor Head EL-C Expand

22001

New

In stock
Quantity:
Order quantity: 1 шт

6 104,50 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
LED controller ES32-V - stair lighting controller with PIR sensor from SkyDance. It has 32 channels with a constant output voltage for controlling low-voltage LED strips, max. current 1A per channel. 6 operating modes are available. With a quick self-test function and short circuit protection.
Power supply voltage 5-24V.
Warranty period 5 years.
Number of output channels 32 channels.
Dimensions: 186x68x25.5mm.
Category SPI controller
Manufacturer: SkyDance
Input Voltage, V ? 5-24V
Warranty term ? 5 years
Number of Output Channels ? 32 channels
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
LED controller ES32-V for stair lighting with Laser Sensor Head EL-C

22001

In stock
Quantity: шт

6 104,50 ₴

Parameters LED controller ES32-V for stair lighting with Laser Sensor Head EL-C

Input Voltage, V ? 5-24V
Warranty term ? 5 years
Brand ? SkyDance
Number of Output Channels ? 32 channels

Description LED controller ES32-V for stair lighting with Laser Sensor Head EL-C

LED controller ES32-V  - stair lighting controller with PIR sensor from SkyDance.

Features:

  • Dual PIR sensor + dual push-button switch, 32-step stair lighting controller with daylight detection function.
  • 32 channels with constant output voltage for controlling low-voltage LED strip, max. current 1A per channel.
  • OLED display, controlled by 3 buttons.
  • 6 operating modes available: flow, chase, trail, swim, five-step, and single-step, with 1-8 levels of adjustable speed and brightness.
  • Multiple scenarios can be set for synchronization or sequential on/off.
  • Selection of fade on/off time 0-3 seconds.
  • Selection of automatic off delay time 5 seconds - 10 minutes.
  • Two push-button switches can be connected for use as manual input.
  • With quick self-test function / short circuit protection.
  • Any damaged LED channel in the 32 channels can be turned off.

Dimensions: 186x68x25.5mm.
