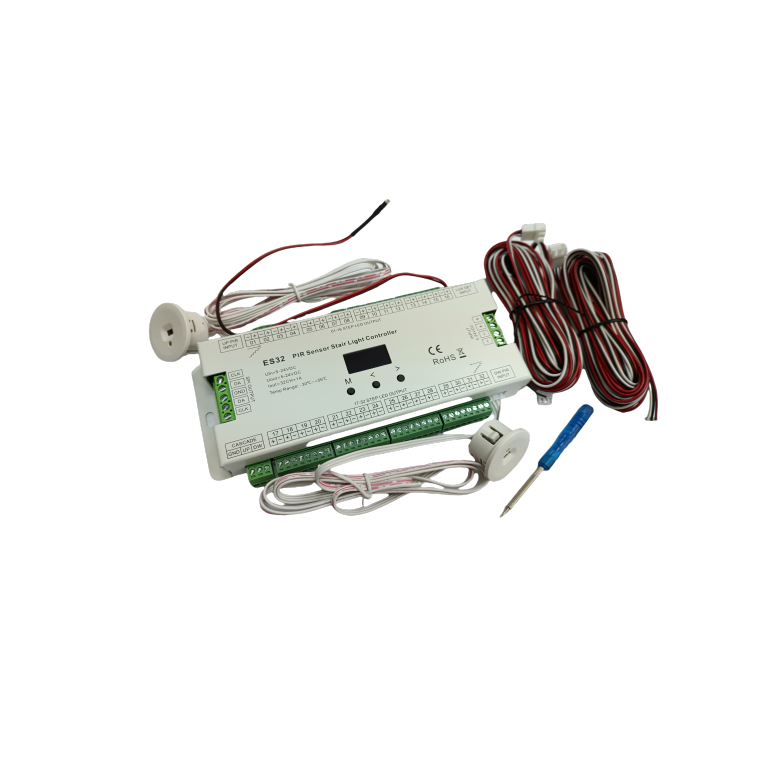

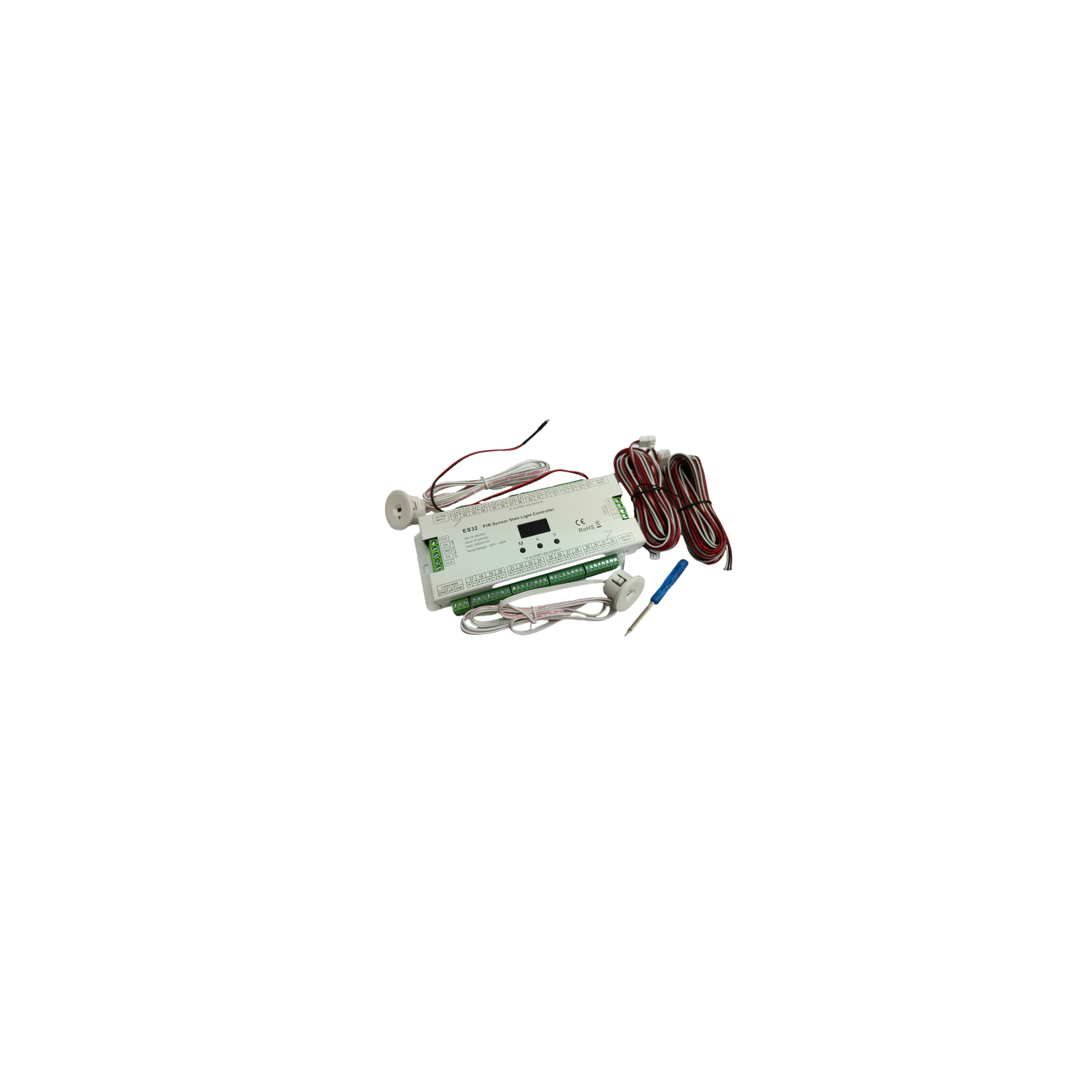

LED controller ES32 stair lighting with Laser Sensor Head EL-C от SkyDance. ✓ Цена от 6 651,80 ₴.

Short description Parameters Description Documentation Projects and news Analogues

Expand

Reference: 22000

Condition: New

In stock

Quantity:

– +

Order quantity: 1 шт

6 651,80 ₴

/ Штука

Checkout order

Need help? (consultation, payment, delivery)

Short description

LED controller ES32 - a multifunctional stair lighting controller with a PIR sensor and a daylight sensor from SkyDance. Four working lighting modes to choose from. Cascading connection of two stair lighting controllers is possible.
Output voltage 32 x (5-24)VDC.
Warranty period 5 years.
Number of output channels 32 channels.
Size: 186x68x25.5mm.

Category SPI controller

Manufacturer: SkyDance

Input Voltage, V 5-24V

Warranty term 5 years

Number of Output Channels 32 channels

All parameters

Денис

менеджер

d.mironenko@svl.com.ua

+38 067 105 43 40

Пн-Пт 9:00 - 18:00

Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide

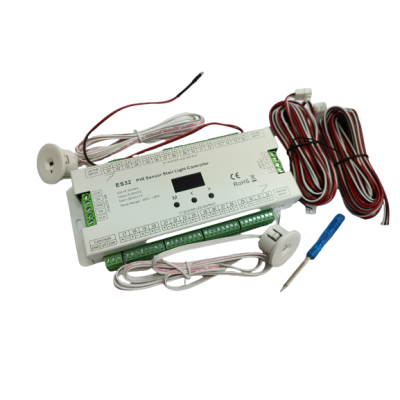

LED controller ES32 stair lighting with Laser Sensor Head EL-C

Reference: 22000

In stock

Quantity:

– +

шт

6 651,80 ₴

Parameters LED controller ES32 stair lighting with Laser Sensor Head EL-C

Input Voltage, V 5-24V

Warranty term 5 years

Brand SkyDance

Number of Output Channels 32 channels

Description LED controller ES32 stair lighting with Laser Sensor Head EL-C

LED controller ES32 - a multifunctional stair lighting controller with a PIR sensor and a daylight sensor.

Features:

32 constant voltage channels for controlling low-voltage LED strips.
Output voltage 32 x (5-24)VDC.
Maximum current 1A per channel.
2 groups of SPI (TTL) output signals, controlling 27 types of digital RGB LED strips with chips, with the ability to set the chip type and the order of R/G/B. Compatible chips: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A, GW6205, GS8206, GS8208, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.
Easy control thanks to the OLED display and 3 buttons.
Four working lighting modes to choose from.
Ability to cascade connect two stair lighting controllers.
Built-in multicolor mode, speed and brightness adjustment from 1 to 8 degrees.
The button switch can be used as an inductive signal input.
With a quick self-test function.
Any damaged LED channel out of 32 channels can be turned off.
Output power 32 x (5-24)W.
Protection degree IP20.
Warranty period 5 years.
