ORBIS-400-S

Technical Specifications of ORBIS-400-S

Round light fixture ORBIS-400-S with a diameter of 40 cm. By default - the body color is white. The power of the fixture is 140 W, the luminous flux is 16100 lm, and the luminous efficiency of the fixture is 115 lm/W.

The ORBIS-400-S LED fixture creates high-quality and uniform lighting. It can be used in rooms with high ceilings (for this purpose, we recommend using models with secondary optics).

High energy efficiency and uninterrupted operation of the fixture throughout its service life are ensured by high-quality LEDs from the American manufacturer CREE (XPG and JE2835B series), as well as the optimal operating modes for the LEDs selected by our engineers.

Color Rendering Index

The ORBIS-400-S series of fixtures has two available options for the color index:

• without CRI - for rooms and places without special color rendering requirements;
• CRI>80 - to ensure good color rendering quality of surrounding objects (natural skin color, food, furniture, and other interior items).

Color Temperature

This series of ORBIS fixtures allows for the selection of the color temperature of the light:

• warm light (3000K);
• neutral light (4000K);
• daylight (5000K).

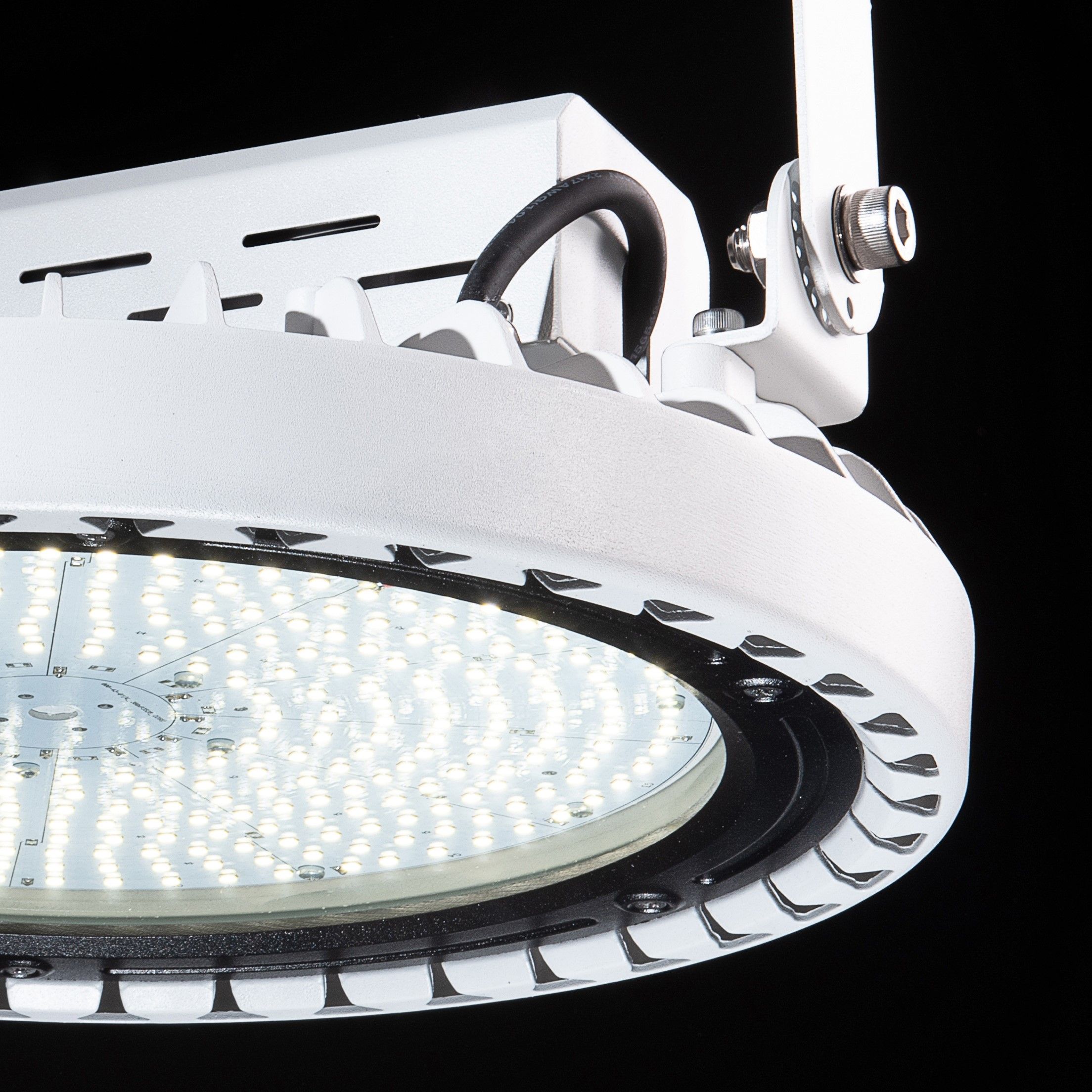

Design of ORBIS-400-S

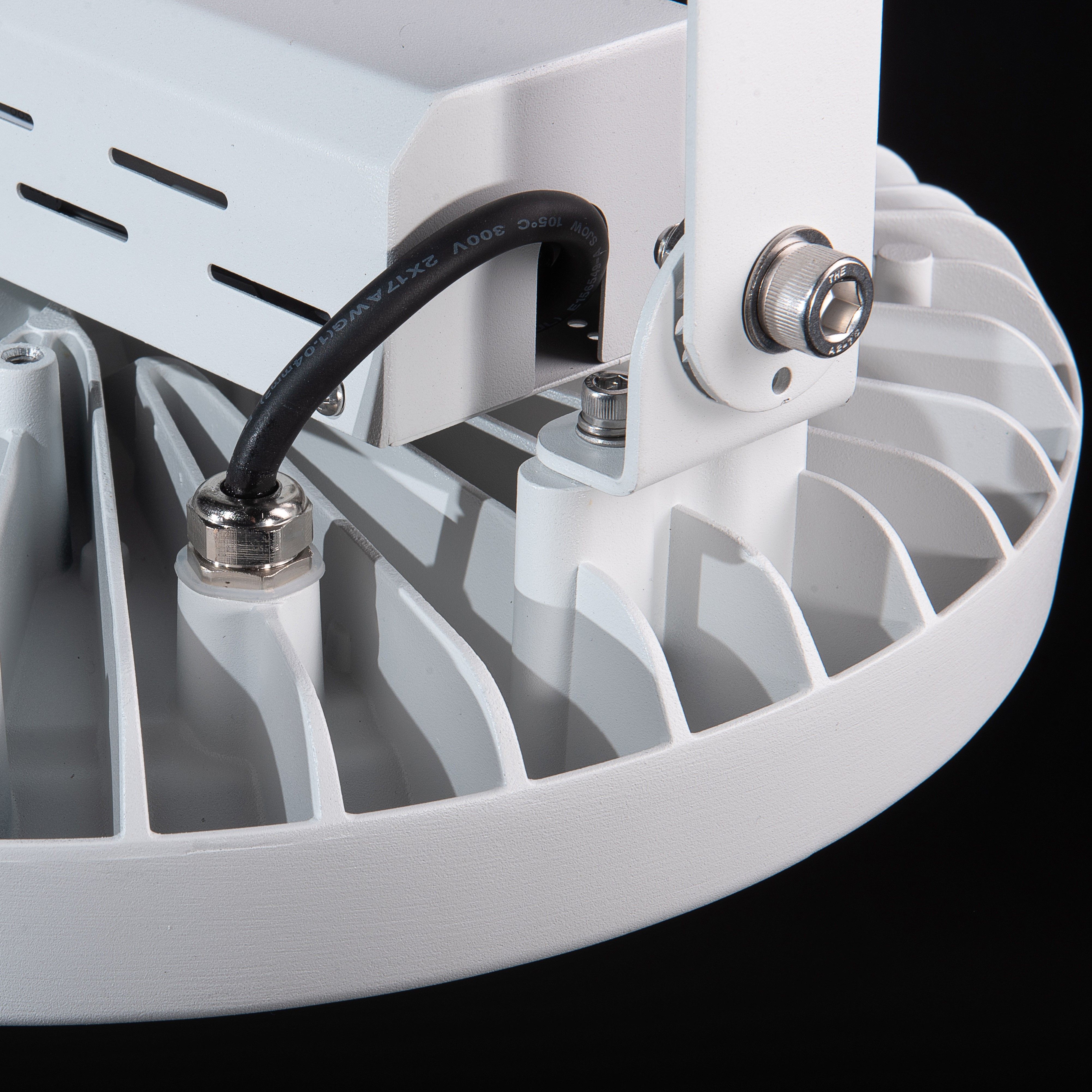

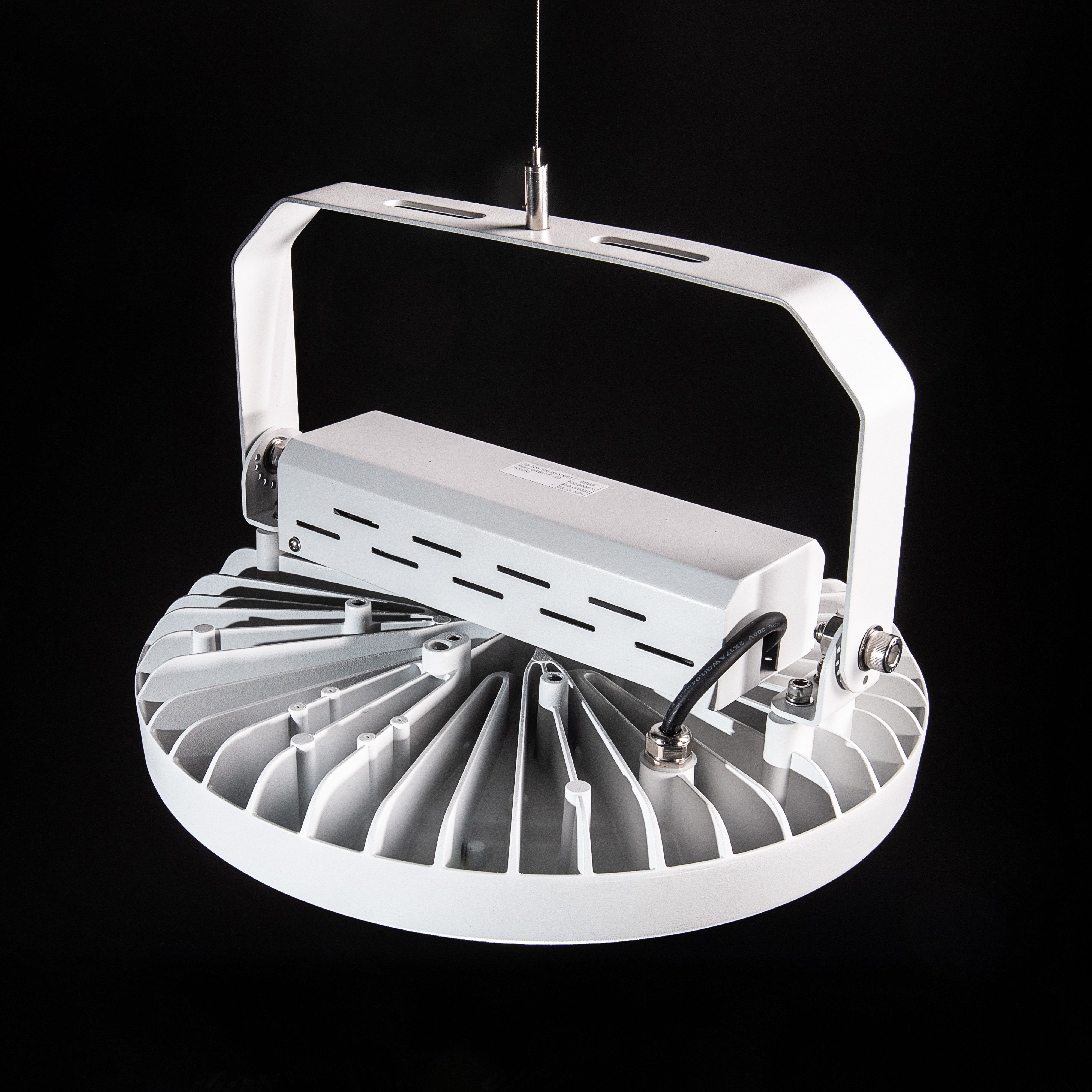

The aluminum housing provides good heat dissipation for the electrical components of the fixture and protects them from moisture and dust (IP65). The power supply with a high degree of protection is additionally covered by a metal casing.

The materials used in the production of the fixture are resistant to ultraviolet radiation and atmospheric phenomena. The LED board is protected from environmental influences by a polycarbonate screen.

The fixture can be equipped with high-quality secondary optics with a wide range of available beam angles (from 5 to 120 degrees).

To enhance energy efficiency and availability, when using additional focusing lenses, the diffuser in the fixture may not be installed, as its functions of light distribution, dust and moisture protection, and mechanical damage protection can be taken over by an acrylic or polycarbonate lens.

The lenses used in the production of the fixture also perform a protective function for vision, as they reduce the luminous intensity of the LEDs and decrease the glare effect.

Installation

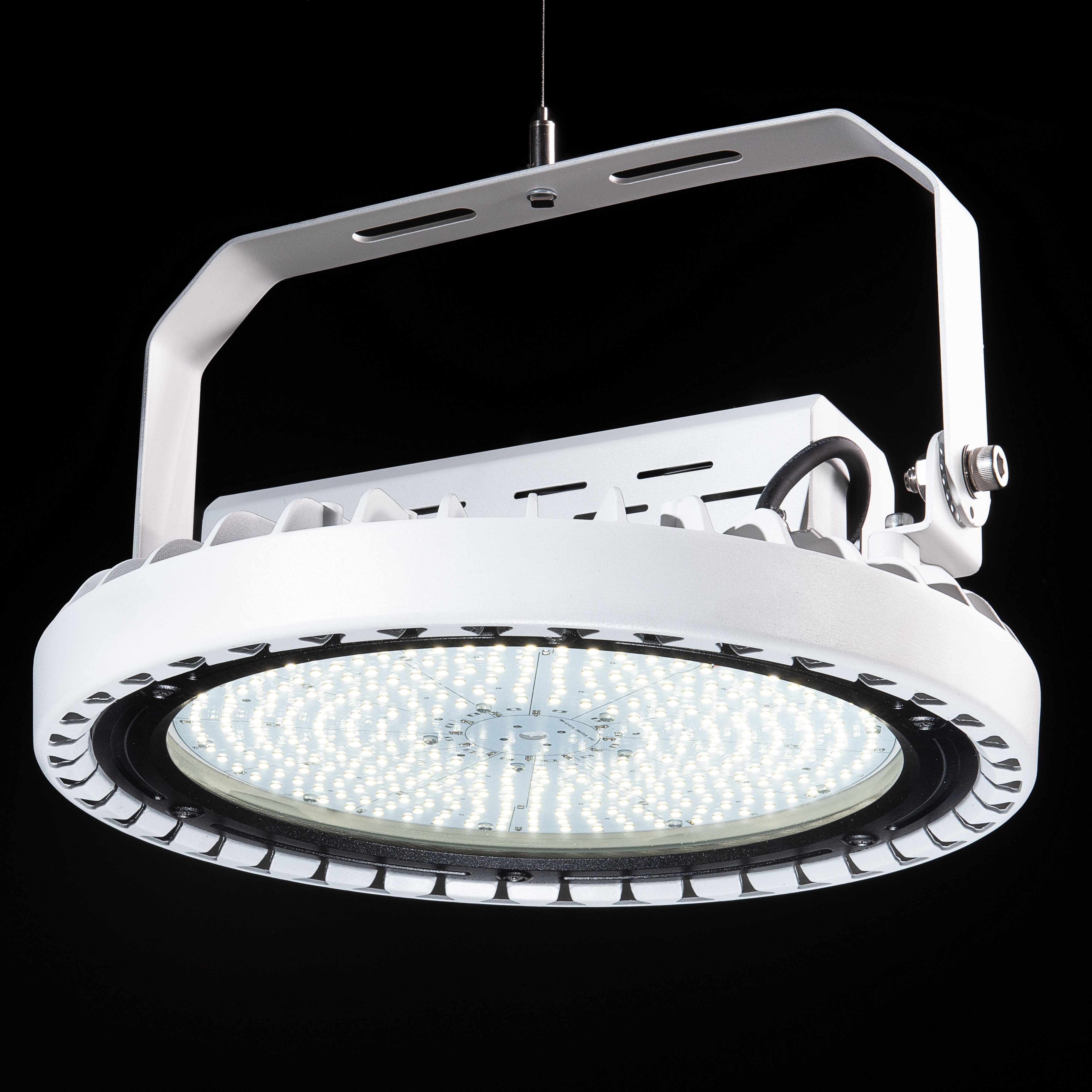

The ORBIS-400-S fixture is equipped with a complete mounting bracket that allows for adjusting the direction of the fixture.

It can also be installed on a pole for lighting parking lots, highways, driveways, and areas.
