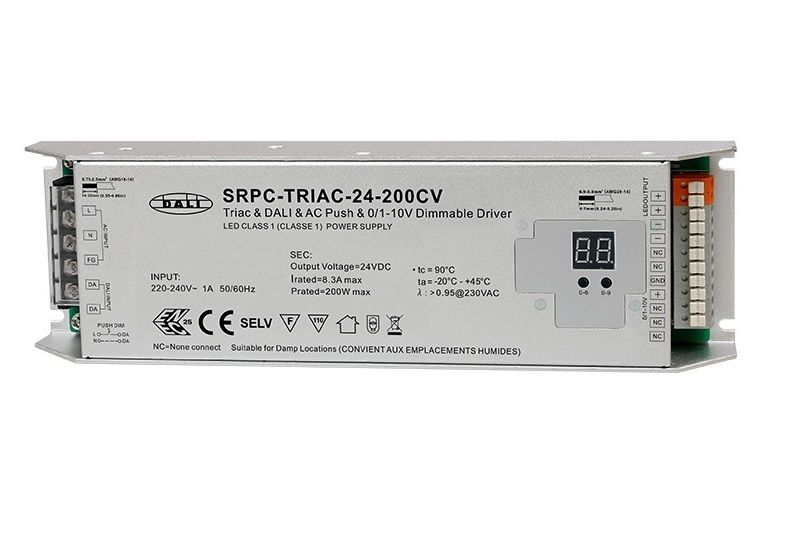

Dimmer SRPC-TRIAC-24-200CV (DALI, PUSH, TRIAC, 0/1-10V)

Dimmer SRPC-TRIAC-24-200CV (DALI, PUSH, TRIAC, 0/1-10V) Expand

15150

New

In stock
Quantity:
Order quantity: 1 шт

5 291,68 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
Universal dimmable LED driver for single-color LED devices with built-in DALI/PUSH+TRIAC+0/1-10V interfaces. One or two parallel output channels with a maximum of 8.32A at 24VDC. Suitable for single-color LED devices. Metal housing. Overload, short circuit, and overheating protection. Size 240*32*76 mm. 5-year warranty.
Category DALI driver
Manufacturer: SUNRICHER
Input Voltage, V ? 220-240VAC
Warranty term ? 5 years
Power Consumption, W ? 200
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Dimmer SRPC-TRIAC-24-200CV (DALI, PUSH, TRIAC, 0/1-10V)

15150

In stock
Quantity: шт

5 291,68 ₴

Parameters Dimmer SRPC-TRIAC-24-200CV (DALI, PUSH, TRIAC, 0/1-10V)

Input Voltage, V ? 220-240VAC
Warranty term ? 5 years
Power Consumption, W ? 200
Brand ? SUNRICHER
Case Type ? metal
Степень защиты IP20
Output Load Type ? CV напряжение
DALI addresses ? 1 address

Description Dimmer SRPC-TRIAC-24-200CV (DALI, PUSH, TRIAC, 0/1-10V)

Universal dimmable LED driver for single-color LED devices with built-in DALI/PUSH+TRIAC+0/1-10V interfaces. One or two parallel output channels with a maximum of 8.32A at 24VDC.
Description:
  • Suitable for single-color LED devices.
  • Universal dimming interface DALI/PUSH+TRIAC+0/1-10V.
  • Power supply voltage 220-240VDC.
  • Output 24VDC 1x4, 2A or 2x4, 2A with a maximum load of 8.32A.
  • Metal housing.
  • One DALI address can be set manually or automatically using the controller master.
  • Protection against overload, short circuit, and overheating.
  • Size 240*32*76 mm.
  • 5-year warranty.
