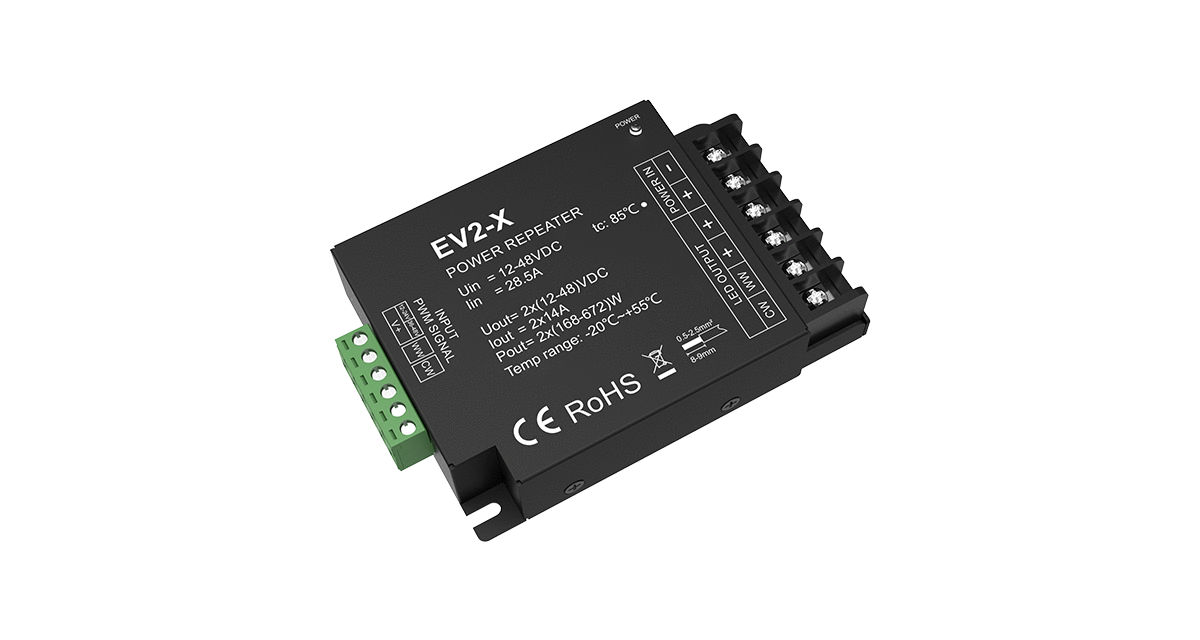

EV2-X Repeater

EV2-X Repeater Expand

22571

New

Not available

0,00 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
The EV2-X constant voltage (12-48 V) LED repeater for LED equipment has 2 channels, maximum output 14A per channel. The repeater is designed to increase the permissible power of the lighting equipment connected to the controller.
Category PWM repeaters
Manufacturer: SkyDance
Input Voltage, V ? 12-48V
Warranty term ? 2 years
Number of Output Channels ? 2 channels
Ігор
Ігор
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
EV2-X Repeater

22571

Not available

0,00 ₴

Parameters EV2-X Repeater

Input Voltage, V ? 12-48V
Warranty term ? 2 years
Brand ? SkyDance
Number of Output Channels ? 2 channels
Maximum Current per Channel, A/сh. ? 14.0
Степень защиты IP20

Description EV2-X Repeater

The EV2-X constant voltage (12-48 V) LED repeater for LED equipment has 2 channels, maximum output 14A per channel. The repeater is designed to increase the permissible power of the lighting equipment connected to the controller.
Features:
The amplifiers are connected to the controller output, thus it is possible to build a whole cascade with repeaters connected to the controller and power a significant amount of equipment from one control device/controller. Thus, it is possible to increase the power of lighting equipment connected to one control device dozens of times
  • Operating temperature: -20ºC - +50ºC
  • Input voltage: 12-48V
  • Output voltage: 12-48V
  • Output: 2 PWM channels
  • Output current (per channel): 10A (total for two channels 28.5 A)
  • Output power 2x(168-672)W
  • Load type: LED monochrome and SST devices
  • Dimensions: 120*90*30 mm
  • Net weight: 277 g
Documents EV2-X Repeater
