SR-3002 led-repeater

SR-3002 led-repeater Expand

4155

New

In stock
Quantity:
Order quantity: 1 шт

1 864,90 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
The single-channel LED repeater SR-3003 for constant voltage (12-24V) for LED equipment has a maximum output of 24A. The repeater is designed to increase the allowable power of the lighting equipment connected to the controller.
Output power of the controller: 384-1152W
Output voltage: 4 channels/8A per channel
Dimensions: 168*58*28 mm
Category PWM repeaters
Manufacturer: SUNRICHER
Input Voltage, V ? 12V/24V
Warranty term ? 3 years
Number of Output Channels ? 4 channels
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide

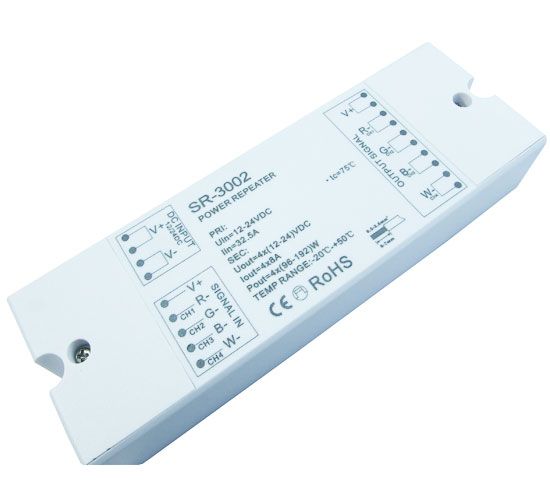

SR-3002 led-repeater

4155

In stock
Quantity: шт

1 864,90 ₴

Parameters SR-3002 led-repeater

Input Voltage, V ? 12V/24V
Warranty term ? 3 years
Brand ? SUNRICHER
Number of Output Channels ? 4 channels
Maximum Current per Channel, A/сh. ? 8.0
Степень защиты IP20

Description SR-3002 led-repeater

The SR-3002 constant voltage (12-36 V) for LED equipment has 4 channels, with a maximum output of 8A per channel. The repeater is designed to increase the allowable power of the lighting equipment connected to the controller.
In this case, 80-90% of the allowable power of the lighting equipment is connected to the controller, and repeaters with their own power sources are connected in parallel, with all subsequent lighting equipment connected to the repeaters.
This allows for the construction of an entire cascade of repeaters connected to the controller, enabling a significant amount of equipment to be powered from a single control device/controller. Thus, the power of the lighting equipment connected to one control device can be increased by dozens of times.

SPECIFICATIONS

  • Operating temperature: -20ºC - +50ºC
  • Input voltage: 12-36V
  • Output voltage: 12-36V
  • Output: 4 channels/8A per channel
  • Output power (per channel): 96W at 12V, 192W at 24V
  • Load type: standard LED (0.4-0.1 W)
  • Size: 168*58*28 mm

Documents SR-3002 led-repeater
