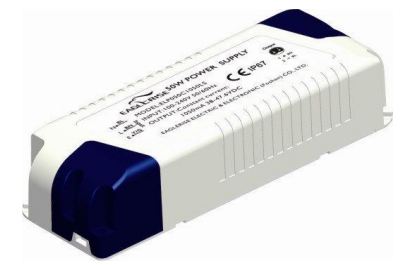

EIP040C1400LH

EIP040C1400LH Expand

7168

New

In stock
Quantity:
Order quantity: 1 шт

191,25 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description

Power supply EIP040C1400LH with high-quality current stabilization (CC) from the manufacturer EAGLERISE. It is used to power LED equipment by converting alternating current to direct current.
Output voltage 19 ... 29V, output current 1.40A.
Power - 40W.
Housing material - plastic.

Safety standards EN61347-2-13, EN60598-1, EN60598-2-6.

Size 157*54*36 mm.

Manufacturer: EAGLERISE
Warranty term ? 2 years
Power Consumption, W ? 40
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
EIP040C1400LH

7168

In stock
Quantity: шт

191,25 ₴

Parameters EIP040C1400LH

Warranty term ? 2 years
Power Consumption, W ? 40
Brand ? EAGLERISE
Case Type ? plastic
Степень защиты IP20
Output Current, A ? 1.4
Output Voltage Range, V ? 19 ... 29
Output Voltage (min), V ? 19
Output Voltage (max), V ? 29

Description EIP040C1400LH

The EIP040C1400LH power supply with high-quality current stabilization (CC) from the manufacturer EAGLERISE is used to power LED equipment (LED strips / neon / control controllers, etc.). It converts the household AC power into DC.
When installing the power supply, it is necessary to ensure heat exchange with the environment.
Installation in a closed/insulated space is not allowed.

Advantages of this power supply unit:

  • Compact size, ease of installation
  • Output current stabilization
  • Universal AC voltage input
  • Fully isolated plastic housing
  • Insulation class II, no grounding
  • Environmental protection class IP 20
  • High efficiency ratings
  • Overload/short circuit protection
  • Natural cooling

Operating temperature: -10 ... +50 °C.
Weight:
Size: 157*54*36 mm.
Number of units in 1 box:

Safety standards EN 61347-1; EN61347-2-13, EN60598-1; EN60598-2-6.
