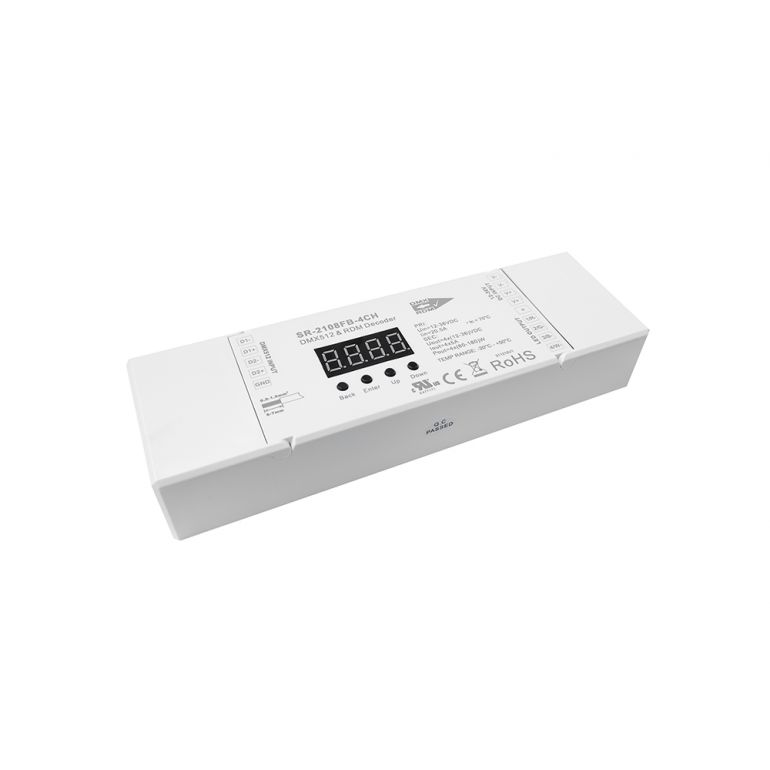

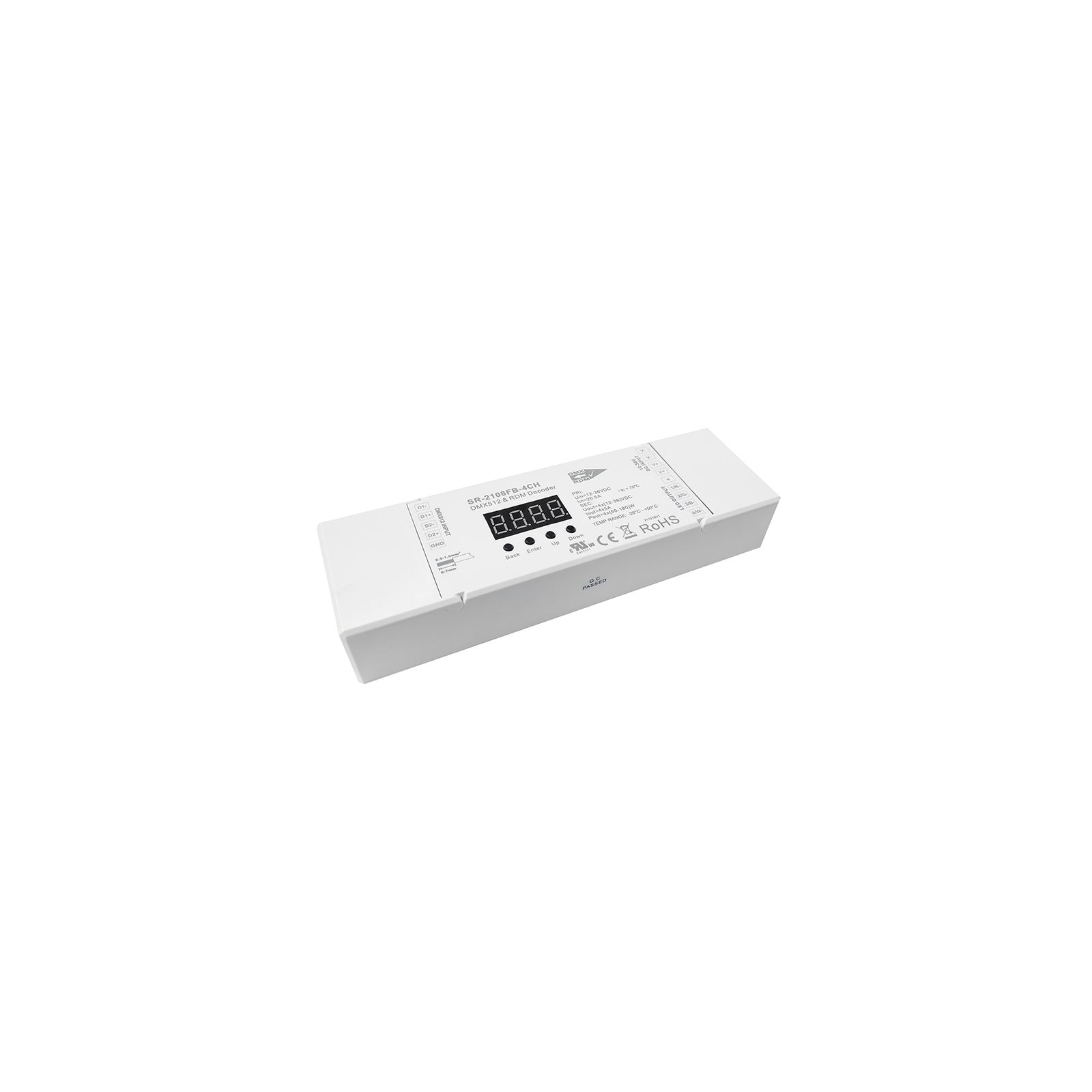

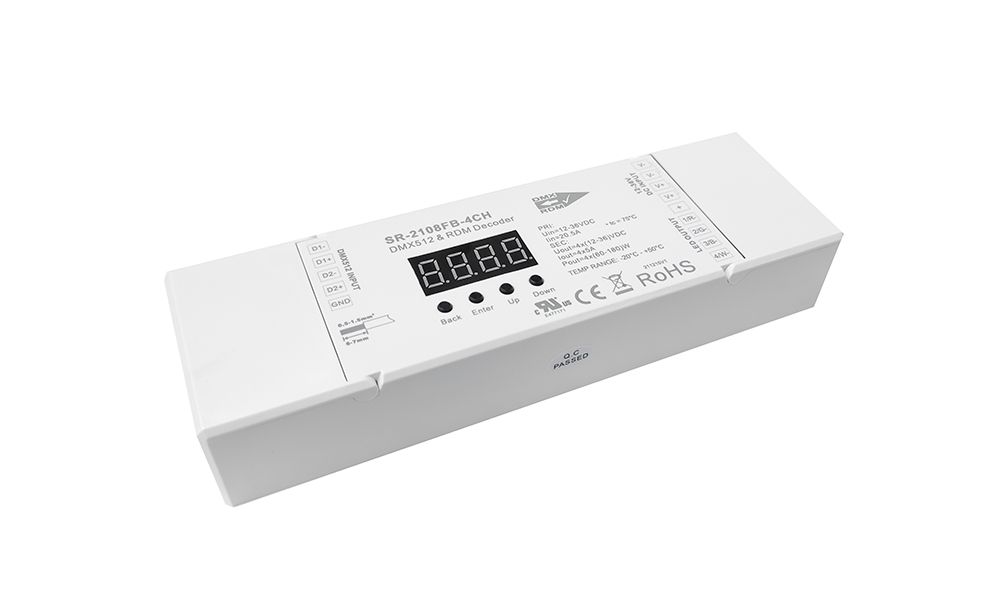

Decoder SR-2108FB -4CH (DMX&RDM/Master)

Decoder SR-2108FB -4CH (DMX&RDM/Master) Expand

18037

New

In stock
Quantity:
Order quantity: 1 шт

3 196,23 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
SR-2108FB-4CH (DMX&RDM/Master) is a universal controller that operates using the wired protocol DMX512(1990), DMX512-A, as well as RDM v. 1.0. The controller's outstanding capability is that it can be a master (32 built-in programs). It is designed for changing the color and brightness of RGB/W strips. This is a four-channel controller rated at 20A (4 channels of 5A) for connecting LED strips.
Manufacturer: SUNRICHER
Input Voltage, V ? 12-36V
Warranty term ? 3 years
Number of Output Channels ? 4 channels
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Decoder SR-2108FB -4CH (DMX&RDM/Master)

18037

In stock
Quantity: шт

3 196,23 ₴

Parameters Decoder SR-2108FB -4CH (DMX&RDM/Master)

Input Voltage, V ? 12-36V
Warranty term ? 3 years
Brand ? SUNRICHER
Number of Output Channels ? 4 channels
Case Type ? plastic

Description Decoder SR-2108FB -4CH (DMX&RDM/Master)

SR-2108FB is a universal controller that operates using the wired protocol DMX512 (1990), DMX512-A, as well as RDM v. 1.0.
The controller's outstanding capability is that it can act as a master (32 built-in programs). It can be used to control a bi-color strip.
The bidirectional communication of the RDM protocol allows the DMX master device to find, query, and set addresses for DMX controllers. On the controller's screen, you can set all the various properties of the controller - PWM signal frequency from 500Hz to 30kHz (default value is 1kHz), PWM signal resolution of 8 or 16 bits, the controller address, as well as one of the DMX protocols.
On the controller's screen, you can select the number of active addresses - from 1 to 4 (RGB or RGBW, CCT LED strips)
Compatible with all DMX master devices produced by manufacturers worldwide.
This is a four-channel controller rated at 20A (4 channels of 5A) for connecting LED strips in the range of 12V to 36V.
This device for transmitting the DMX signal uses standard terminal blocks with height adjustment via a screw.
The maximum power of the connected strip is 240W at 12V, 480W at 24V.
The warranty period is 5 years.
Documents Decoder SR-2108FB -4CH (DMX&RDM/Master)
