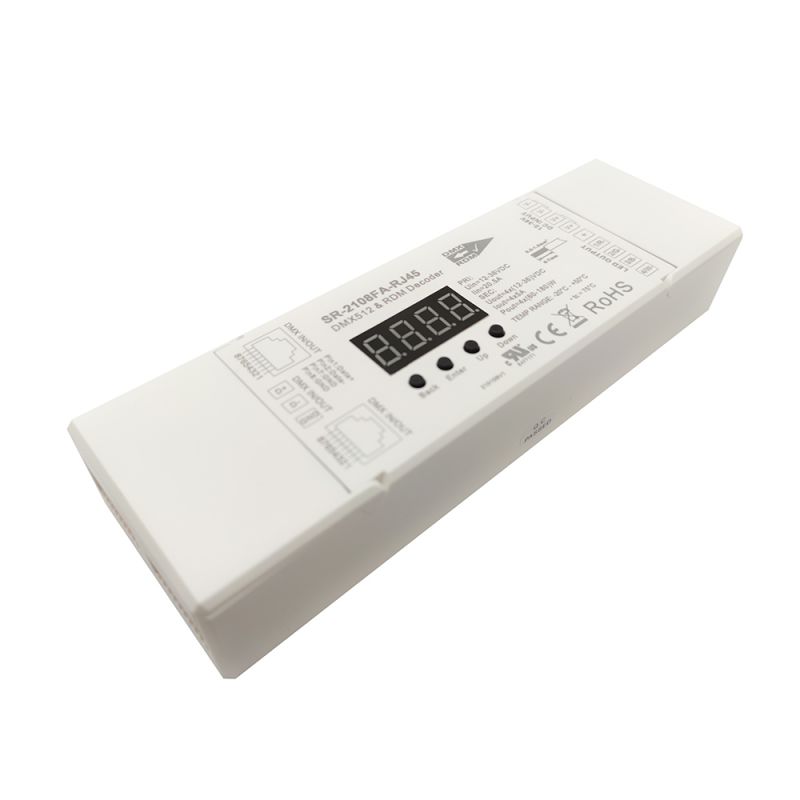

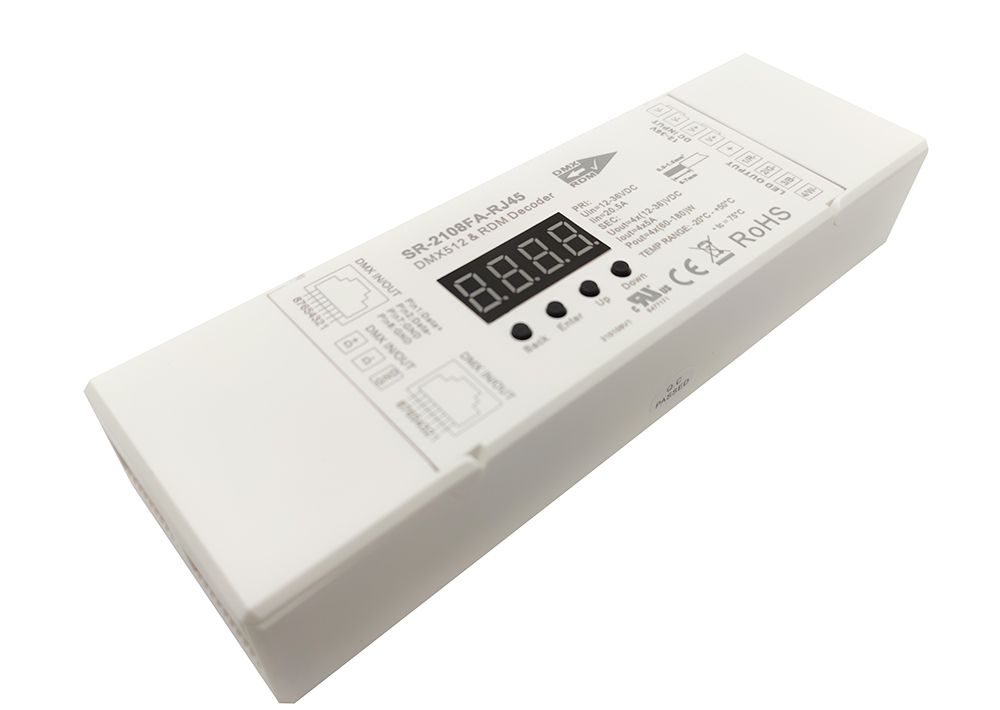

Decoder SR-2108FA-RJ45 -4CH (DMX&RDM)

Decoder SR-2108FA-RJ45 -4CH (DMX&RDM) Expand

15494

New

In stock
Quantity:
Order quantity: 1 шт

3 015,19 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
DMX signal decoder to PWM for dimming all types of LED strips, depending on the selected mode. RDM function for automatic addressing. 4 output channels 4x5A at 12-36 VDC. PWM output channels 4x5A. The decoder is equipped with standard DMX connection terminals and an RJ45 connector, allowing easy connection to other DMX devices. Power supply voltage 12-36 VDC.
Manufacturer: SUNRICHER
Input Voltage, V ? 12-36V
Warranty term ? 3 years
Number of Output Channels ? 4 channels
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Decoder SR-2108FA-RJ45 -4CH (DMX&RDM)

15494

In stock
Quantity: шт

3 015,19 ₴

Parameters Decoder SR-2108FA-RJ45 -4CH (DMX&RDM)

Input Voltage, V ? 12-36V
Warranty term ? 3 years
Brand ? SUNRICHER
Number of Output Channels ? 4 channels
Case Type ? plastic
Related products 14064-14216-16911-18816

Description Decoder SR-2108FA-RJ45 -4CH (DMX&RDM)

DMX signal decoder to PWM for dimming all types of LED strips, depending on the selected mode. RDM function for automatic addressing. 4 output channels 4x5A at 12-36 VDC.
Description:
  • Digital display showing the DMX address and operating modes of the decoder.
  • The RDM function provides communication with the master controller for automatic addressing of the decoder using the controller.
  • Simply connect all devices to the master controller, and all devices will be automatically sent and connected.
  • If using a controller/panel without RDM function, the DMX address of the decoder can be set manually using the buttons on the decoder panel.
  • PWM output channels 4x5A. You can select the required mode from 1 to 4 channels (1-for white strips, 2-CCT strips, 3-RGB, 4-RGBW).
  • You can adjust the frequency (500Hz-30kHz) and resolution (8-16Bit) of the PWM to improve light quality and eliminate flicker.
  • The dimming curve can be customized to your preferences (coefficient from 0 to 99).
  • The decoder is equipped with standard DMX connection terminals and an RJ45 connector, allowing easy connection to other DMX devices.
  • Power supply voltage 12-36 VDC.
Documents Decoder SR-2108FA-RJ45 -4CH (DMX&RDM)
