Short description

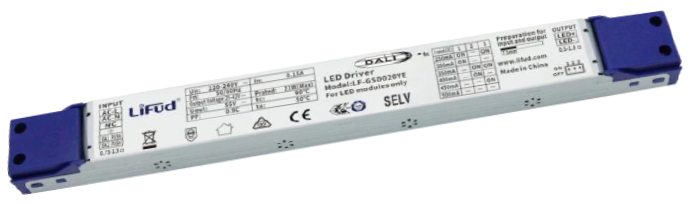

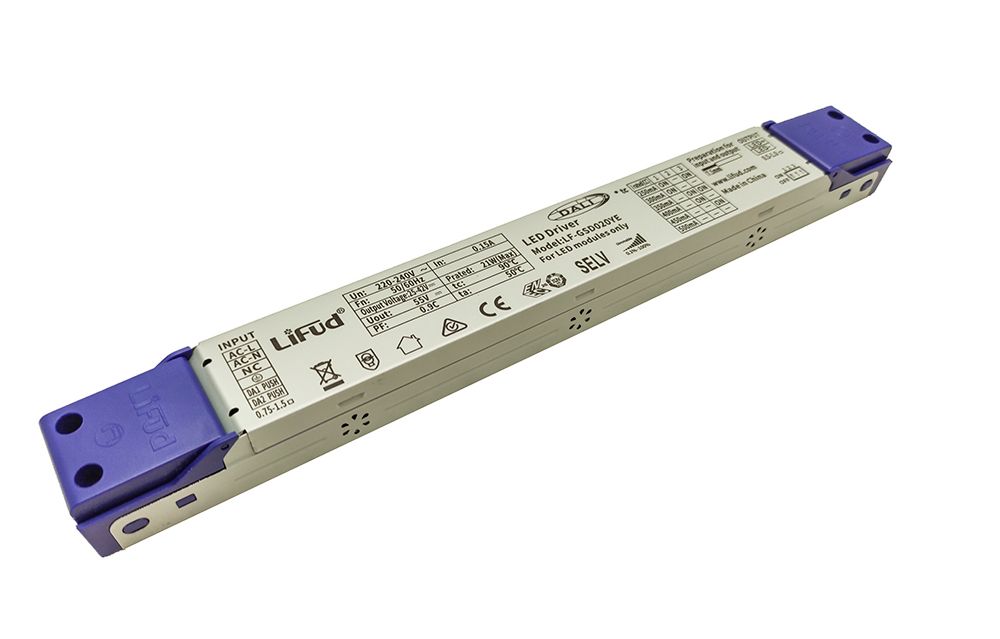

Power supply LF-GSD020YE with high-quality current stabilization (CC) from the manufacturer LIFUD. It is used to provide power to LED equipment by converting alternating current to direct current.
Output voltage 25...42V, output current 0.25-0.50A.
Power - 20W.
Housing material - metal.

Safety standard EN 61347-2-13: 2014/A1: 2017.

Size 375*275*280 mm.

Category DALI driver
Manufacturer: LIFUD
Input Voltage, V ? 220-240VAC
Warranty term ? 5 years
Power Consumption, W ? 20
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
LF-GSD020YE

17229

In stock
Quantity: шт

850,00 ₴

Parameters LF-GSD020YE

Input Voltage, V ? 220-240VAC
Warranty term ? 5 years
Power Consumption, W ? 20
Brand ? LIFUD
Case Type ? metal
Степень защиты IP20
Output Load Type ? CC: 1CH 250-500ma
DALI addresses ? 1 address

Description LF-GSD020YE

The LF-GSD020YE power supply with high-quality current stabilization (CC) from the manufacturer LIFUD is used to power LED equipment (LED strips / neon / control controllers, etc.). It converts household AC power to DC.
When installing the power supply, it is necessary to ensure heat exchange with the environment.
Installation in a closed/insulated space is not allowed.
Usage: plant lighting, indoor office lighting, decorative lighting, commercial lighting, residential lighting.

Advantages of this power supply:

  • Compact size, ease of installation
  • Output current stabilization
  • Output current can be adjusted using a DIP switch in the range of 250 to 500 mA in 50 mA steps
  • Universal AC input voltage
  • Built-in active PFC function
  • Standby power: <0.5 W
  • Dimming depth 0.1%
  • Logarithmic dimming curve or linear dimming curve can be selected via software
  • Metal housing suitable for class I and II luminaires
  • IP 20 protection class
  • High efficiency ratings
  • Short circuit protection
  • Natural cooling

Operating temperature: -30 ... +50 °C.
Weight: 175 g.
Size: 375*275*280 mm.
Number of units in 1 box: 56 pcs.

Safety standard ENEC: EN61347-1: 2015, EN 61347-2-13: 2014/A1: 2017, EN 62384: 2016/A1: 2009; CE-LVD: EN 61347-2-13: 2014/A1: 2017, EN 61347-1: 2015, EN 62493: 2015; SAA: AS 61347.2-13: 2018; CB: IEC 61347-1: 2015, IEC61347-2-3: 2014, IEC 61347-2-13: 2014/AMD1: 2016; CCC: GB19510.1-2009, GB19510.14-2009.

Documents LF-GSD020YE
