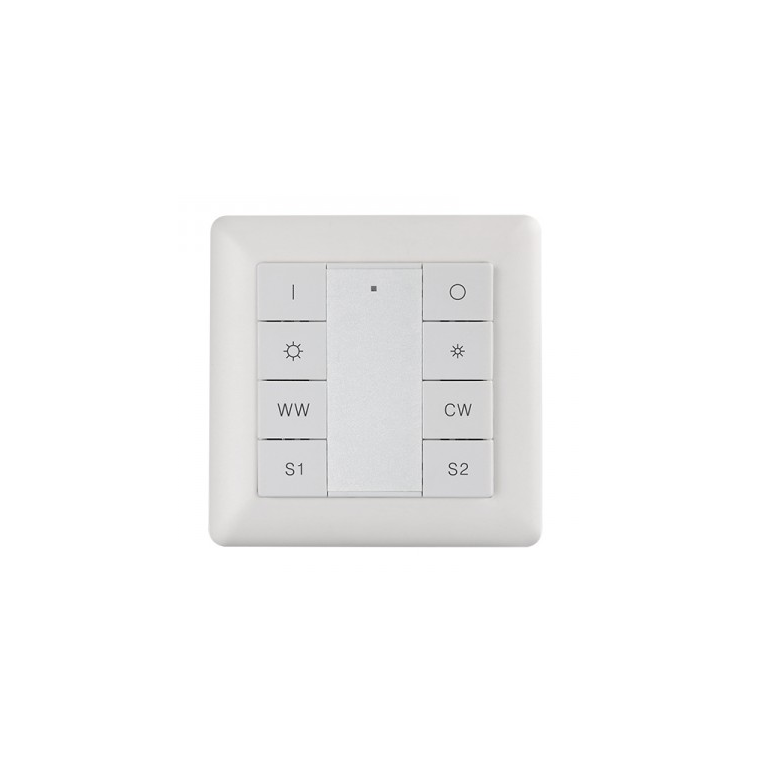

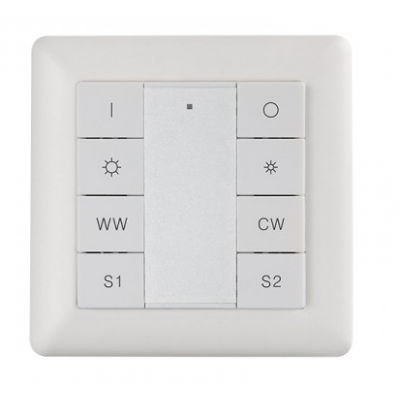

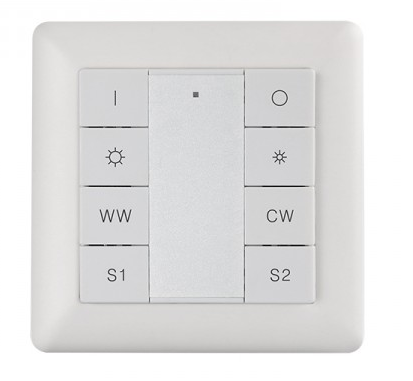

Control panel SR-2422K8-CCT-G1-S2 (DALI DT8)

Control panel SR-2422K8-CCT-G1-S2 (DALI DT8) Expand

17781

New

In stock
Quantity:
Order quantity: 1 шт

2 510,06 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
White plastic button panel for operation with DALI protocol. On/off, dimming, and color temperature control for CCT LED strips. 1 control zone. Full functionality with DALI DT8: up to 64 devices on the bus, with addressing 2 channels (CW/WW) to 1 address. Recall and save 2 scenes. Powered via DALI bus. Size 71.2*71.2*13.6 mm.
Manufacturer: SUNRICHER
Input Voltage, V ? 16V DALI
Warranty term ? 3 years
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Control panel SR-2422K8-CCT-G1-S2 (DALI DT8)

17781

In stock
Quantity: шт

2 510,06 ₴

Parameters Control panel SR-2422K8-CCT-G1-S2 (DALI DT8)

Input Voltage, V ? 16V DALI
Warranty term ? 3 years
Brand ? SUNRICHER
Case Type ? plastic
Related products 15141-19087-19089-18033

Description Control panel SR-2422K8-CCT-G1-S2 (DALI DT8)

Button white plastic panel for DALI protocol operation. On/off, dimming, and color temperature control for CCT LED strips.
Description:
  • 1 control zone, possible broadcast control.
  • For white LED strips with variable color temperature.
  • Fully functional operation with DALI DT8: up to 64 devices on the bus, with addressing 2 channels (CW/WW) per address.
  • The initial group number is set by a switch on the back of the panel.
  • Recall and save 2 scenes.
  • Powered via DALI bus.
  • Size 71.2*71.2*13.6 mm.
Documents Control panel SR-2422K8-CCT-G1-S2 (DALI DT8)
