Short description

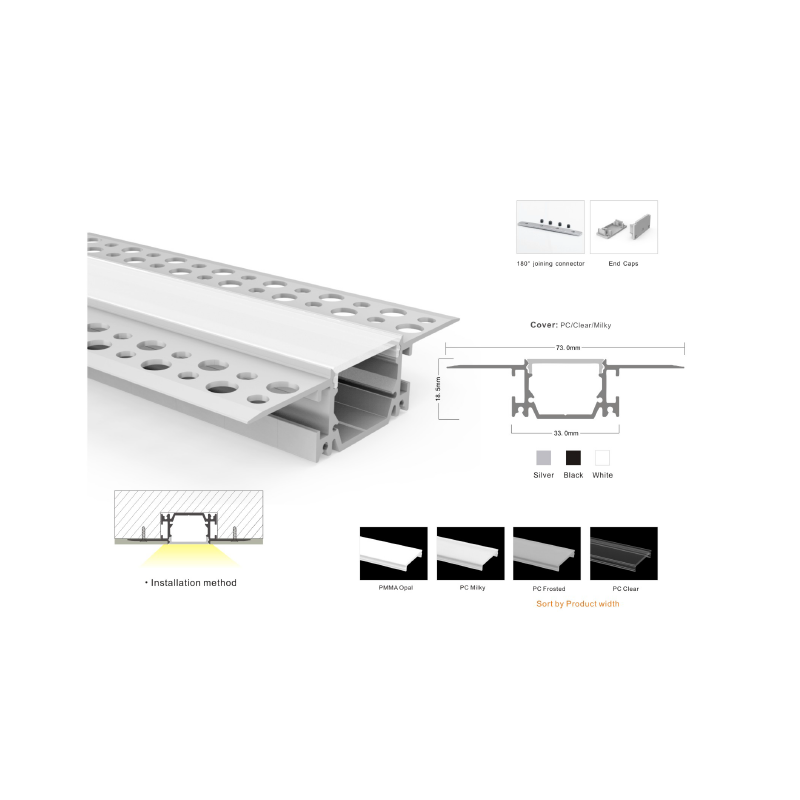

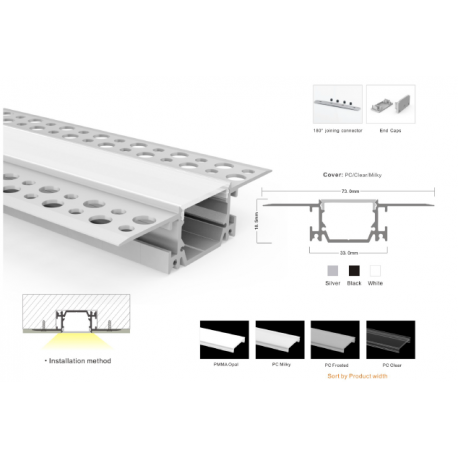

The recessed profile for LED strip LP - SPL082 has the appearance of a box with protrusions on the sides. It is designed for flush mounting in a groove. The profile for LED strip LP - SPL082 is installed in drywall constructions or plaster grooves.

External width: 73mm.

Internal width: 33mm.

Height: 18.5mm.

Length: 3000mm.

Order in multiples of 3 m.

Price is indicated per meter.

Category Aluminum profile
Manufacturer: BWLT
Warranty term ? 1 year
Type of Profile System Component Recessed Profile Hidden Flange
Ігор
Ігор
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Aluminum profile LP - SPL082

12558

Not available

Parameters Aluminum profile LP - SPL082

Warranty term ? 1 year
Brand ? BWLT
Type of Profile System Component Recessed Profile Hidden Flange
Related products 10059-12560-13023

Description Aluminum profile LP - SPL082

The recessed profile for LED strip LP - SPL082 has the appearance of a box with protrusions on the sides. It is designed for installation in a flush groove.

This aluminum profile has a number of advantages:

  • Basic protection against dust, moisture, and mechanical damage.
  • Strength and lightweight.
  • Ability to dissipate excess heat, protecting the LED strip from overheating.
  • Permissibility of use not only indoors but also outdoors.
  • To ensure effective heat dissipation and avoid overheating and failure of the strip, the profile is extruded from the highest quality primary aluminum alloy.

The profile for LED strip LP - SPL082 is mounted in drywall constructions or plaster grooves. This profile is well-suited for installation in drywall ceilings, as it provides not only ceiling illumination but can also serve as a ceiling cornice.

In the absence of gaps and voids, this profile is recommended for strips up to 18 W/m. This is due to the fact that heat dissipation occurs only from one side, which may cause overheating of the strip.

Diffusers (screens), end caps, connectors, and fasteners are purchased separately depending on the required quantity.

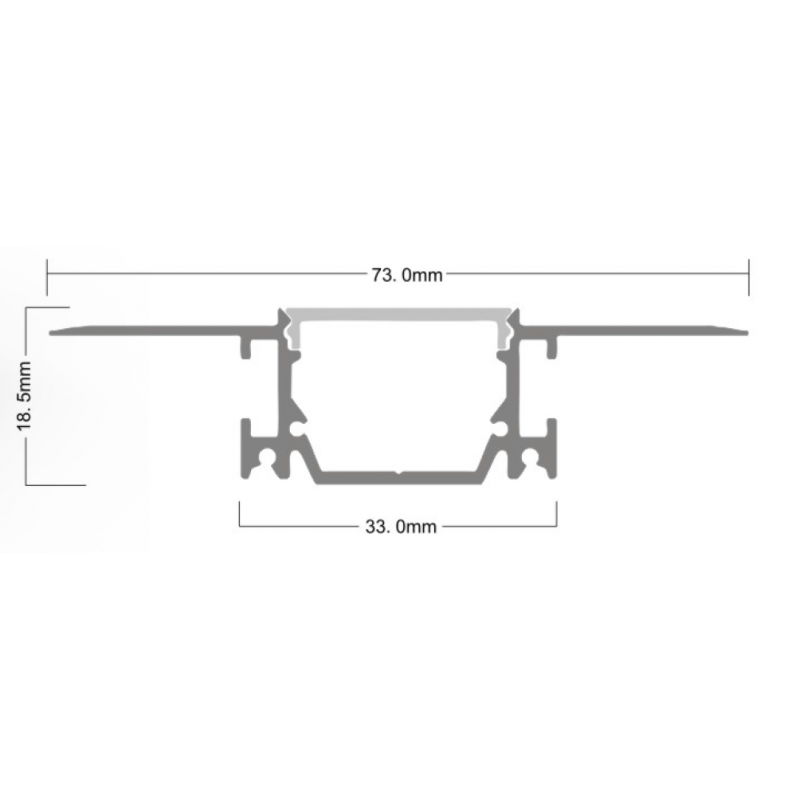

External width: 73mm.

Internal width: 33mm.

Height: 18.5mm.

Length: 3000mm.

Orders must be in multiples of 3 m.

The price is indicated per meter.

Cutting and painting of the profile is available for an additional fee.
