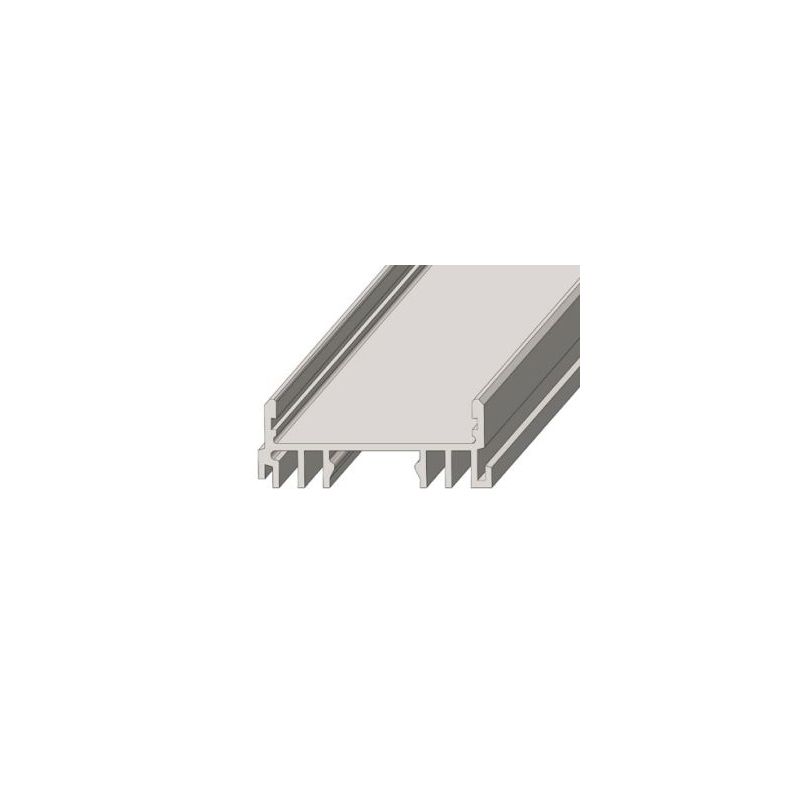

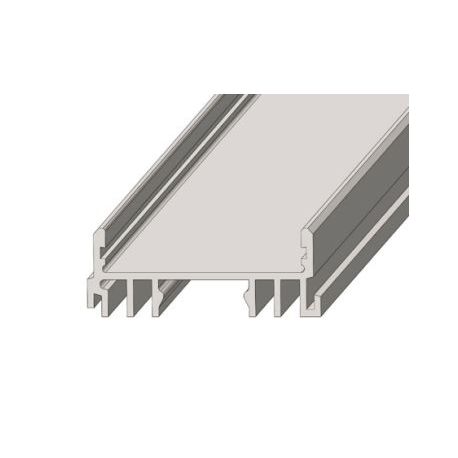

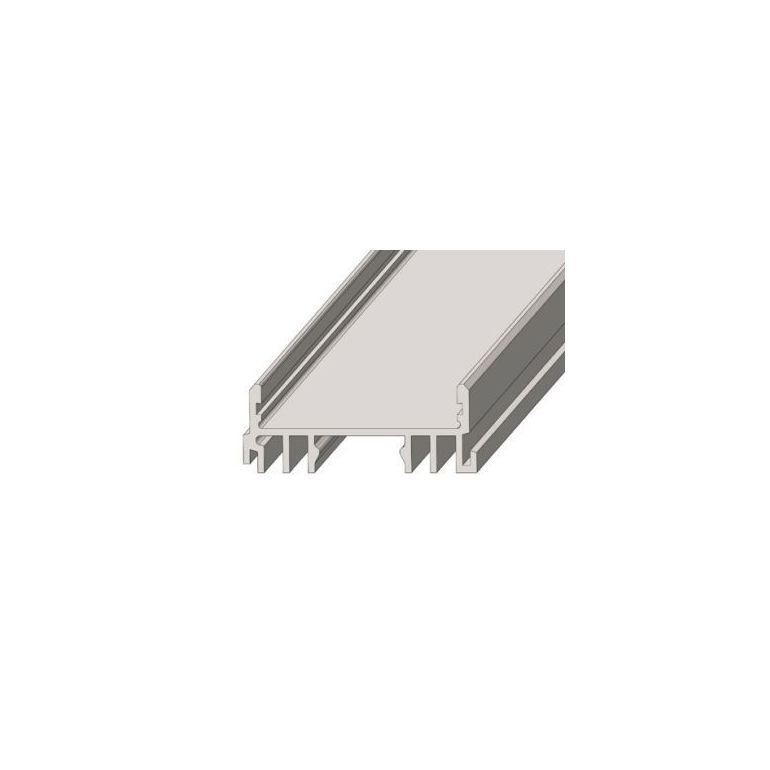

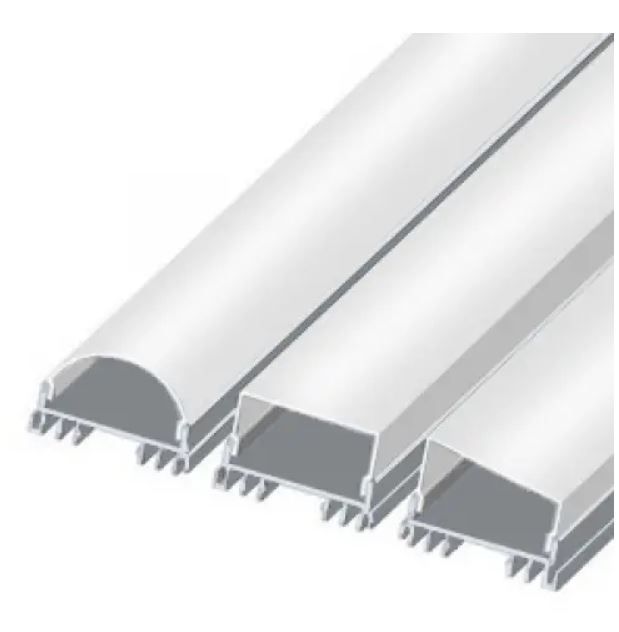

Aluminum profile LSS LP

The profile for the LED strip LCC is a compact aluminum surface-mounted LED profile.

This aluminum profile has several advantages:

• Basic protection against dust, moisture, and mechanical damage.
• Strength and lightweight.
• The ability to dissipate excess heat, protecting the LED strip from overheating.
• To ensure effective heat dissipation and avoid overheating and failure of the strip, the profile is extruded from the highest quality primary aluminum alloy.

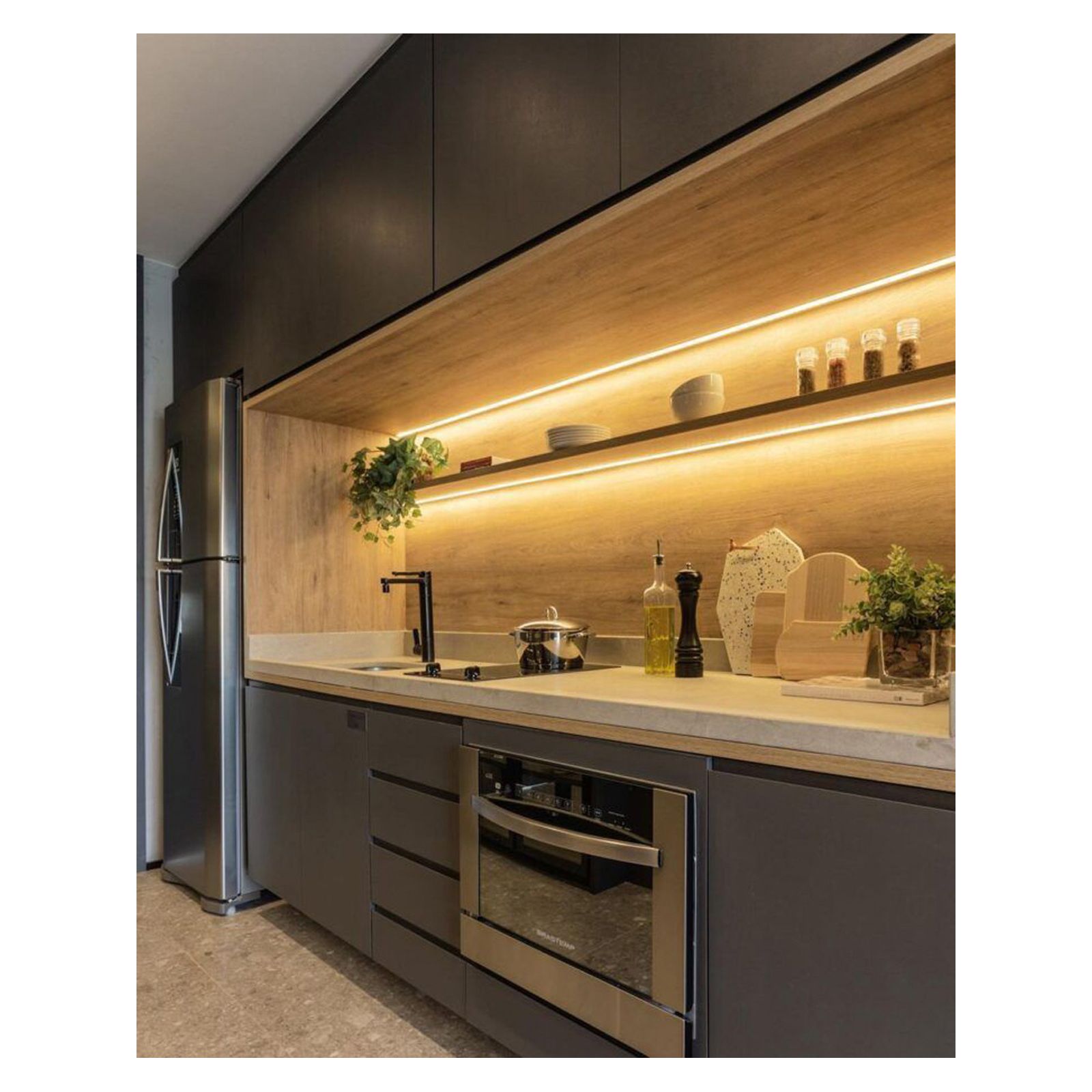

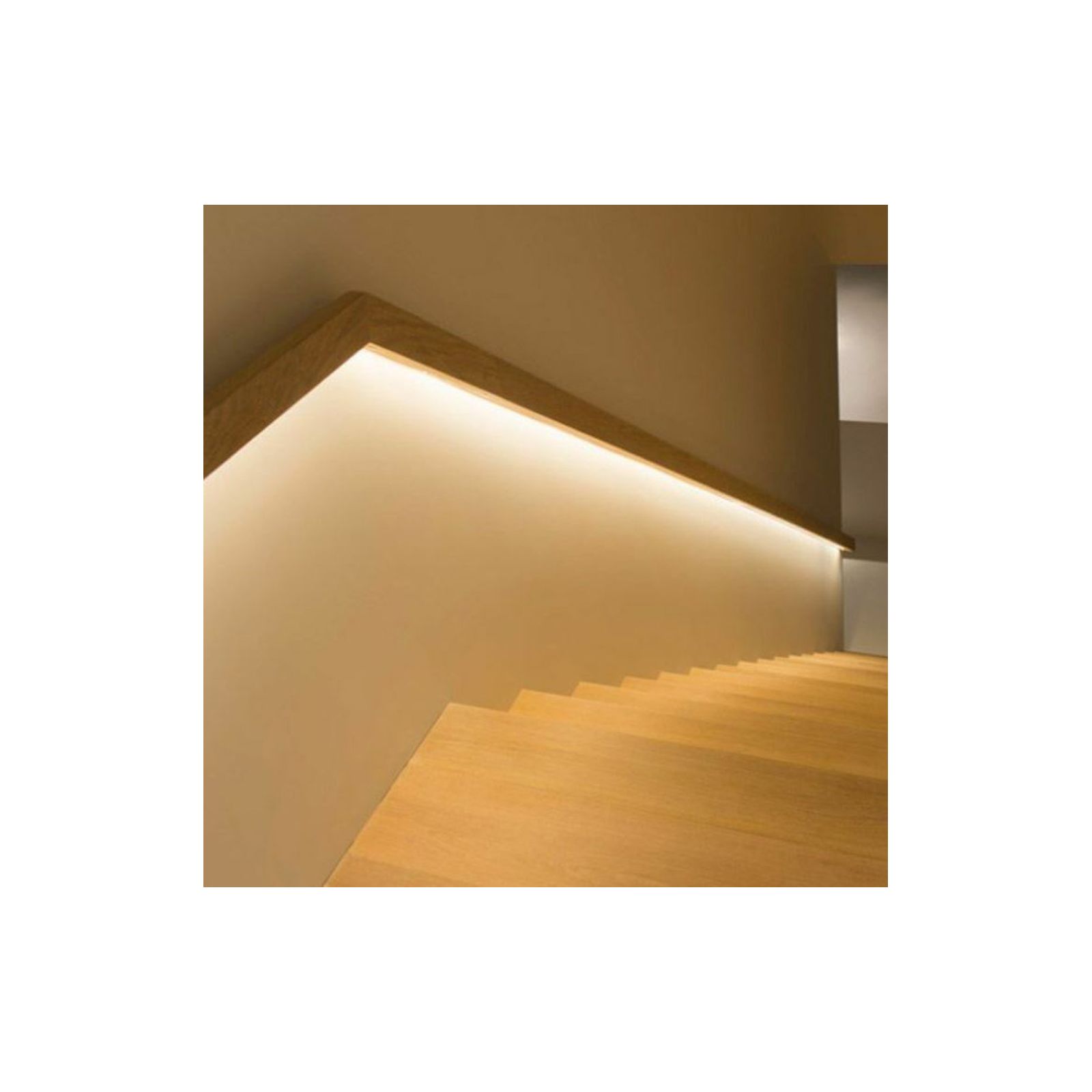

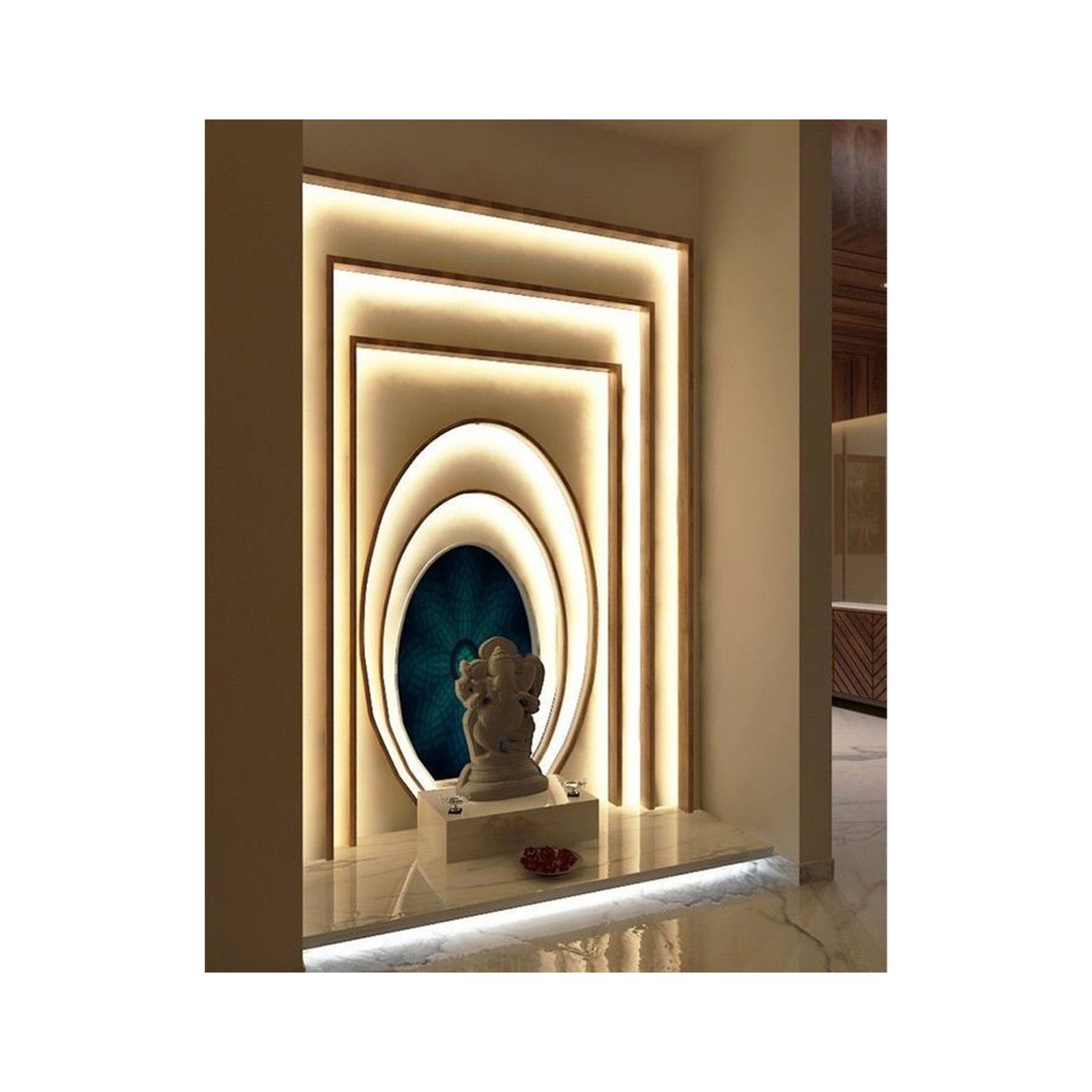

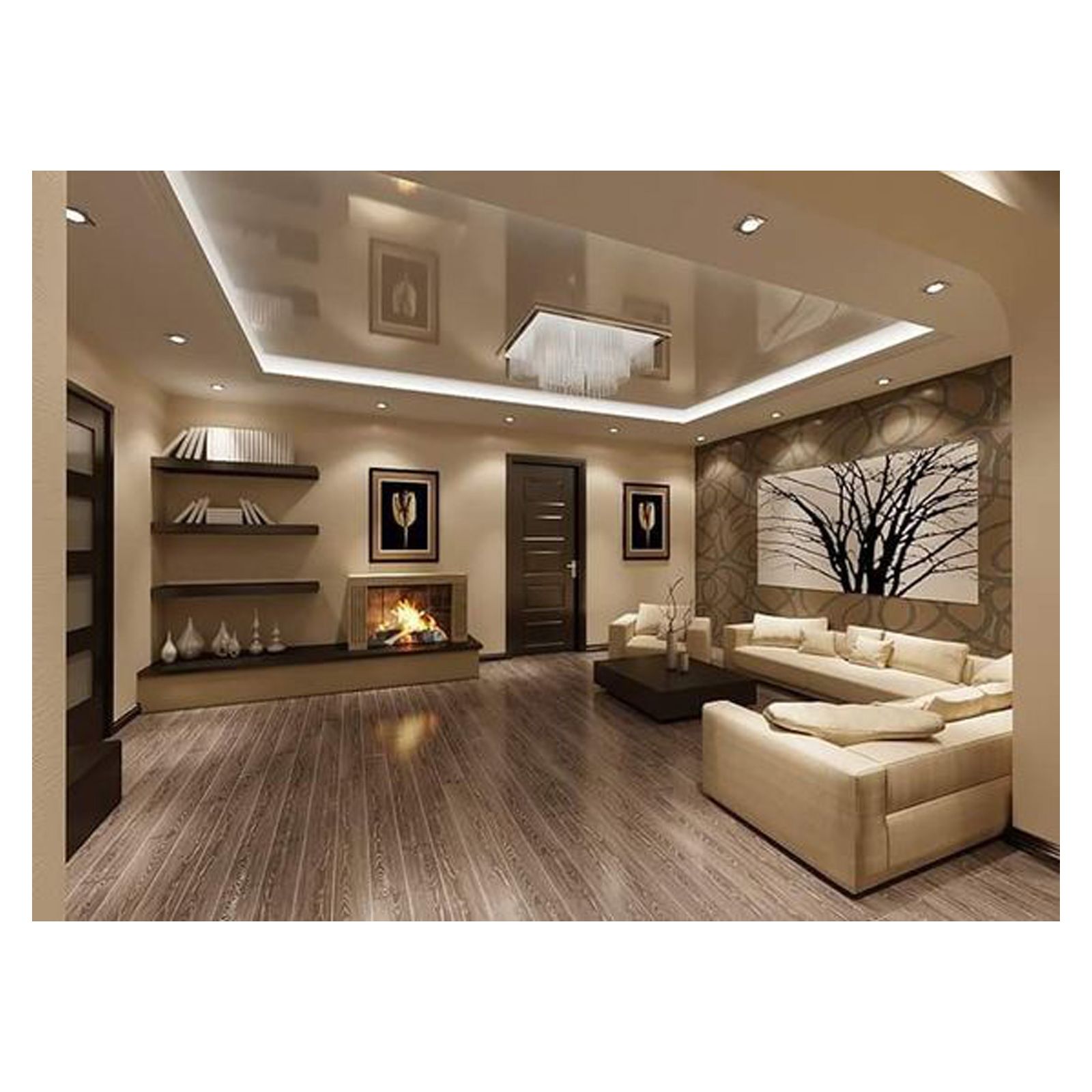

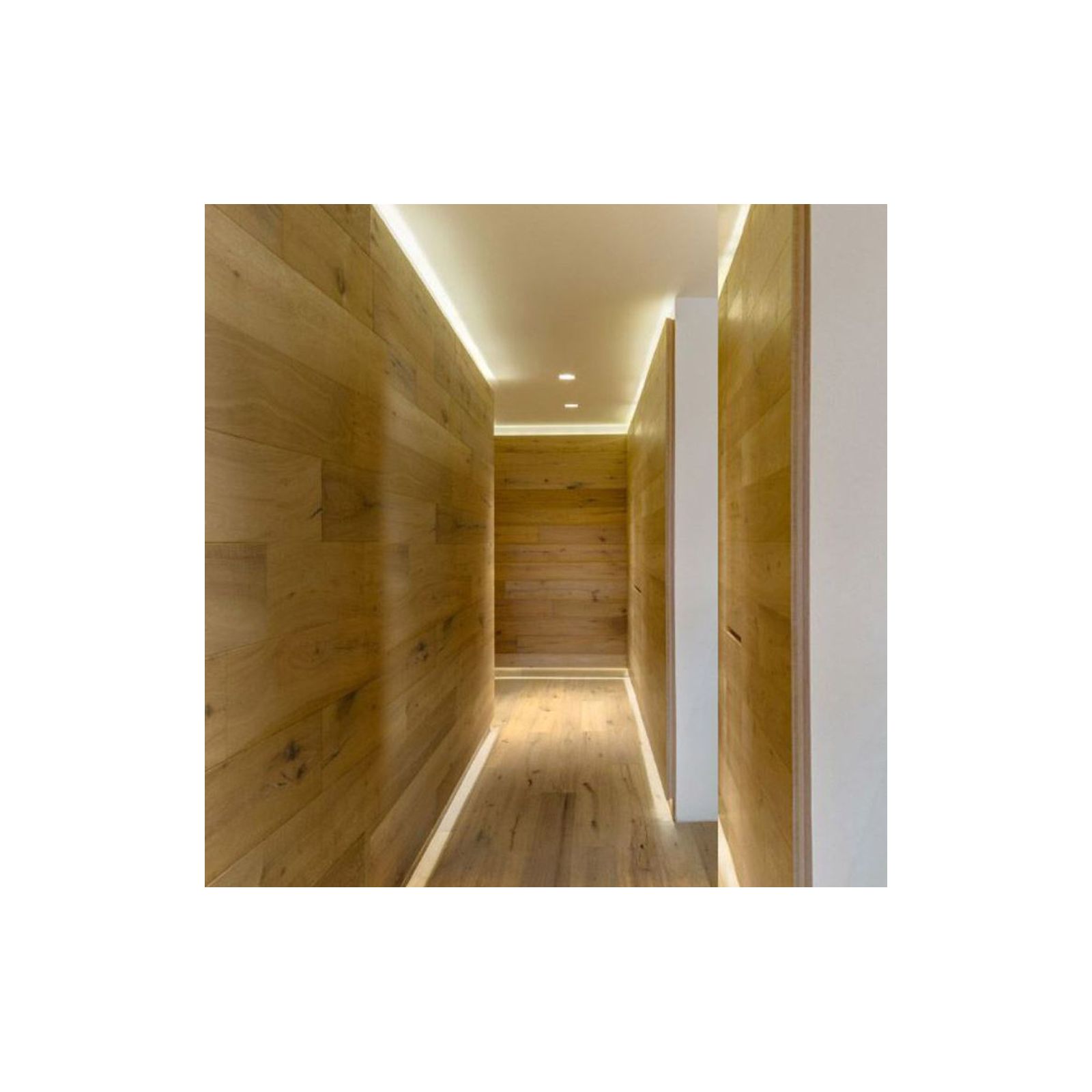

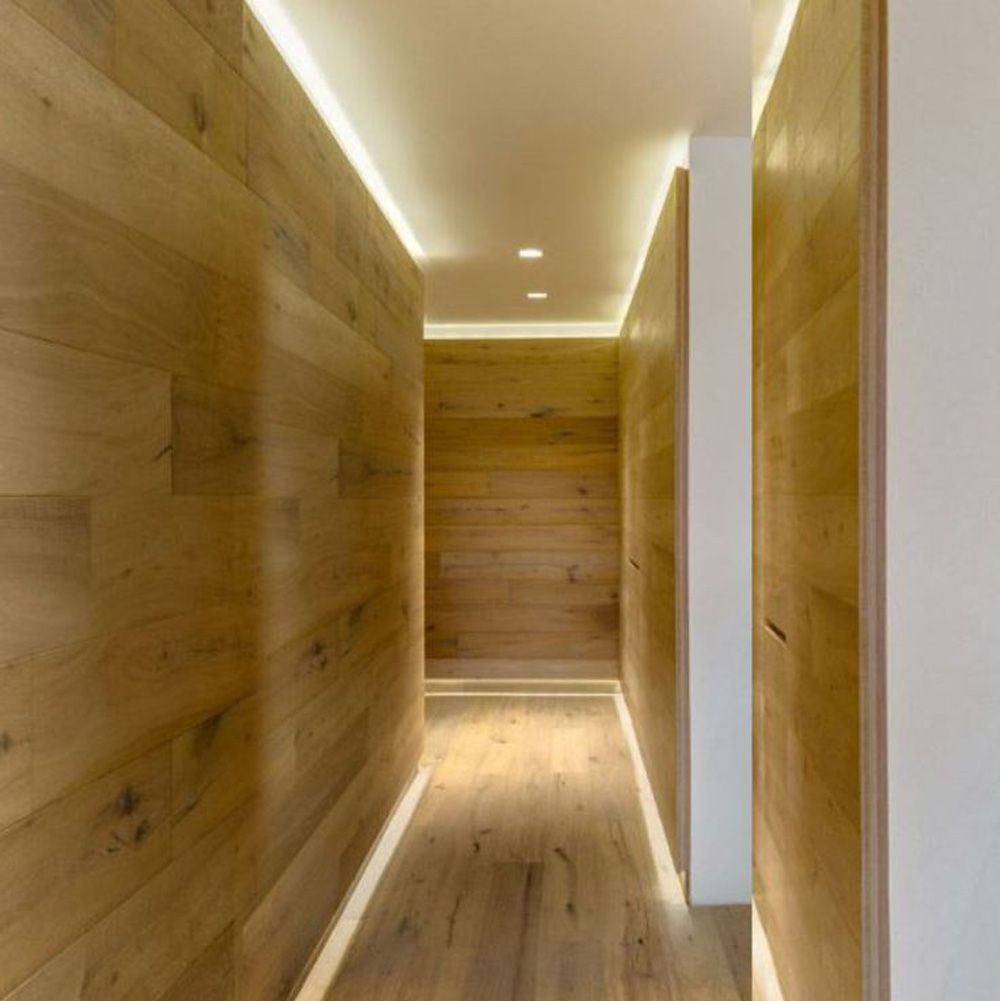

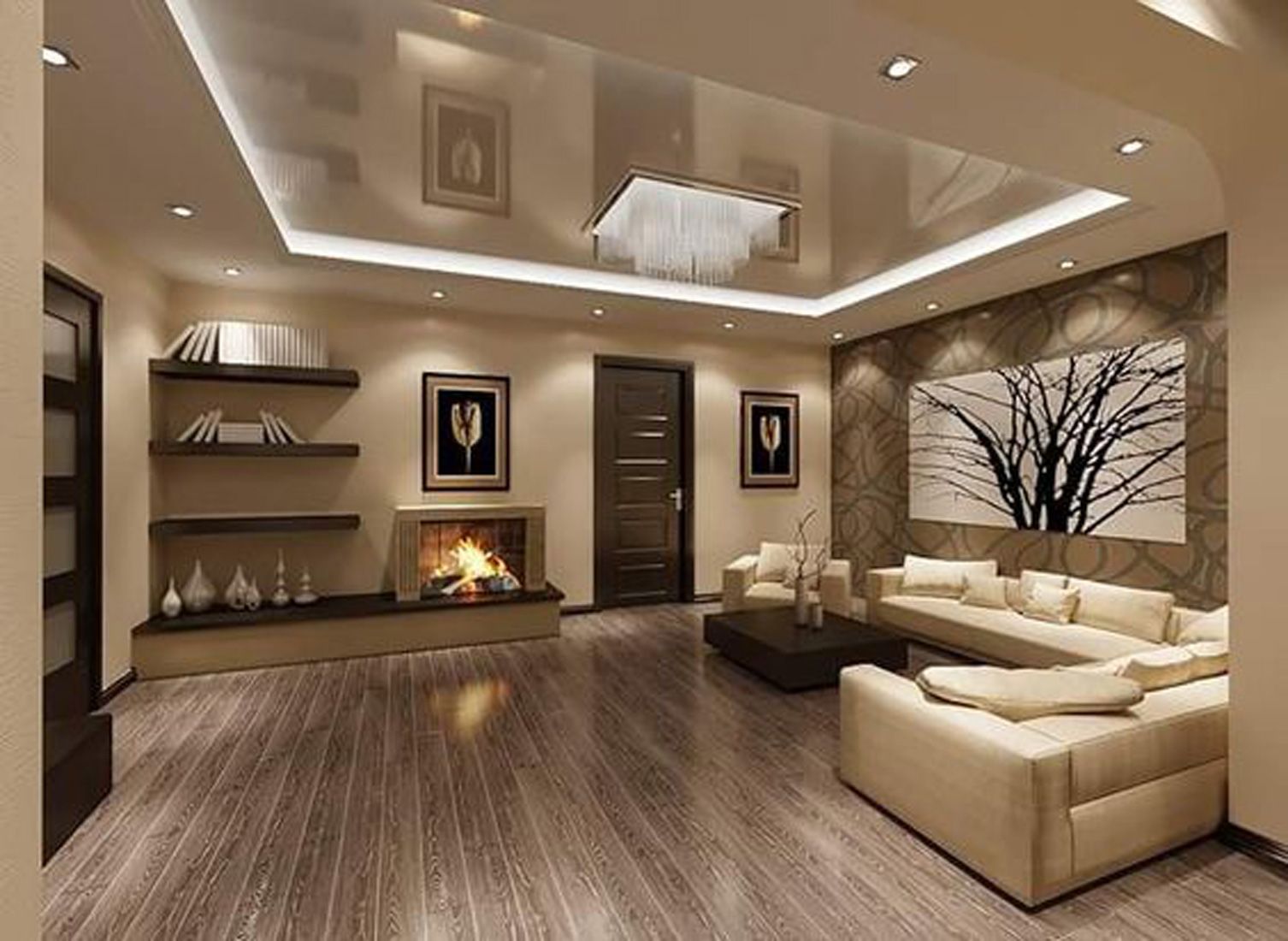

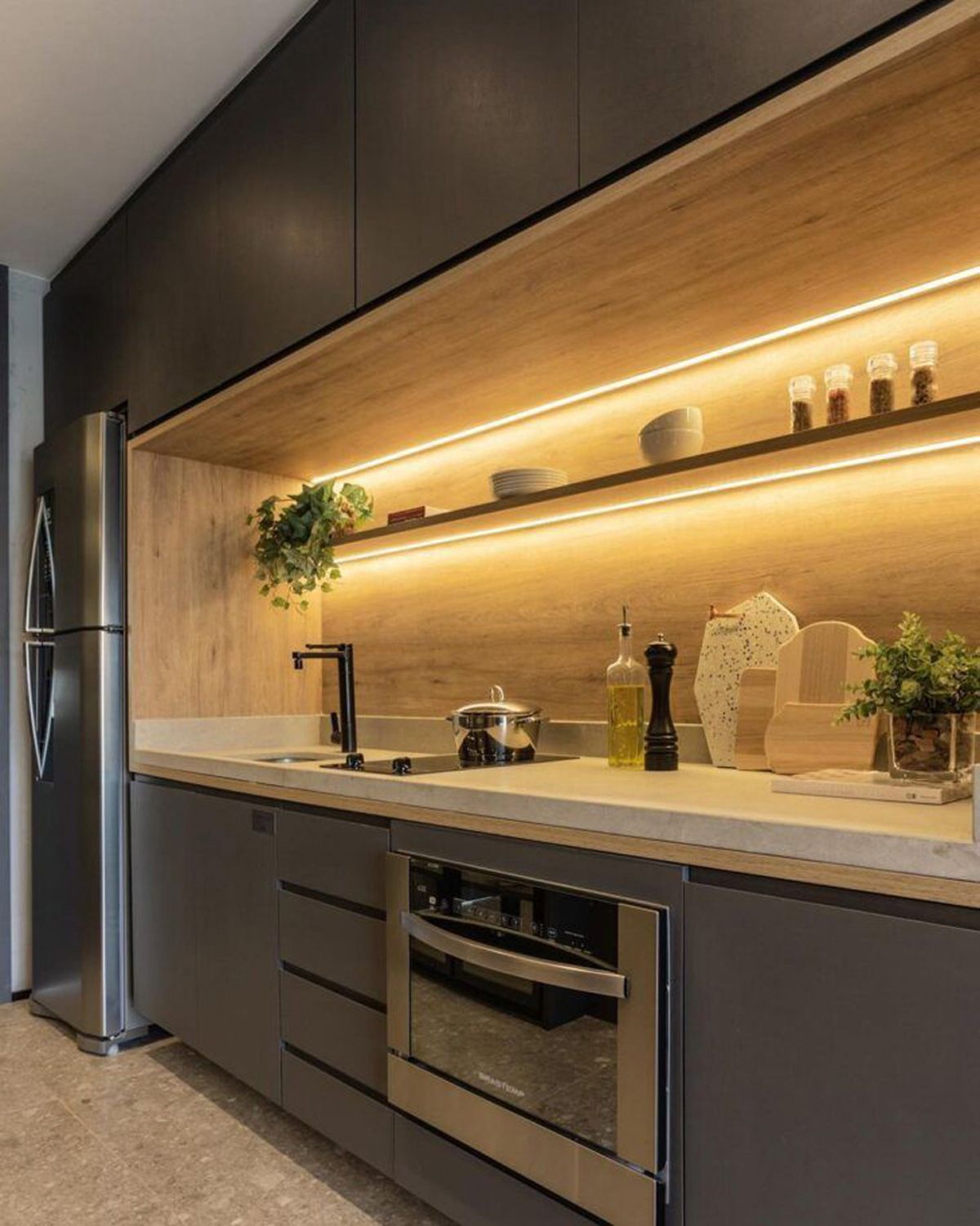

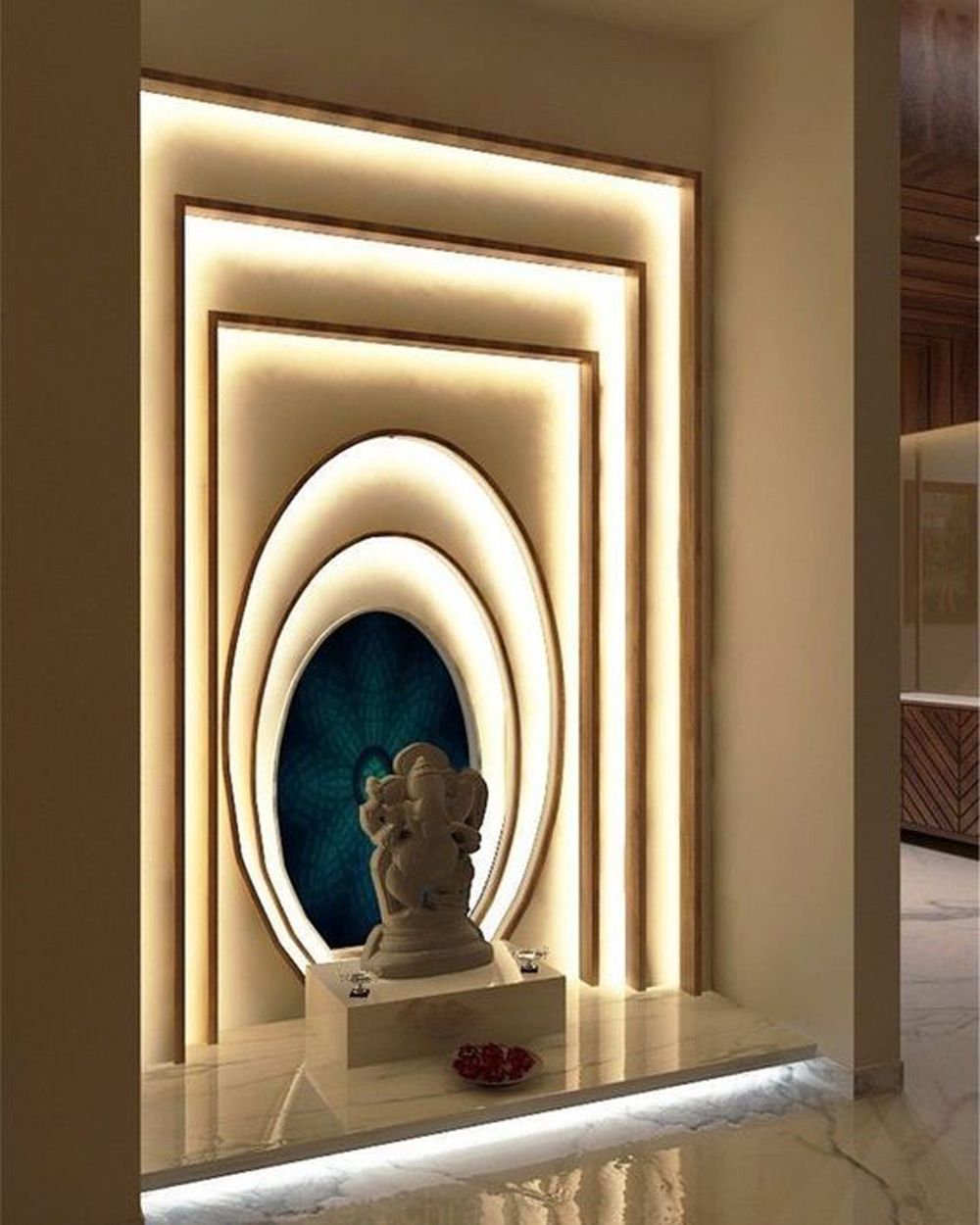

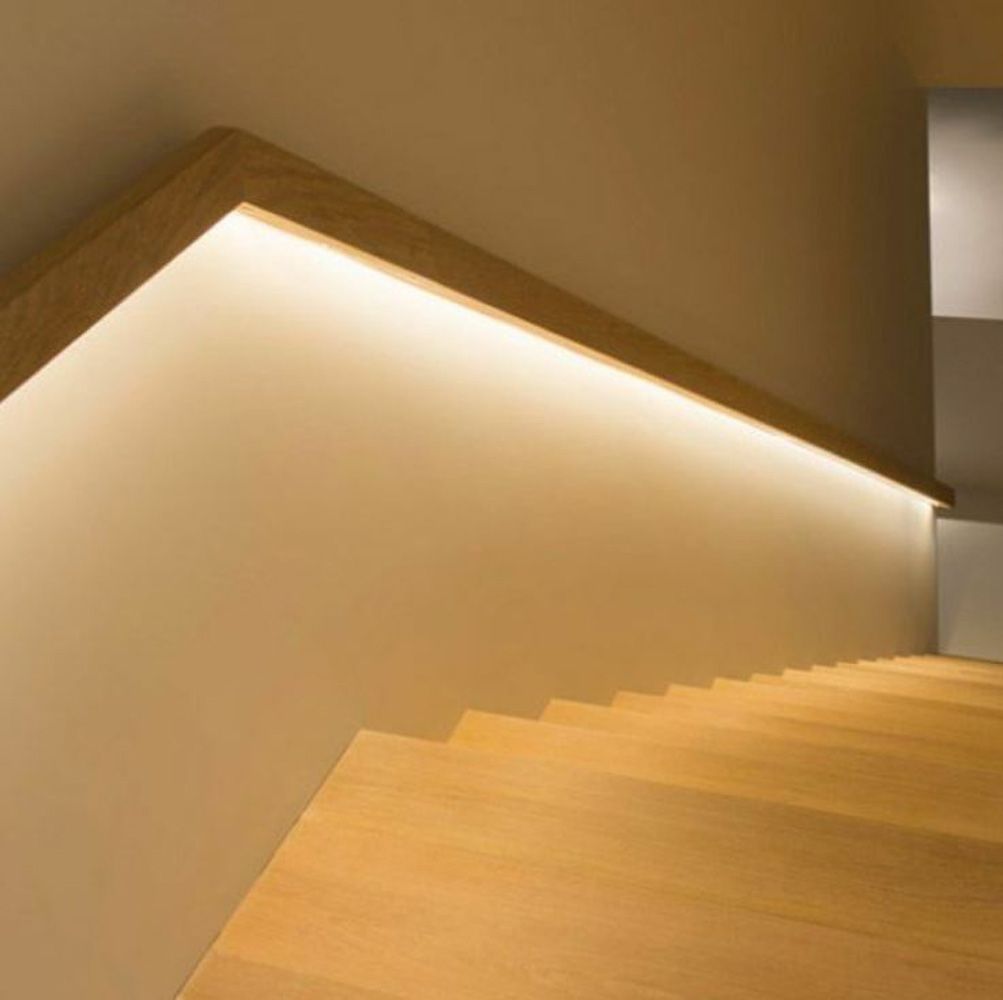

The profile is designed for surface mounting and is ideal for high-quality general or accent lighting in rooms. There is an option for concealed mounting. The concealed mounting system securely holds the profile flush with the surface and allows for multiple installations/removals of the profile as needed for servicing the base elements. The minimal dimensions of the profile allow it to be used in narrow spaces and make it minimally noticeable.

Equipped with fins for heat dissipation from the LED strip, which can also be used to conceal the routing of power wires. It has additional grooves inside for securing the board.

In the absence of gaps and voids, this profile is recommended for strips up to 15 W/m. This is due to the fact that heat dissipation occurs only from one side, which can lead to overheating of the strip.

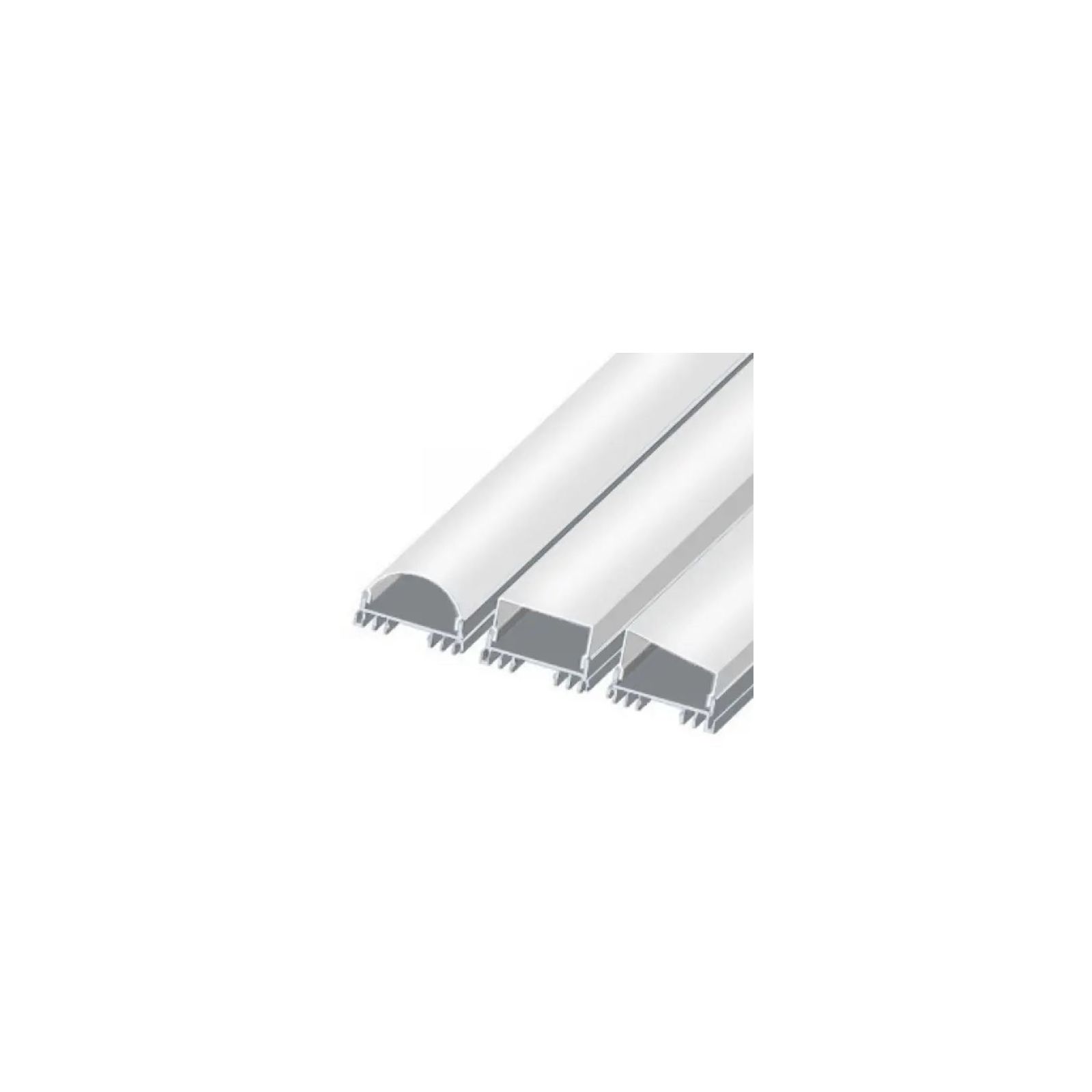

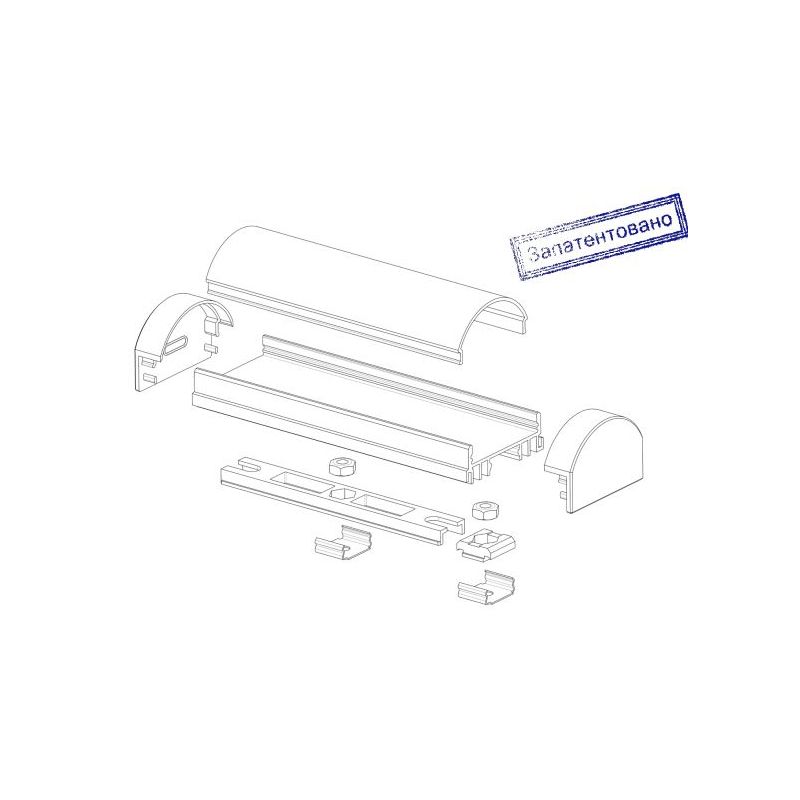

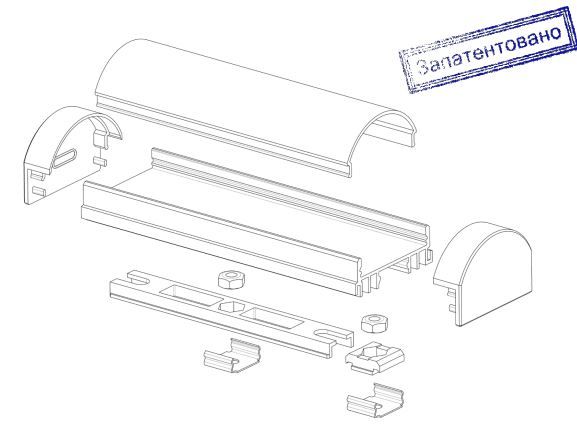

Diffusers (screens), end caps, connectors, and mounting hardware are purchased separately depending on the required quantity.

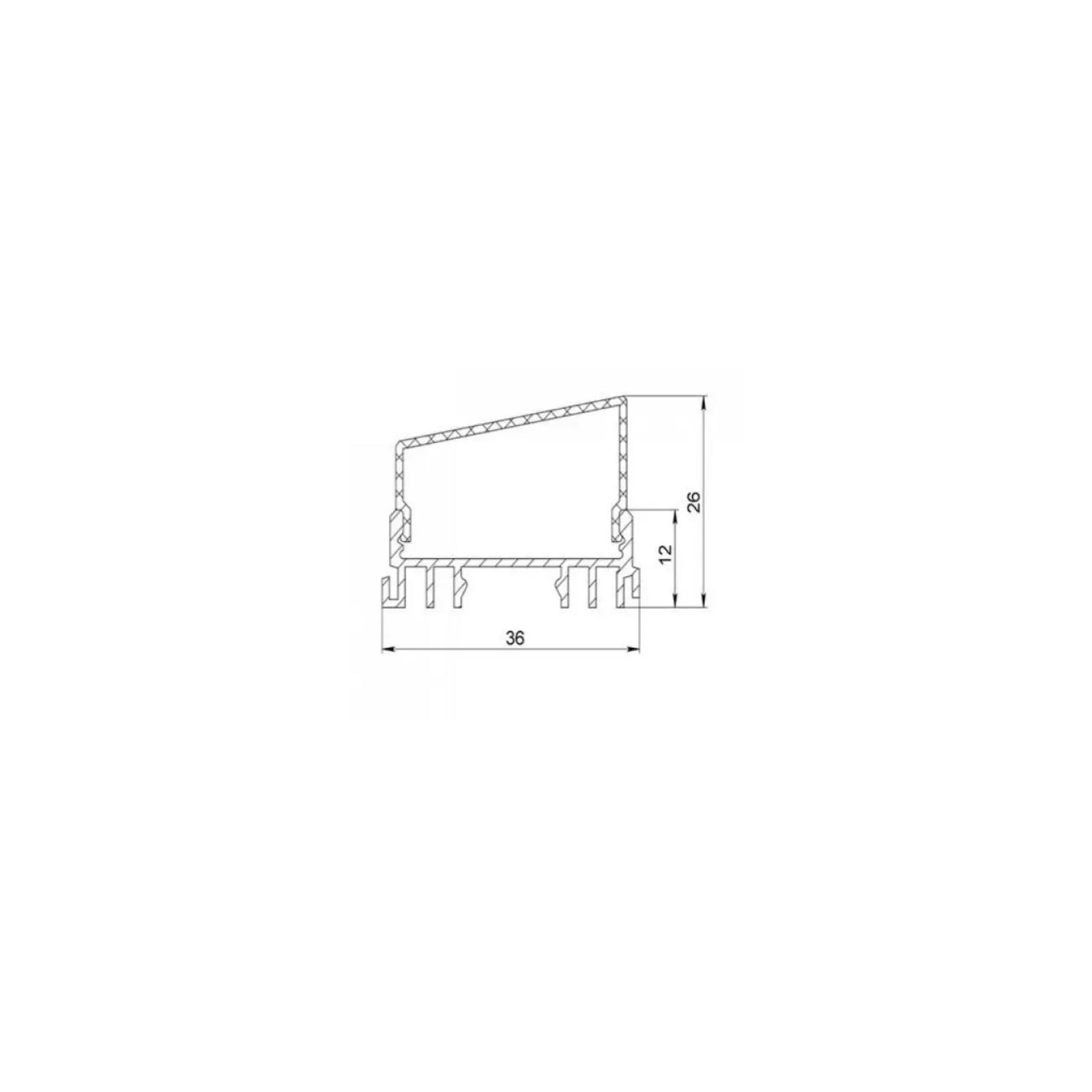

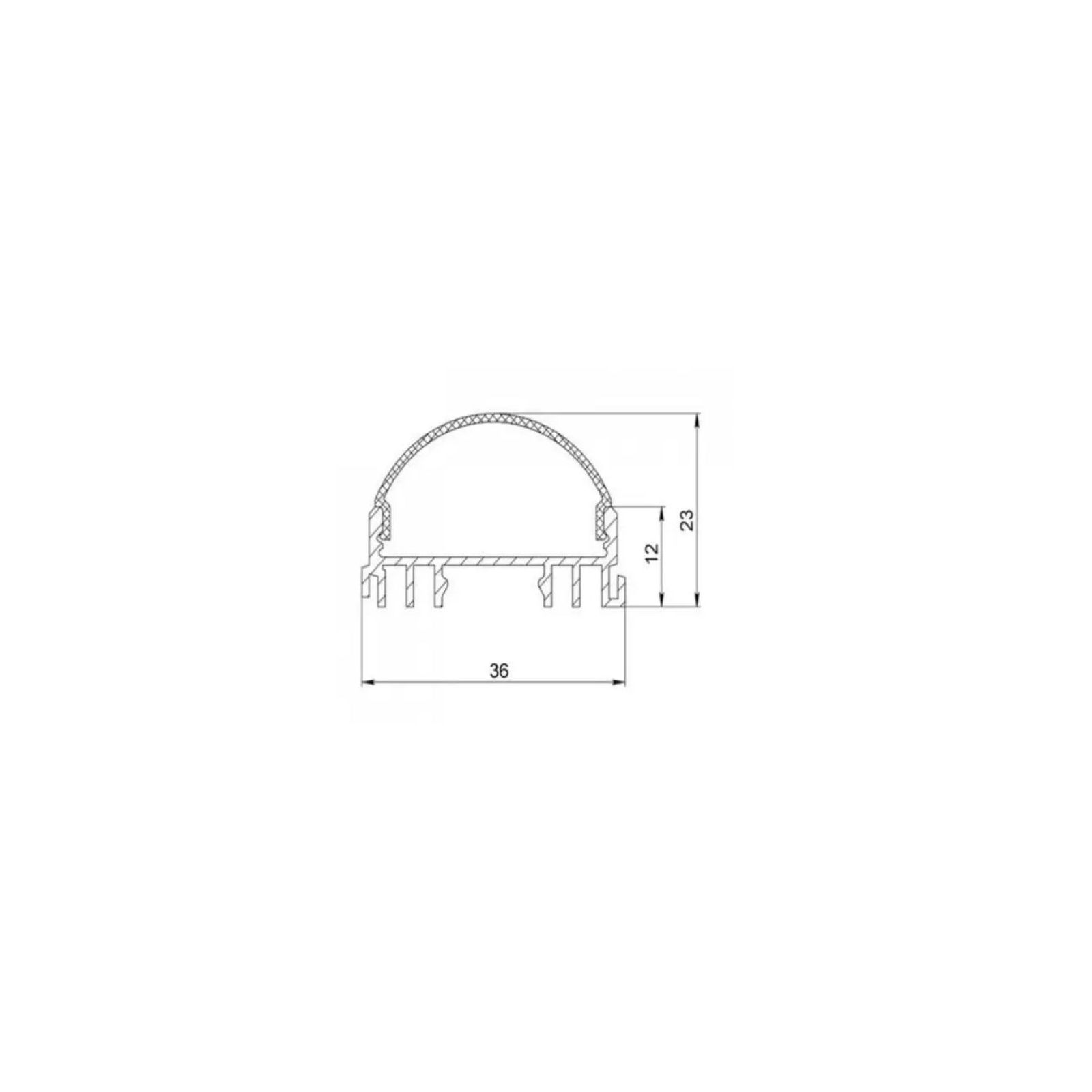

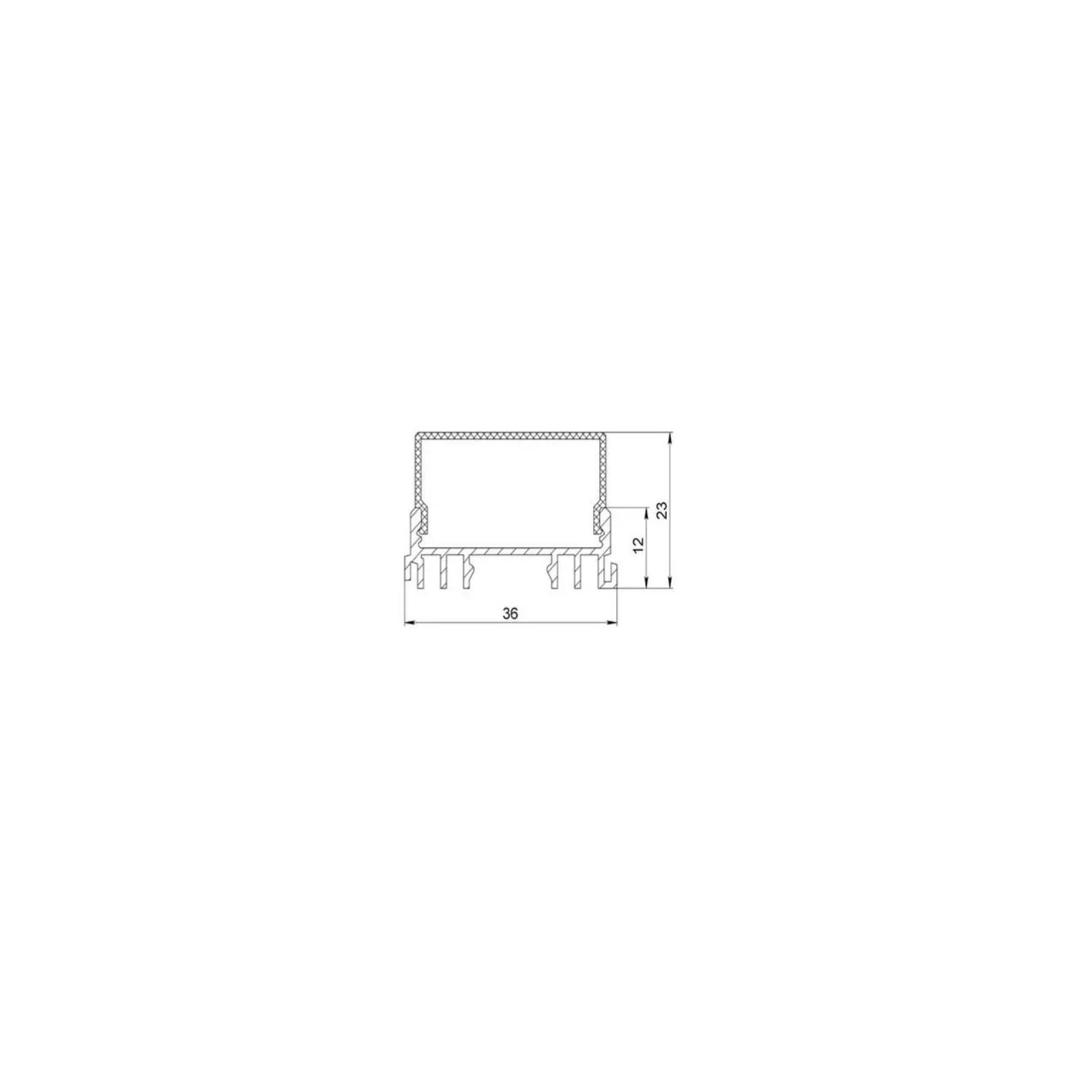

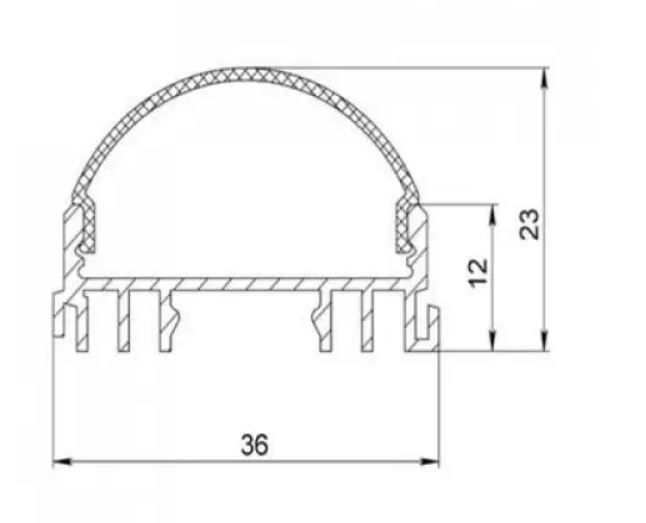

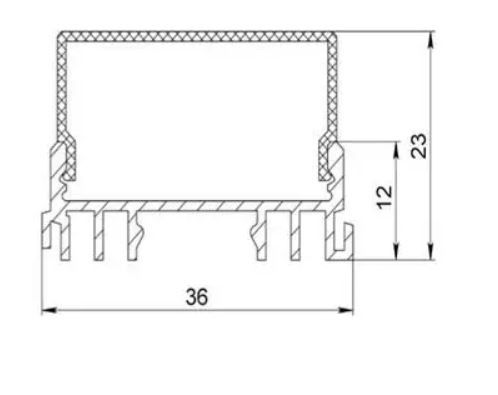

External width: 36mm.

Internal width: 30.3mm.

Height: 12mm.

Length: 2000mm.

Orders must be in multiples of 2 m.

The price is indicated per meter.

Cutting and painting of the profile is available for an additional fee.
