TRJ-24VDC-SA-CD-R

TRJ-24VDC-SA-CD-R Expand

2069

New

In stock
Quantity:
Order quantity: 1 шт

78,20 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description

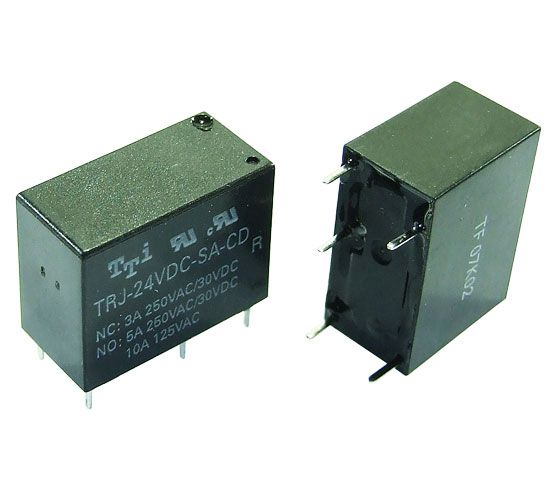

Relay TRJ-24VDC-SA-CD-R
Features:
- compact dimensions;
- high quality;
- switching capability of 5A -10A;
- SPST-NO and SPDT configuration;
- available with sealed and open cover;
- recognized by UL and cUL (E156406).
Category Relays
Manufacturer: TIANBO
Warranty term ? 1 year
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
TRJ-24VDC-SA-CD-R

2069

In stock
Quantity: шт

78,20 ₴

Parameters TRJ-24VDC-SA-CD-R

Warranty term ? 1 year
Brand ? TIANBO
Contact Layout Z
Coil Operating Voltage, VDC 24VDC
Maximum Working Current, A 5
Relay Type PCB relays

Description TRJ-24VDC-SA-CD-R

Relay TRJ-24VDC-SA-CD-R

Features:
- compact dimensions;
- high quality;
- switching capacity 5A -10A;
- SPST-NO and SPDT configuration
- hermetic and open cover possible;
- UL and cUL recognized (E156406).

Technical characteristics:
Contact group - 1C
Control voltage (Ucontrol) - 24V
Coil type - DC
AC contact current (IAC) - 5A
Switched voltage (UcomAC) - 250V
DC contact current (IDC) - 5 A
Switched voltage (UcomDC) - 30V
Tap type - THT
Mounting type - PCB
Length (L) - 20.5mm
Width (W) - 10.6mm
Height (H) - 15.3mm
Contact group type (USA) - SPDT
Max. permissible coil voltage, V or (%) - 110%
Release voltage, V or (%) - 5%
Trigger voltage, V or (%) - 75%
Coil resistance (R) - 1280Ω
Power (P) - 450mW
Trigger time (ton) - 8msec
Release time (toff) - 5msec
Temperature range: -40...+70℃
Weight - 7g

Delivery to order (4-12 weeks) of any quantity is possible.

Documents TRJ-24VDC-SA-CD-R
