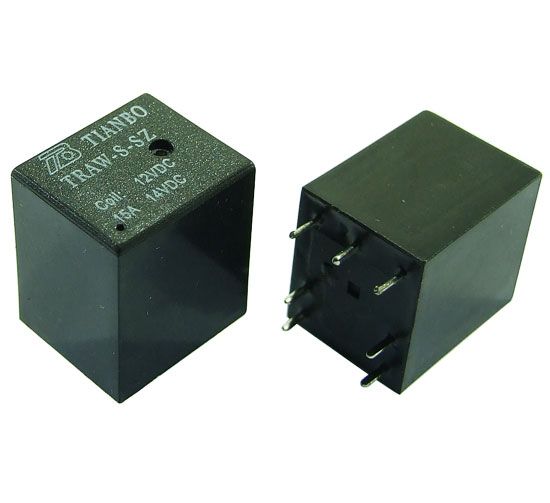

TRAW-12VDC-S-SZ

TRAW-12VDC-S-SZ Expand

1395

New

In stock
Quantity:
Order quantity: 1 шт

$0.59

/ Штука

Need help? (consultation, payment, delivery)
Short description
TRAW-12VDC-S-SZ relay
Features:
- maximum switching current 20A;
- continuous rated current 10A at 85°C;
- other contact forms available;
- open or sealed cover possible;
- complies with RoHS, ELV directives.
Category Relays
Manufacturer: TIANBO
Warranty term ? 1 year
Богдан
Богдан
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
TRAW-12VDC-S-SZ

1395

In stock
Quantity: шт

$0.59

Parameters TRAW-12VDC-S-SZ

Warranty term ? 1 year
Brand ? TIANBO
Contact Layout SZ
Coil Operating Voltage, VDC 12VDC
Maximum Working Current, A 20
Relay Type car relays

Description TRAW-12VDC-S-SZ

Relay TRAW-12VDC-S-SZ

Features:
- max. switching current 20A;
- continuous rated current 10A at 85°C;
- other contact forms available;
- open or sealed cover possible;
- complies with RoHS, ELV directives.

Technical specifications:
Contact group - 1H/1Z/SH/SZ
Contact values:
            - 1H,1Z: 10A, 14VDC
            - SH,SZ: 15A, 14VDC
Maximum switching voltage - 75VDC
Maximum switching current - 20A
Maximum switching power - 280W
Contact resistance (max.) - 100mΩ at 6V (DC) and 1A
Dielectric strength between open contacts - 1000V AC (for 1 min)
Coil type - DC
Length (L) - 17.5mm
Width (W) - 15mm
Height (H) - 19.5mm
Temperature range: -40 ... +85℃
Operating time (ton) - 5ms
Release time (toff) - 3ms
Max. switching frequency:
             - mechanical: 18,000 operations/hour
             - electrical: 1,800 operations/hour
Weight - 9.5g

Possible supply on order (4-12 weeks) of any quantity.

Documents TRAW-12VDC-S-SZ
