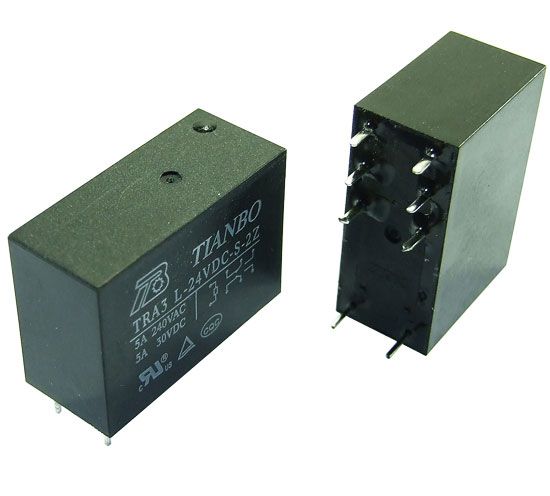

TRA3L-24VDC-S-2Z

TRA3L-24VDC-S-2Z Expand

5098

New

In stock
Quantity:
Order quantity: 1 шт

$0.94

/ Штука

Need help? (consultation, payment, delivery)
Short description
TRA3L-24VDC-S-2Z Relay
Features:
- compact dimensions;
- available with Au-coated contacts;
- class B/F;
- complies with RoHS, ELV directives.
Category Relays
Manufacturer: TIANBO
Warranty term ? 1 year
Богдан
Богдан
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
TRA3L-24VDC-S-2Z

5098

In stock
Quantity: шт

$0.94

Parameters TRA3L-24VDC-S-2Z

Warranty term ? 1 year
Brand ? TIANBO
Contact Layout 2Z
Coil Operating Voltage, VDC 24VDC
Maximum Working Current, A 8
Relay Type PCB relays

Description TRA3L-24VDC-S-2Z

Relay TRA3L-24VDC-S-2Z

Features:
- compact dimensions;
- available with Au-coated contacts;
- class B/F;
- complies with RoHS, ELV directives.

Technical specifications:
Contact group - 2H/2Z
Contact coating material - silver alloy
Contact values:
       - 5A 240VAC
       - 5A 30VDC
Minimum load - 100mA 5VDC
Maximum switching voltage - 250VAC/30VDC
Maximum switched current - 8A
Maximum switched power - 1250VA/240W
Contact resistance - 100mΩ (max.) at 5VDC 1A
Length (L) - 29mm
Width (W) - 20.4mm
Height (H) - 12.7mm
Temperature range: -40...+85℃
Operate time (ton) - 20ms
Release time (toff) - 10ms
Weight - 14g

Possible supply on order (4-12 weeks) of any quantity.

Documents TRA3L-24VDC-S-2Z
