PROMLINE-F 100

Technical Specifications of PROMLINE-F-100-S

The fixture PROMLINE-F-100-S in silver color (unpainted aluminum housing) has a length of 10 cm. Depending on the selected LEDs, power options range from 9 to 13 W, with a luminous flux of 130 to 900 lm, respectively.

The power supply for the PROMLINE-F-100-S fixture can be provided:

• from the 220V AC household electrical network;
• from 12V, 24V, 36V DC.

High energy efficiency and uninterrupted operation of the PROMLINE-F-100-S fixture throughout its service life are ensured by high-quality LEDs from reliable manufacturers, as well as optimal operating modes for the LEDs selected by our engineers. The production of the PROMLINE-F-100-S fixture uses powerful LEDs from the American-Taiwanese manufacturer PROLIGHT and from the American manufacturer CREE, depending on the configuration.

Color Rendering Index

The PROMLINE-F series of facade fixtures has several available options for the color rendering index:

• without CRI or CRI=70 using predominantly colored diodes, which predictably change the color of surrounding objects;
• CRI>70 using energy-efficient diodes from the American manufacturer CREE;
• CRI>80 using diodes from the manufacturer PROLIGHT, which accurately render the color of surrounding objects.

Color Temperature

This series of fixtures allows for the selection of color temperature:

• warm light (3000K);
• neutral light (4000K);
• daylight (5000K);
• red light;
• blue light;
• green light.

Design of PROMLINE-F-100-S

The aluminum housing provides good heat dissipation for the electrical components of the fixture and protects them from moisture and dust (IP65). The power supply unit is internal (included).

The materials used in the production of the PROMLINE-F-100-S fixture are resistant to ultraviolet radiation and atmospheric effects. This allows the fixture to be used year-round in a temperate climate throughout its service life.

The PROMLINE-F-100-S fixture can be equipped with additional optics:

• narrowly directed symmetrical optics (available beam angles: 5°, 10°, 15°, 30°, 45°), which create a narrow beam of light for even illumination of the facade;
• elliptical lenses that create illuminated areas of oval shape. Such a lens focuses the light beam in two perpendicular directions: for example, the beam angle of the longitudinal ray is 45°, while the other, transverse, is 5°, allowing for the creation of a narrow elongated intensely illuminated zone suitable for creating a continuous line of lighting along a cornice or molding;
• optical lenses of 60°, 90°, and 135° for creating a directed light flow of the required size.

Installation

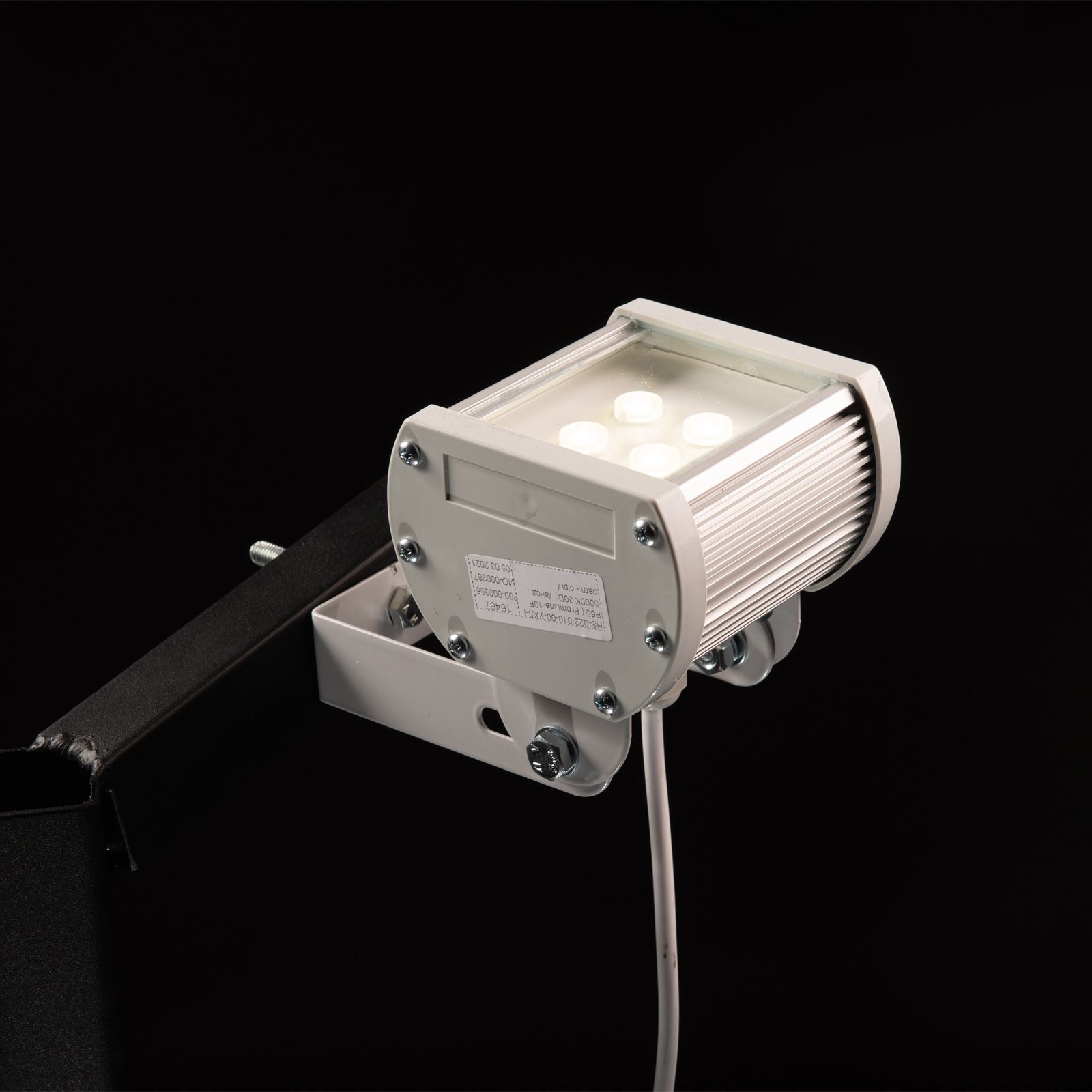

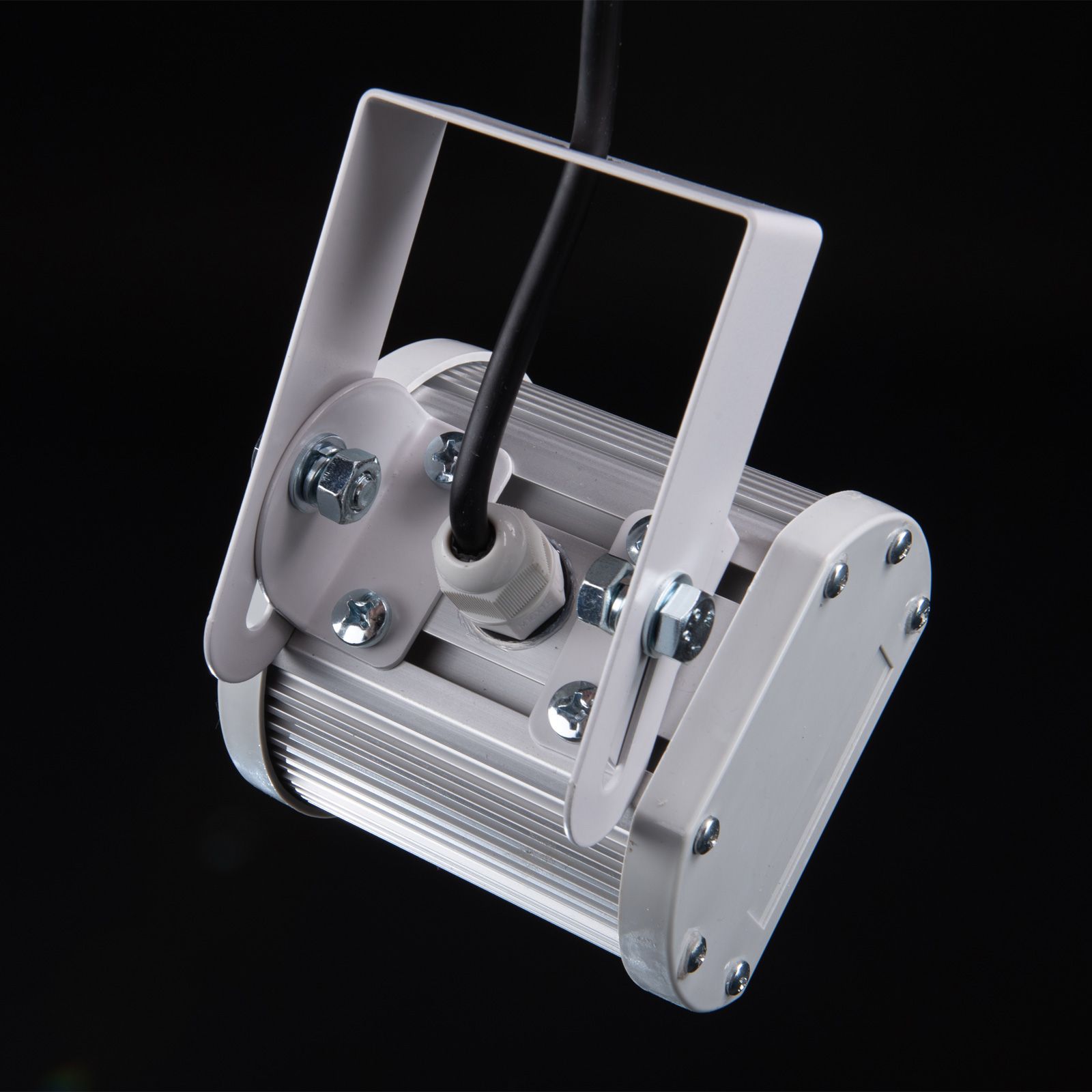

The PROMLINE-F-100-S fixture is installed on the facade of the building using the included mounting brackets, which allow for adjusting the direction of the light beam during installation.

A group of fixtures can be connected to a single power point thanks to the transit cable installed in the fixture (see instructions).
