Short description

RD series strip - premium level from Rishang. Glow color RGB. Power: 1m - 4.3W per color, 5m - 17.2W per color. Strip width - 10mm. Protection - IP20.

Minimum order - 5m.

Category LED strip
Manufacturer: RISHANG
Input Voltage, V ? 12V
Luminous Flux, Lm ? 560
Warranty term ? 5 years
Color Temperature ? RGB
Іван
Іван
Ваш менеджер з продажу
Telegram Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
5050-60-IP20-RGB-10-12 RD0060AQ

11691

In stock
Quantity: м

306,13 ₴

Parameters 5050-60-IP20-RGB-10-12 RD0060AQ

Input Voltage, V ? 12V
Luminous Flux, Lm ? 560
Warranty term ? 5 years
Color Temperature ? RGB
Power Consumption, W ? 12.9
Brand ? RISHANG
Type of LED Chip 5050 5x5 мм
Width ? 10 mm
Number of LEDs ? 60 pcs.m.
LED Strip Protection Rating ? IP20
CRI Index ? Non CRI

Description 5050-60-IP20-RGB-10-12 RD0060AQ

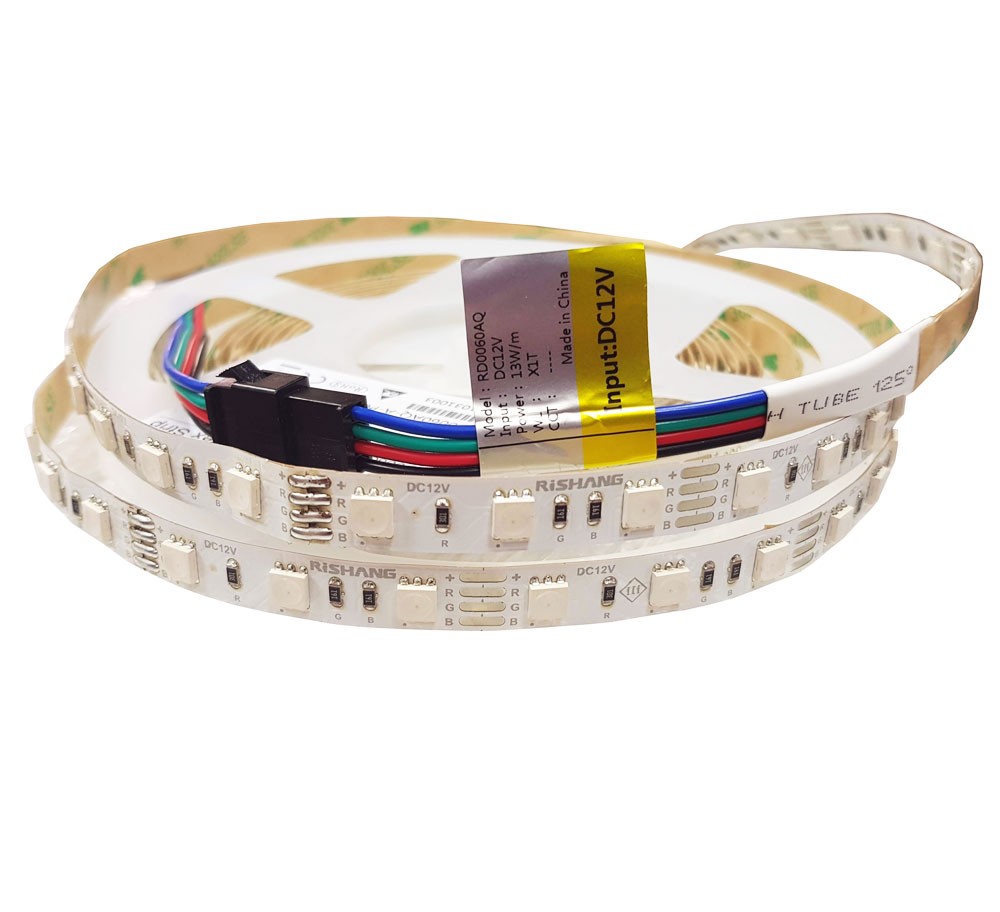

The premium LED strip from the manufacturer Rishang features RGB color illumination. Operating temperature: -25 ... +60 °C. The series of the strip - RD. Width of the strip - 10mm.

Red - 620-630nm - 4.3W.

Green - 510-530nm - 4.3W.

Blue - 450-470nm - 4.3W.

The RD series is a premium strip of the highest quality and reliability.
- made from high-quality flexible PCB with a thick copper layer of 3oz, coated with Sink tin technology, ensuring effective heat dissipation, uniform brightness, and minimal voltage drop along the entire length of the board;
- reliable and efficient chips from world manufacturers guarantee quality light characteristics throughout the entire service life;
- careful binning of LEDs for even and perfect color illumination;
- high flexibility of the strip and high resistance to oxidation of contact pads.

The adhesive base, branded 3M tape model 9495 has high adhesion to various surfaces and good thermal conductivity.

Consumption 1m: = 4.3W for each color.
Consumption 5m: = 17.2W (3.44W/m) for each color when connected from one side.

Minimum order - 5m.

Complies with CE, RoHS, UL standards.
Documents 5050-60-IP20-RGB-10-12 RD0060AQ
