SR-8001B

SR-8001B Expand

4164

New

In stock
Quantity:
Order quantity: 1 шт

1 010,23 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description

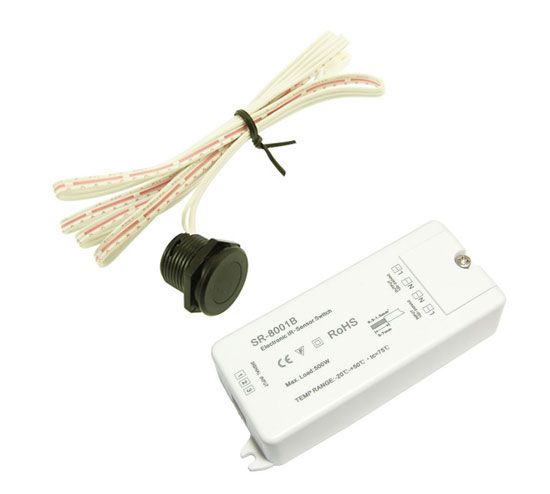

The controller with the SR-8001B sensor is designed for contactless control of light sources with a supply voltage of 100-240VAC, consisting of a control unit and an IR sensor.
Detection range: 1-6cm.
Input voltage: 100-240VAC.
Output current: 5A.
Output power: 500W.
Diameter of mounting holes: 10mm and 17mm.
Load type: HV halogen lamps, LED lamps, electronic ballast.
Manufacturer: SUNRICHER
Warranty term ? 3 years
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
SR-8001B

4164

In stock
Quantity: шт

1 010,23 ₴

Parameters SR-8001B

Warranty term ? 3 years
Brand ? SUNRICHER
Sensor Type ? IR

Description SR-8001B

The controller with the SR-8001B sensor is designed for contactless control (turning on and off) of a light source with a power supply voltage of 100-240VAC, consisting of a control unit and an IR sensor.

It activates when an object (such as a cabinet door, pantry door, etc.) exits the detection zone (1-6 cm) and deactivates when an object enters the detection zone (1-6 cm). In a stationary state - when an object is in the detection zone (cabinet door) - the sensor is "off".

Operating principle: To change the relay state, the sensor's sensitivity zone must be obstructed. When the zone is cleared, the sensor will immediately return to its original state. The original state of the sensor is a closed contact: "Light is on".

Example: Bringing an object close to the sensor will change the state. Removing the object will return the relay to its original state.

Technical specifications:
Product type - Switch.
Sensor type - IR (infrared) sensor.
Detection range - min. 0.01m; max. 0.06m.
Protection class - IP20.
Operating temperature: -20...+50°C.
Power supply voltage - 230V.
Output signal - On/Off 230 VAC.
Control channels - 1 CH (1 Mono channel).
Mounting method - Recessed in furniture.
Length - 82mm.
Width - 33mm.
Height - 20mm.
Diameter of mounting holes - 10mm and 17mm.
Maximum output power - 500W.
Maximum load current - 5A.

Application: installed in furniture, shelves, niches, and other interior items.

Complies with CE and RoHS standards.

Documents SR-8001B
