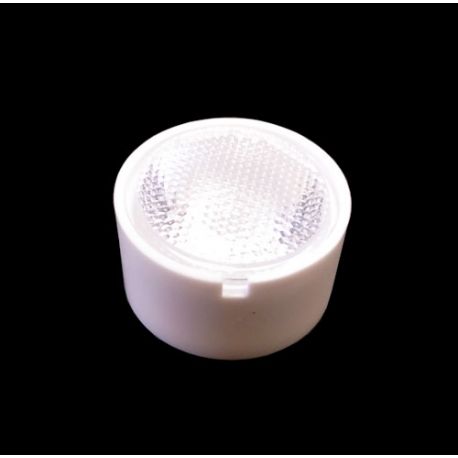

Lens HX-CPM-60L angle 60 degrees with white holder

Lens HX-CPM-60L angle 60 degrees with white holder Expand

9870

New

Not available

21,94 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
The HX-CPM-60L lens with a 60-degree angle and white holder has compact dimensions.
Lens diameter without holder: 20mm.
Lens diameter with holder: 21.45mm.
Lens height with holder: 11.75mm.
Light dispersion angle: 60°.
Category Optics for LEDs
Manufacturer: HX
Warranty term ? 1 year
Type of LED Chip 3.5x3.5mm CREE
Богдан
Богдан
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Lens HX-CPM-60L angle 60 degrees with white holder

9870

Not available

21,94 ₴

Parameters Lens HX-CPM-60L angle 60 degrees with white holder

Beam Angle 60
Warranty term ? 1 year
Brand ? HX
Type of LED Chip 3.5x3.5mm CREE
Lens diameter 20
Optics type Single Lenses

Description Lens HX-CPM-60L angle 60 degrees with white holder

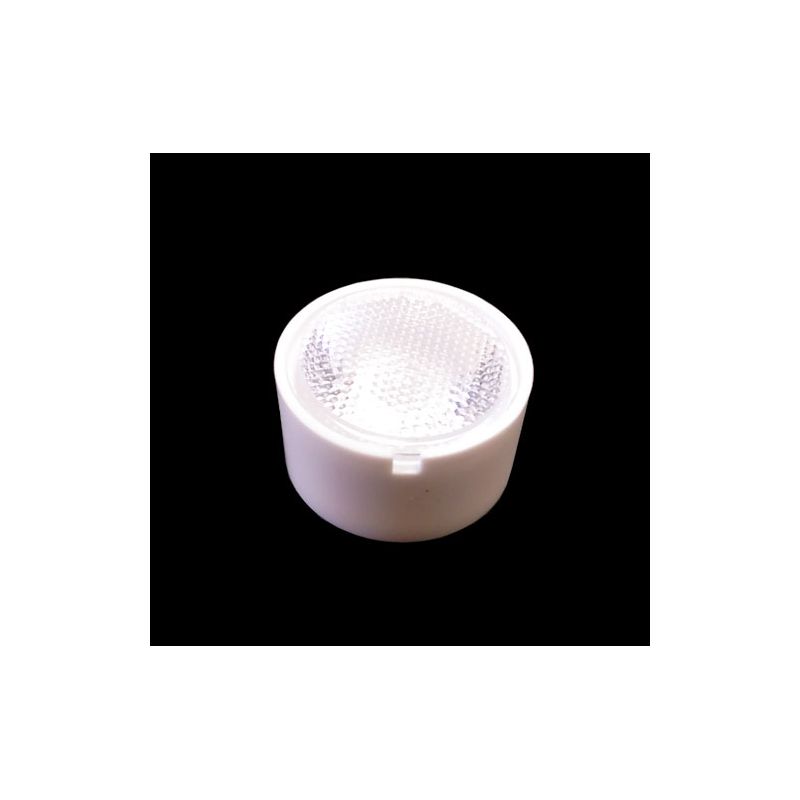

The HX-CPM-60L lens with a 60-degree angle and white holder has compact dimensions, ensuring ease of installation and placement of powerful LEDs.
For LED diodes REE XP-C, XP-E, XP-G/G2; CREE XT-E; OSRAM SSL80, SSL150, Square; Seoul Z5P, Z5M; Luxeon T, Federal 3535; LG 3535, Samsung 3535; Nichia 119A.

Diameter of the lens without holder: 20mm.

Diameter of the lens with holder: 21.45mm.

Height of the lens with holder: 11.75mm.

Light beam angle: 60°.

Possible supply on request (2-5 weeks) of any quantity.
