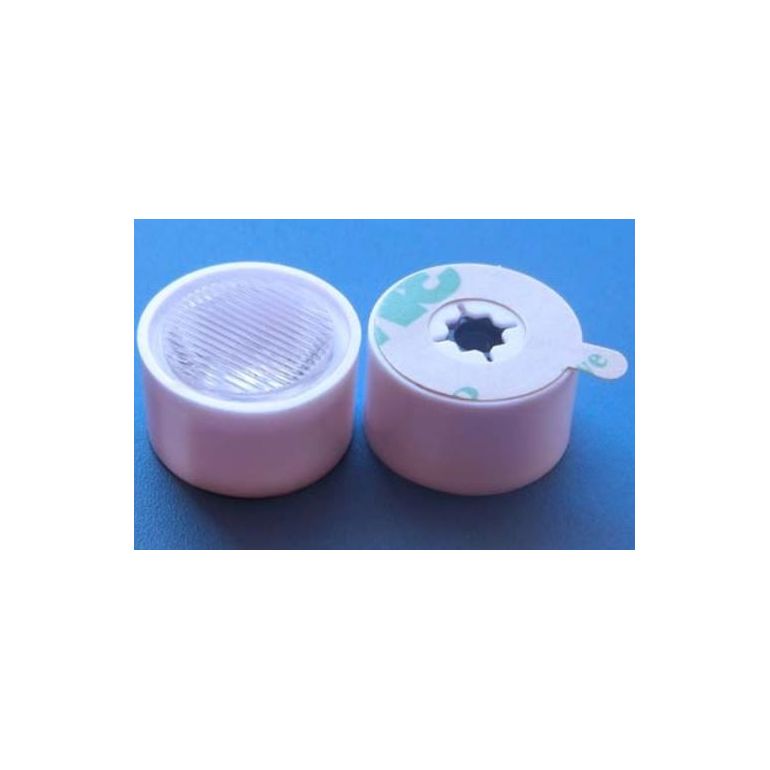

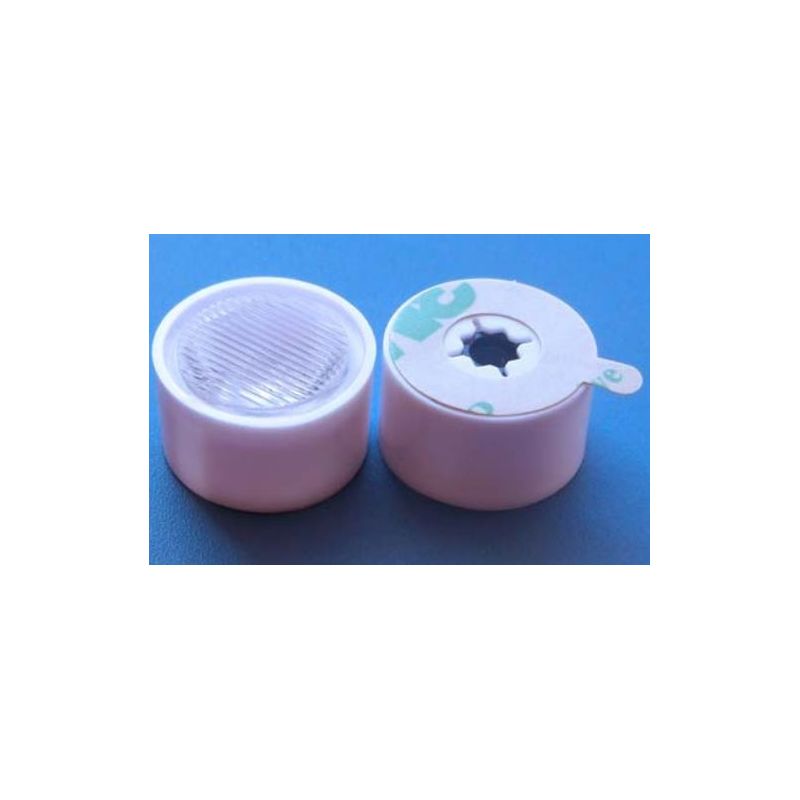

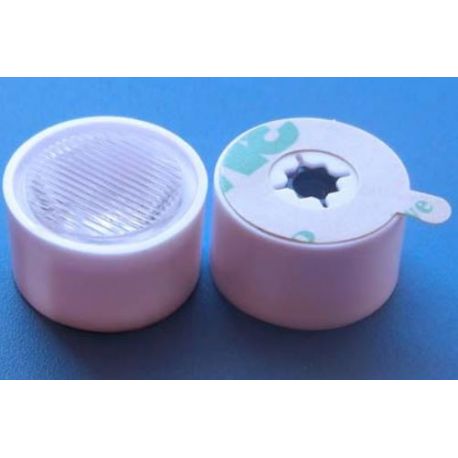

Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape

Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape Expand

7896

New

In stock
Quantity:
Order quantity: 1 шт

29,54 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description
The lens HX-15P-3060 has a 30x60 degree angle with a white 3M adhesive holder and compact dimensions. Applications: street lighting, decorative lighting, architectural lighting.
Lens material: PMMA.
Holder material: PC.

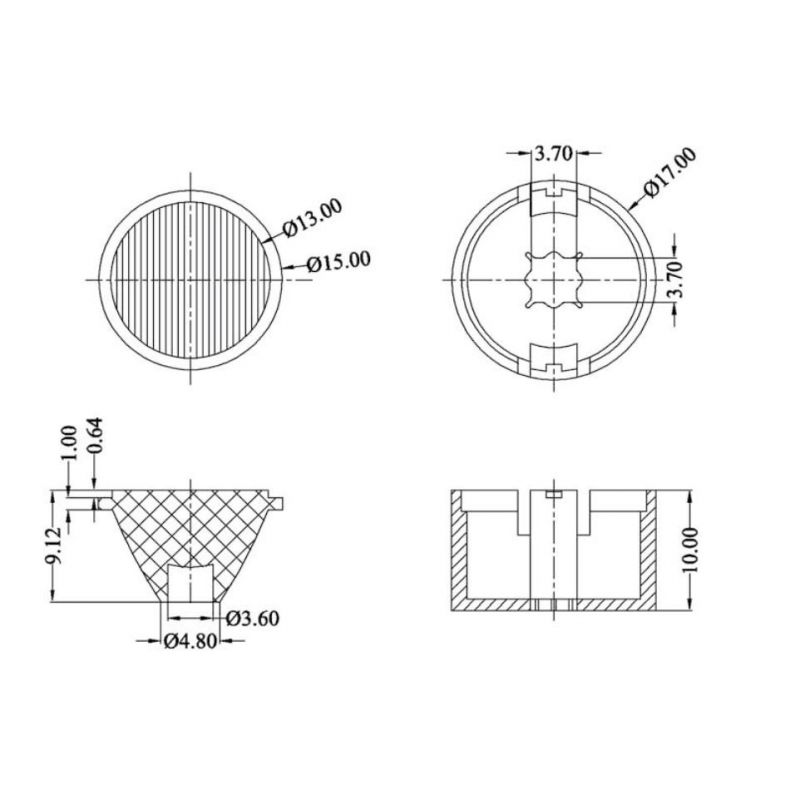

Lens diameter without holder: 15mm.
Lens diameter with holder: 17mm.
Lens height without holder: 9.12mm.
Lens height with holder: 10mm.
Light dispersion angle: 30*60°.
Category Optics for LEDs
Manufacturer: HX
Warranty term ? 1 year
Type of LED Chip 3.5x3.5mm CREE
Богдан
Богдан
Ваш менеджер з продажу
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape

7896

In stock
Quantity: шт

29,54 ₴

Parameters Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape

Beam Angle 30/60
Warranty term ? 1 year
Brand ? HX
Type of LED Chip 3.5x3.5mm CREE
Lens diameter 17
Optics type Single Lenses

Description Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape

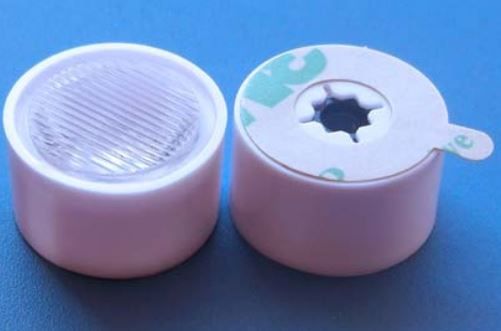

Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape - a compact and highly efficient lens.
Designed for street lighting, decorative lighting, architectural lighting.

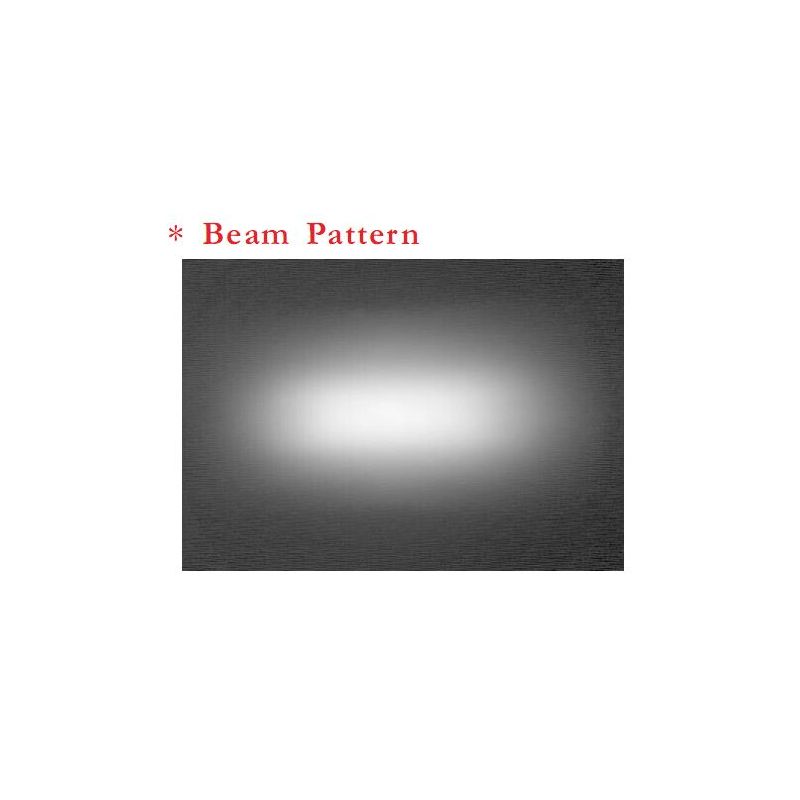

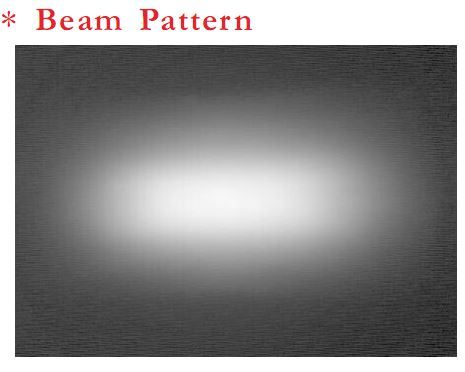

The optimized aspheric profile of the lens allows generating several different beam shapes: narrow, medium, elliptical, wide beam.
For LED diodes - CREE X-PC/E/G/G2/TE, Seoul Acriche Z5 Federal 3535, Nichia 119A LG/Samsung 3535, OSRAM OSLON SSL/Square.

Lens material: PMMA.

Holder material: PC.

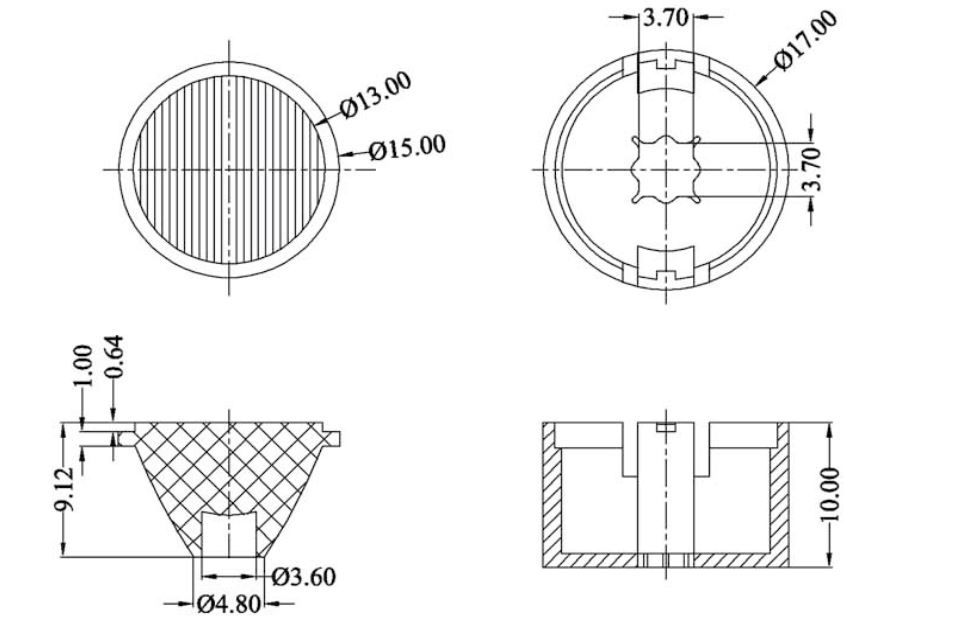

Diameter of the lens without holder: 15mm.

Diameter of the lens with holder: 17mm.

Height of the lens without holder: 9.12mm.

Height of the lens with holder: 10mm.

Light dispersion angle: 30*60°.

Operating temperature: -40...+70°C.

Certification: SGS, RoHS.

Possible supply on order (2-5 weeks) of any quantity.

Documents Lens HX-15P-3060 angle 30x60 degrees with white holder 3M tape
