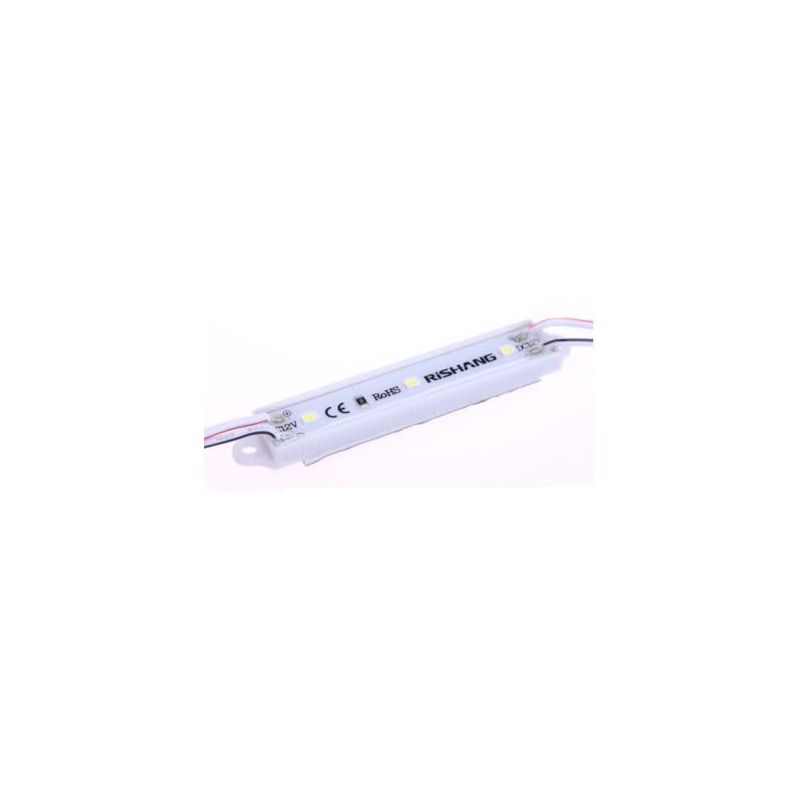

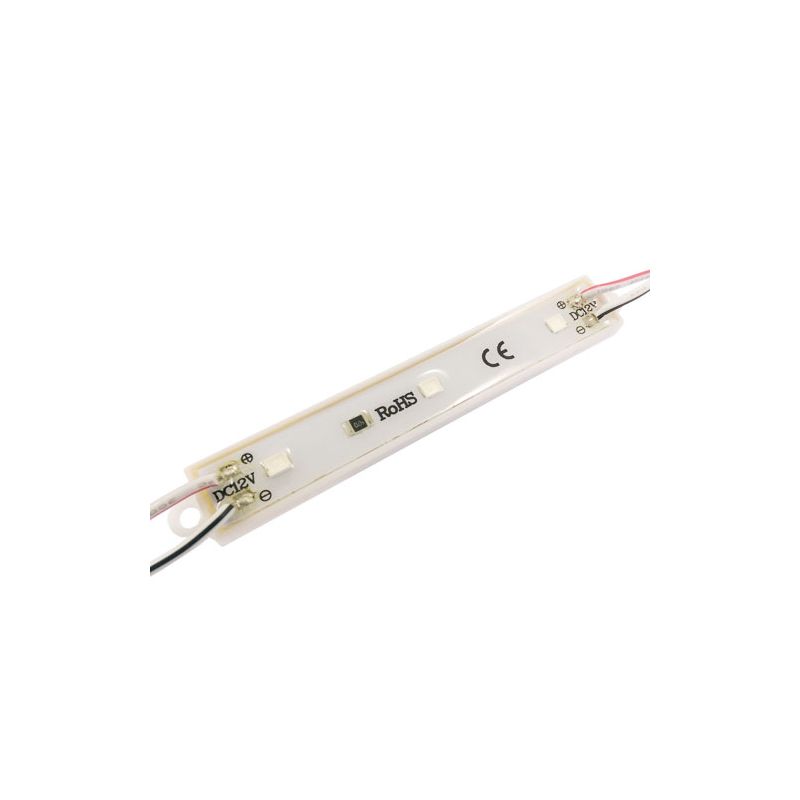

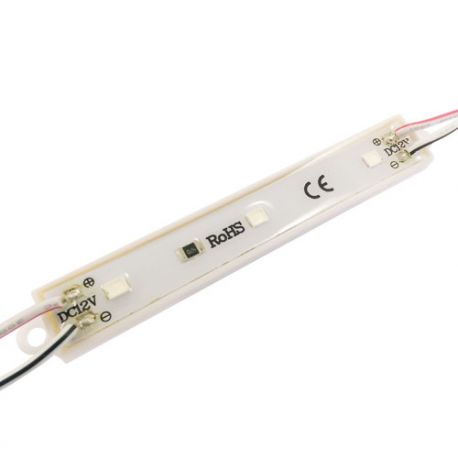

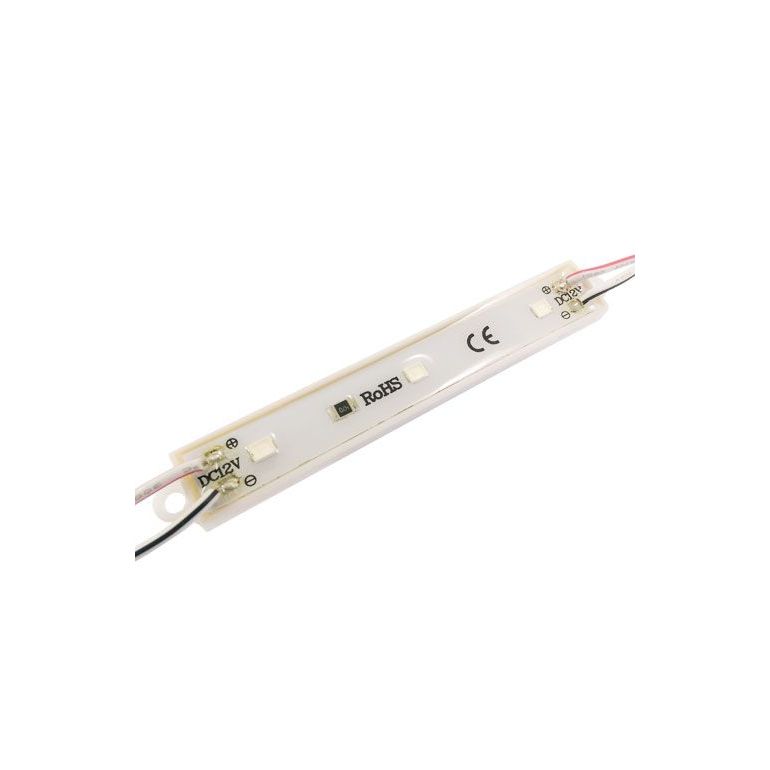

LED module M143TA blue RISHANG

LED module M143TA blue RISHANG Expand

7867

New

In stock
Quantity:
Order quantity: 1 шт

12,21 ₴

/ Штука

Need help? (consultation, payment, delivery)
Short description

LED module M143TA blue RISHANG - a high-quality module with low power consumption, convenient for installation. It is used in the advertising field and decorative-artistic interior design.
Size - 87.8x12.5x4.4mm.
Supply voltage - 12V.
Power - 0.72W.
Beam angle - 115°.
Luminous flux - 9Lm/unit.
Protection degree - IP 65.

Minimum order quantity is 1 unit.

Manufacturer: RISHANG
Input Voltage, V ? 12V
Luminous Flux, Lm ? 9
Warranty term ? 3 years
Color Temperature ? Blue
Денис
Денис
менеджер
Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
LED module M143TA blue RISHANG

7867

In stock
Quantity: шт

12,21 ₴

Parameters LED module M143TA blue RISHANG

Input Voltage, V ? 12V
Luminous Flux, Lm ? 9
Warranty term ? 3 years
Color Temperature ? Blue
Power Consumption, W ? 0.7
Brand ? RISHANG
Number of LEDs ? 3 pcs.m.

Description LED module M143TA blue RISHANG

LED module M143TA blue RISHANG - a high-quality module with low power consumption, fast and convenient to install.

Features:

  • compact dimensions - 87.8x12.5x4.4mm;
  • power supply voltage - 12V;
  • power - 0.72W;
  • light color - blue;
  • beam angle - 115°;
  • diode consumption - 60mA;
  • luminous flux - 9Lm/unit;
  • SMD 2835 LEDs with high luminous efficacy;
  • max. cascade quantity up to 20 units;
  • protection against dust and water due to the use of potting technology;
  • protection rating - IP 65;
  • operating temperature -25 ... +60°C;
  • secured with double-sided adhesive tape;
  • can cut the strip between each module;
  • complies with CE, RoHS.

Application:

  • widely used for decorative and artistic interior design: backlighting of niches, contours, shelves, ceilings, architectural elements;
  • manufacturing of exhibition and advertising structures with lighting;
  • furniture backlighting.

Cut is multiple of 1 unit.

Documents LED module M143TA blue RISHANG
