ZIGZAG-3x495/120-S

Technical Specifications of ZIGZAG-3x495/120-S

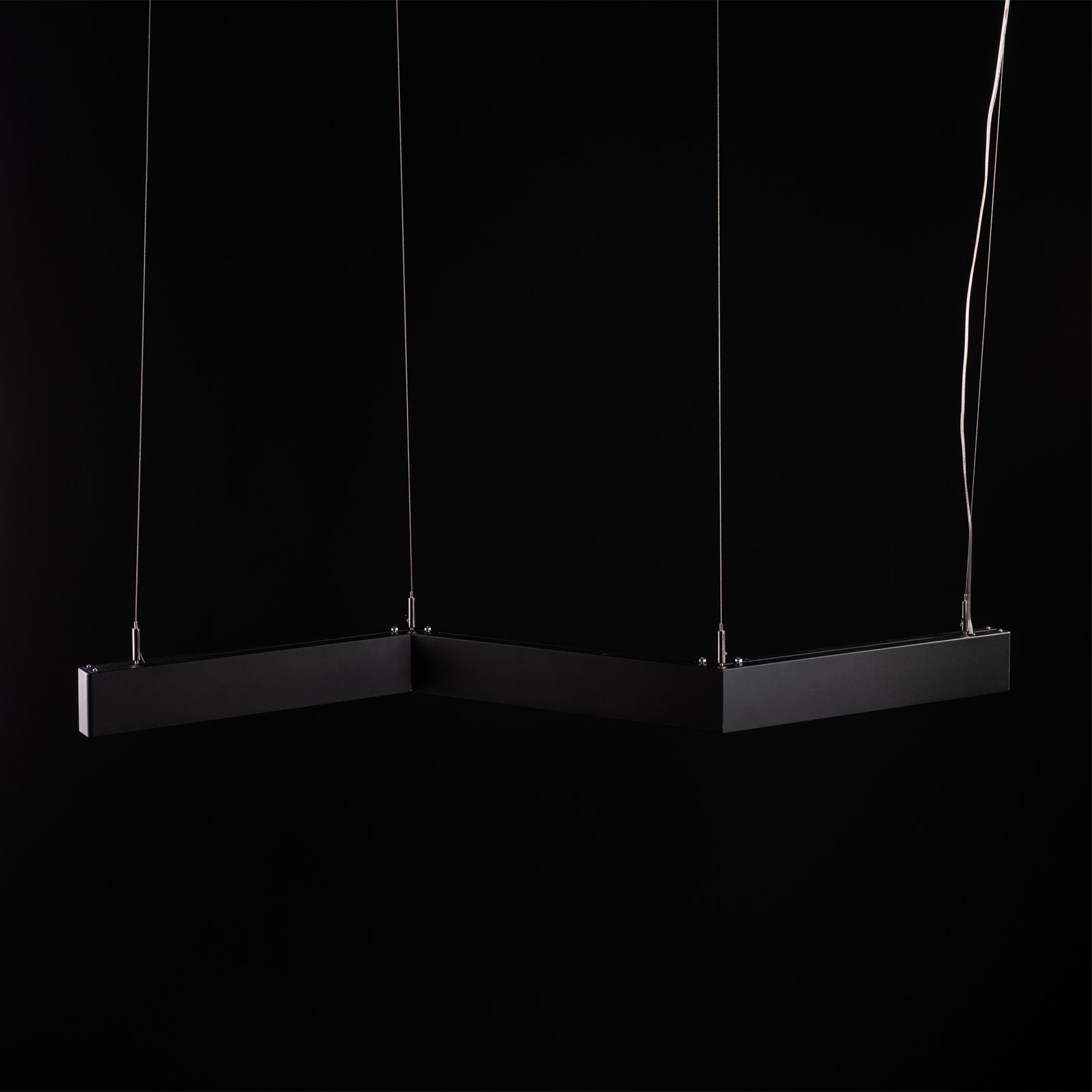

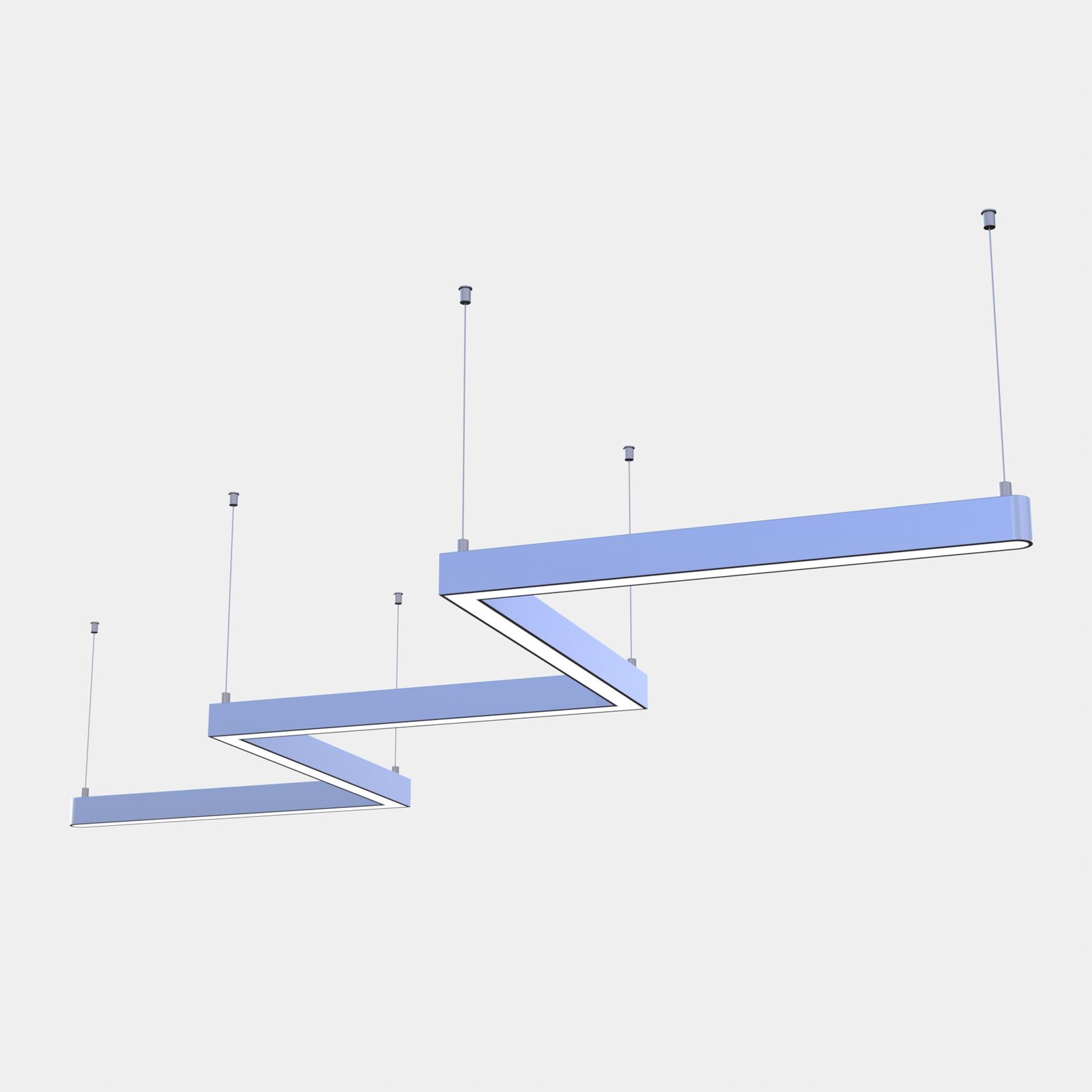

The design of the ZIGZAG-3x495/120-S light fixture in the basic configuration consists of three linear elements. The length of each side of the zigzag (A, B) is 49.5 cm. The angle between the zigzag elements (C) is 120 °. There are two available performance options: full power (46 W) or half power (26 W). The luminous flux at full power is 4400 lm, while at half power it is 2500 lm.

High energy efficiency and uninterrupted operation of the light fixture throughout its service life are ensured by high-quality LEDs from the American manufacturer CREE, as well as optimal LED modes selected by our engineers.

Color Rendering Index

This model of the light fixture has a color rendering index CRI>80, which is the standard for residential premises and ensures high-quality color reproduction of surrounding objects (natural skin color, food, furniture, interior items).

Color Temperature

The color temperature of the ZIGZAG light fixtures is available in three options: warm light (3000 K), neutral light (4000 K), and daylight (5000 K) to choose from.

Construction of ZIGZAG-3x495/120-S

The body of the ZIGZAG-3x495/120-S light fixture is made of anodized aluminum. There is an option to choose the color of the coating: unpainted (silver color of the aluminum body) or powder-coated in black or white. By agreement, painting in any required color is possible.

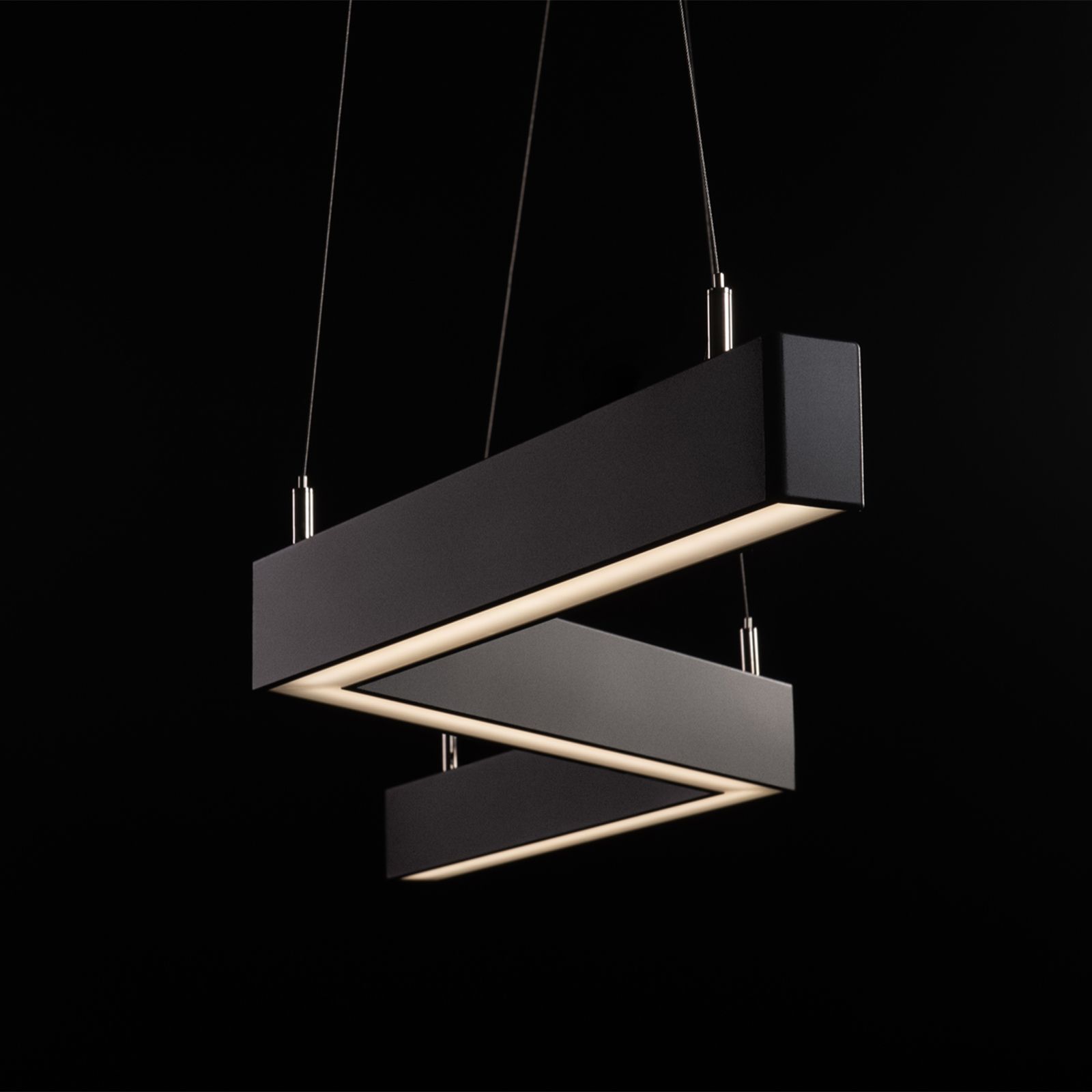

The anodized aluminum body provides lightweight construction, heat dissipation, and protection of the electrical components of the light fixture. The use of a high-quality polycarbonate diffuser creates uniform, soft, and comfortable lighting, as well as eliminates glare.

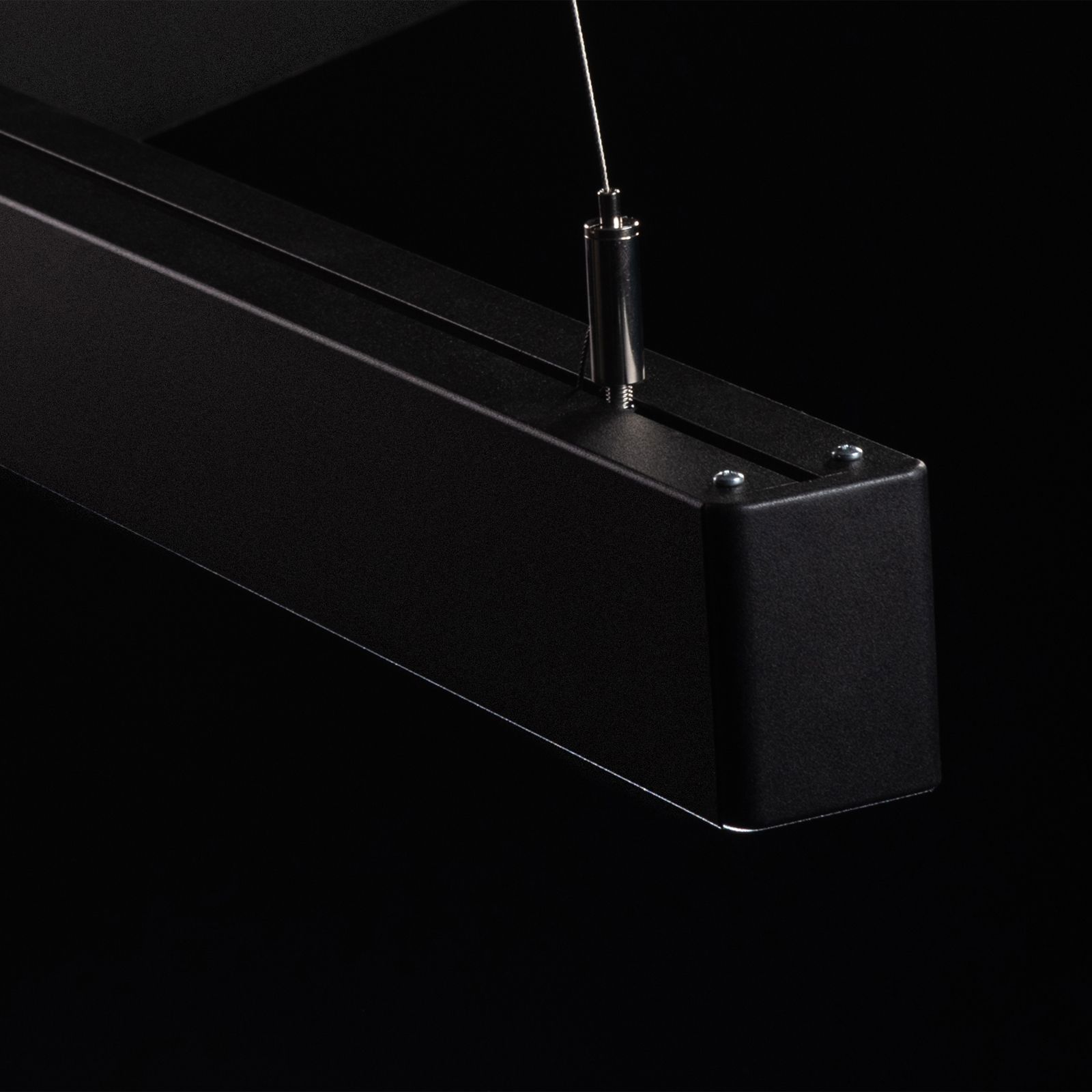

Ends (Ends) of the Light Fixture

The ends of the ZIGZAG-3x495/120-S light fixture can be:

• flat, forming right angles. This clear rectangular shape of the light fixture is suitable for a strict, restrained, and concise interior;
• rounded, which gives the light fixture smooth shapes and allows it to delicately fit into any interior.

The end caps are available in three variations: plastic round caps, plastic flat caps, and metal flat caps.

There are also several options for the power cable color: white, black, or with transparent insulation.

The ZIGZAG-3x495/120-S light fixture includes a surface-mounted or recessed socket. This allows for a neat arrangement of the power cable exit from the ceiling.

Installation

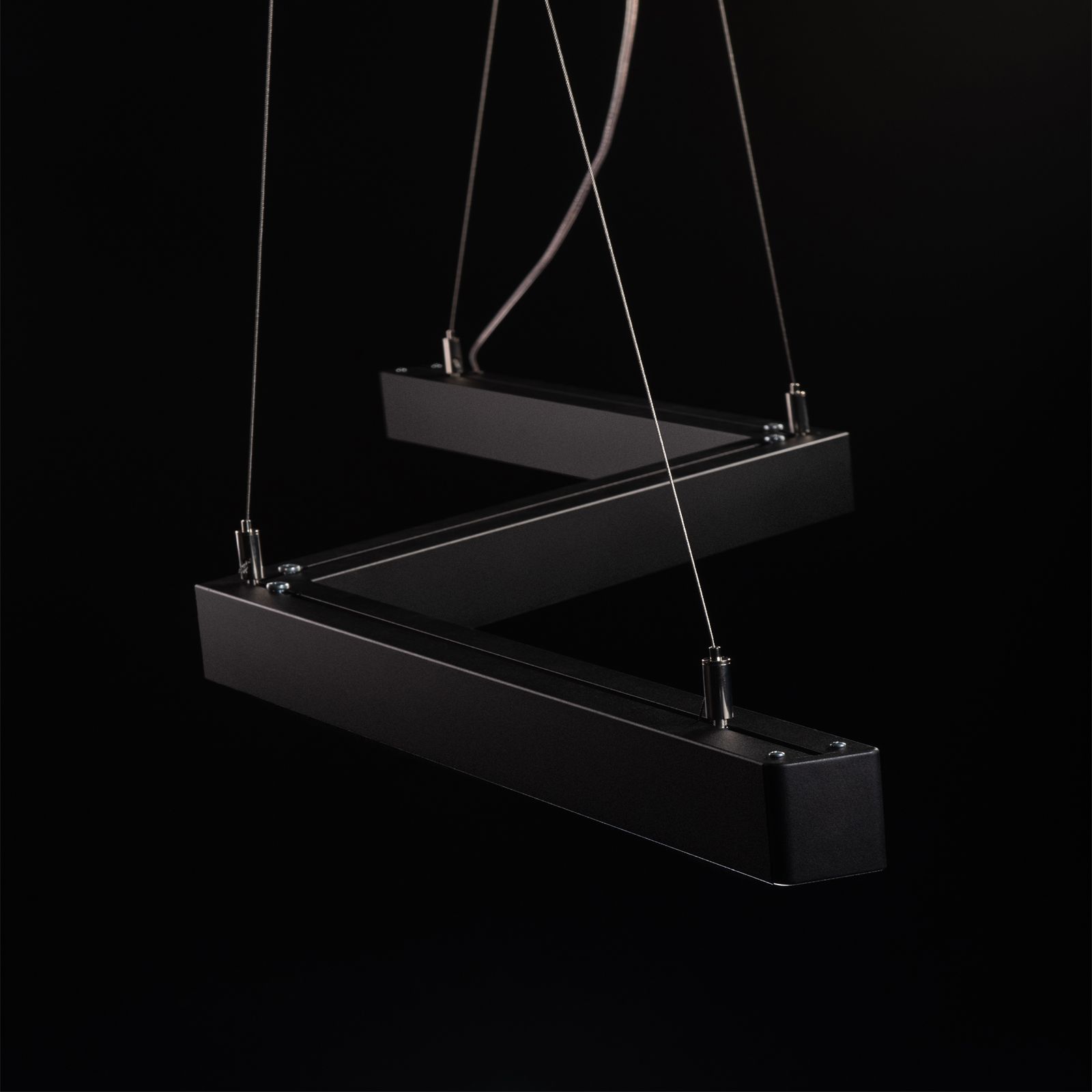

ZIGZAG light fixtures can be mounted to both the ceiling and the wall.

Installation methods (depends on the specific model):

• without suspension by direct surface mounting;
• on metal cables with adjustable lengths from 0.1 to 1.5 m (available in the configuration).

Extended suspension cables (3 and 5 m) are also available for order.
