CYLI-A-90-S

Short description Parameters Description Projects and news Analogues
CYLI-A-90-S Expand

19383 CYLI-A-90-S
Upon request

Price from3 485,00 ₴

Select model features
Need help? (consultation, payment, delivery)

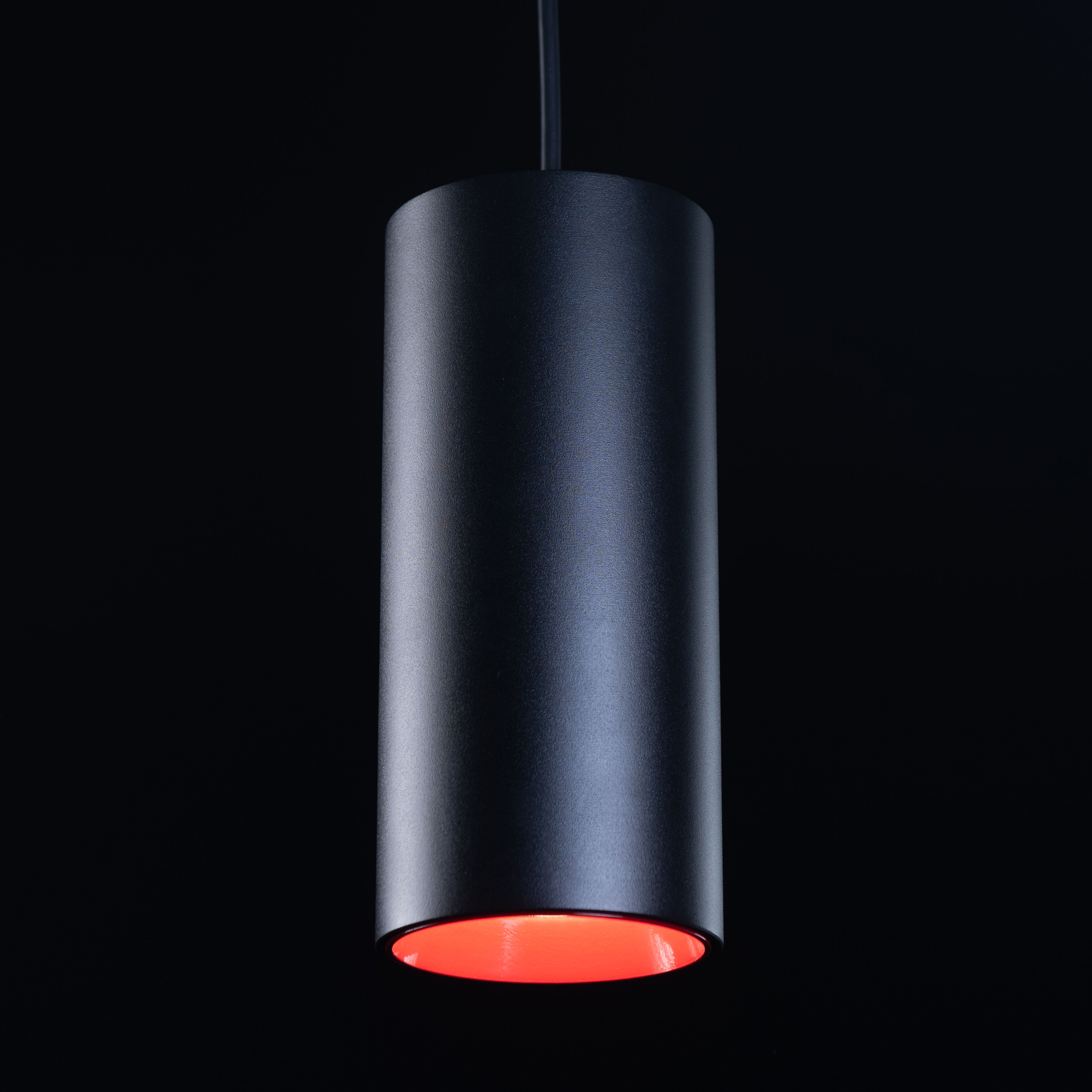

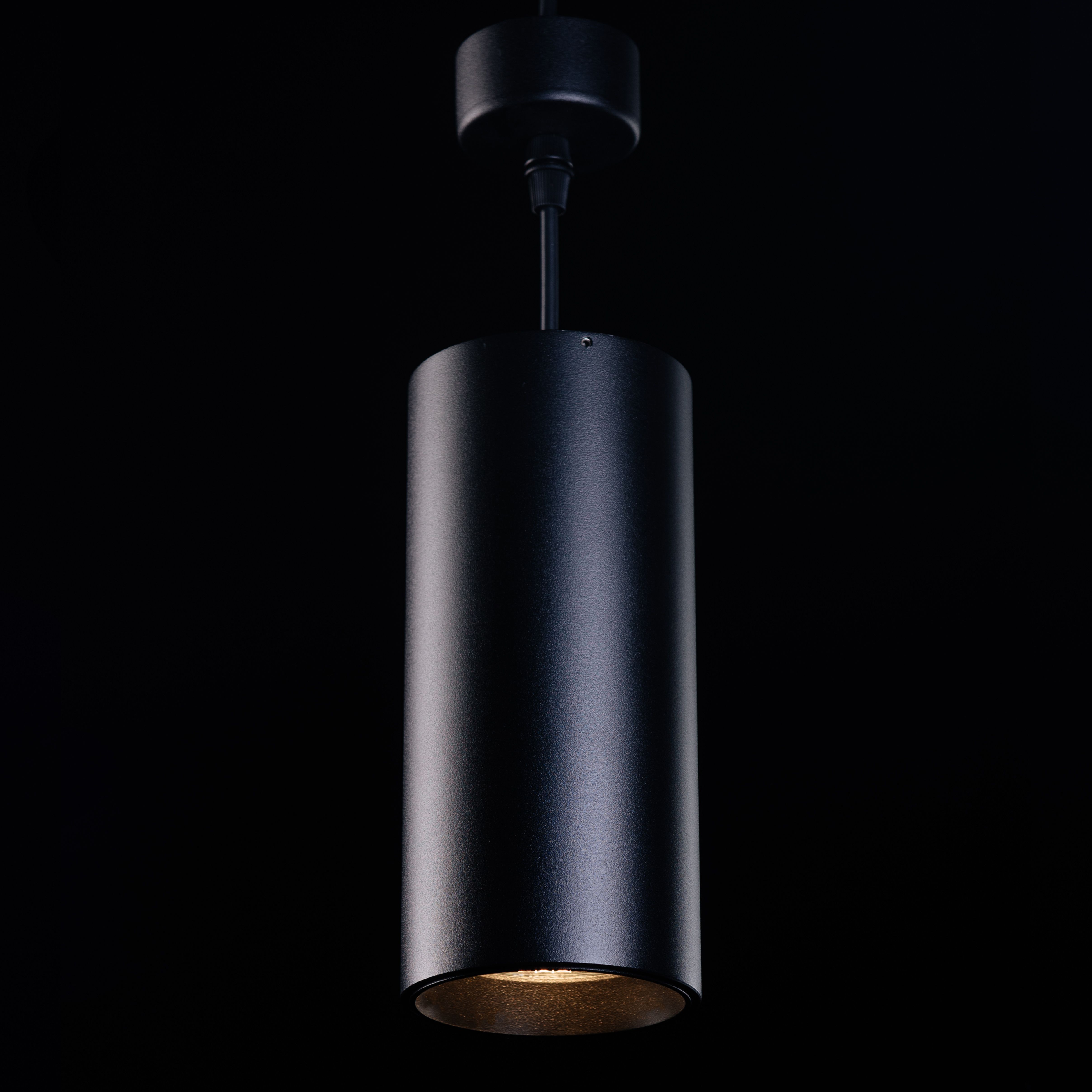

Cylindrical Light CYLI-A-90-S - a LED pendant light that has a narrow directional light output, allowing you to place light accents where you need them.

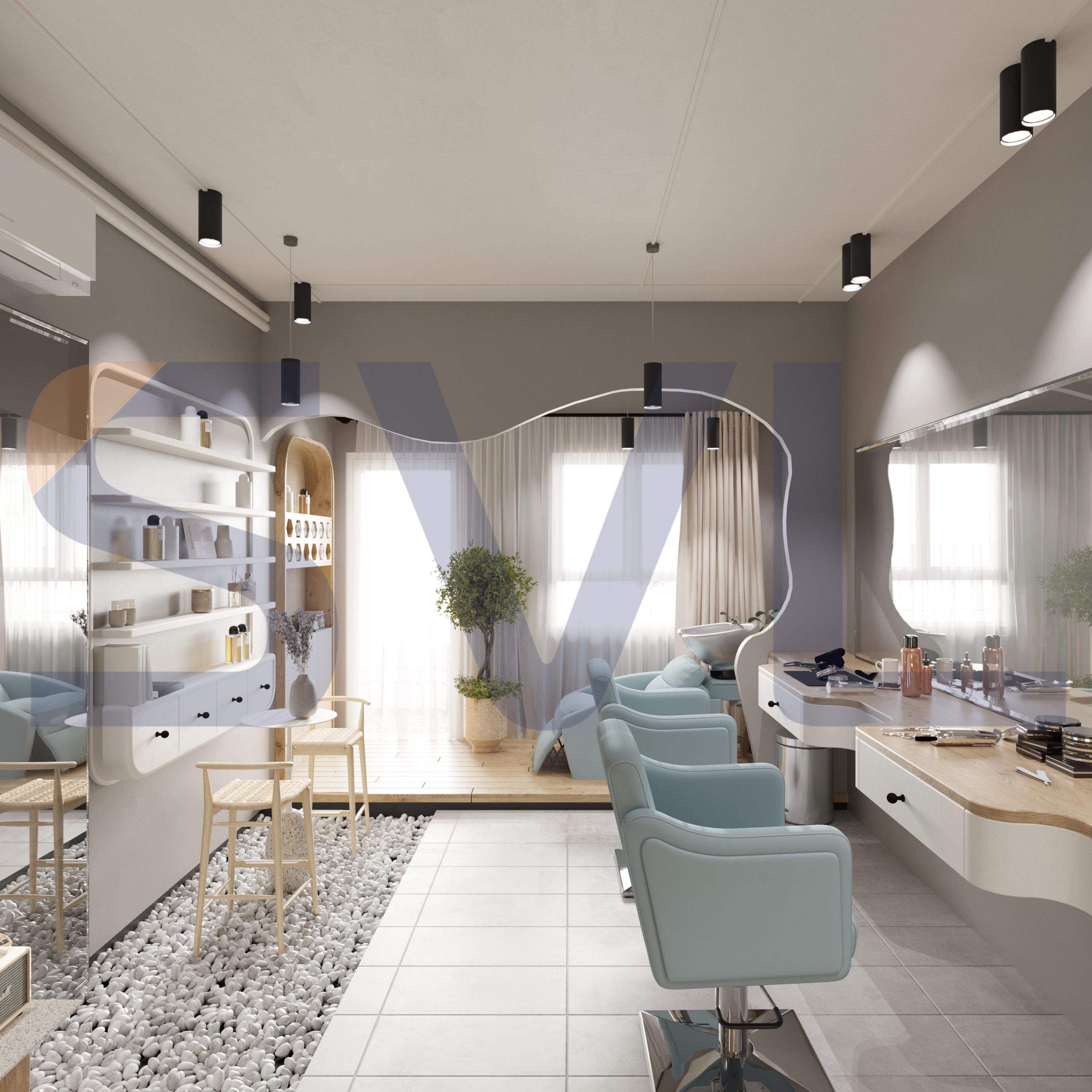

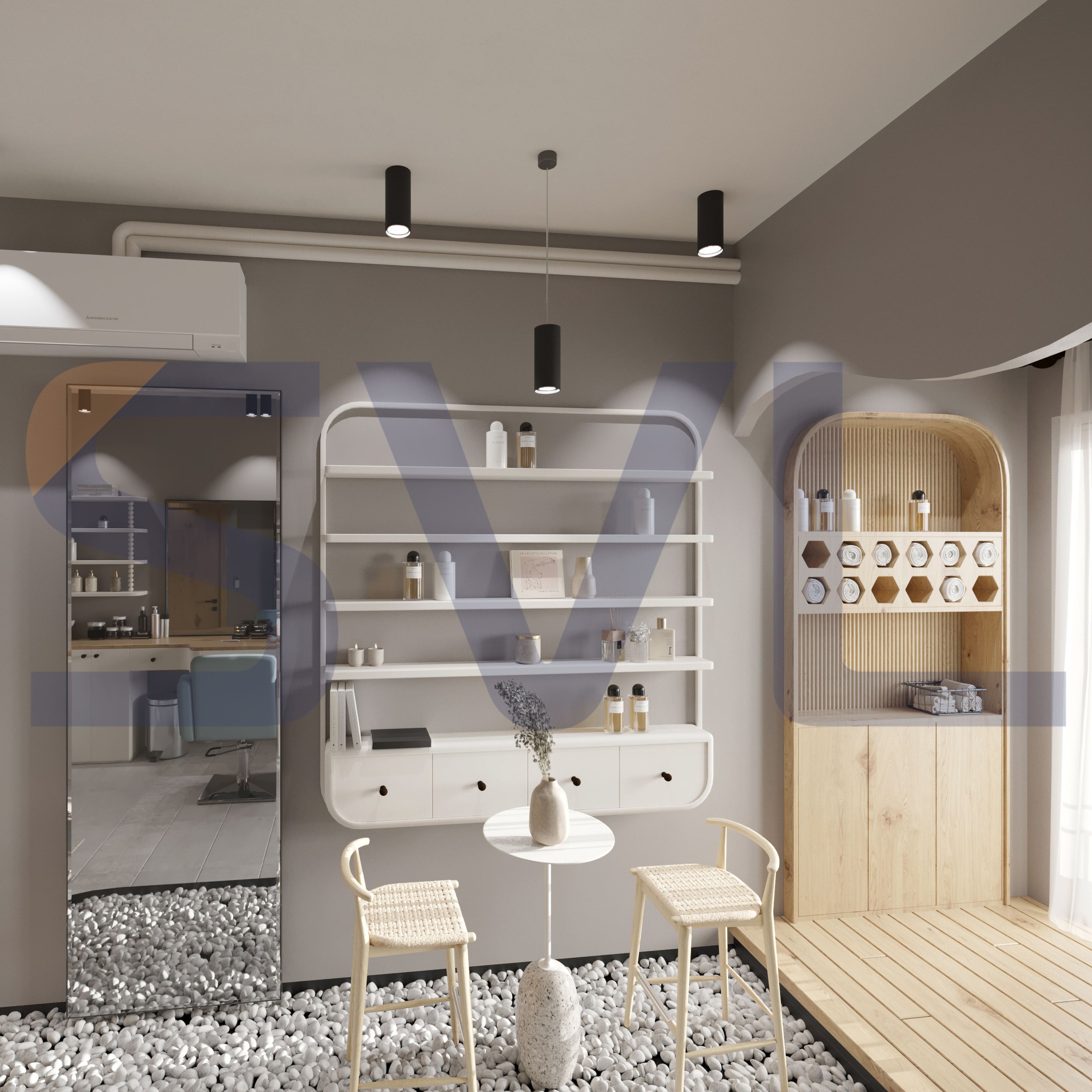

The adjustable suspension length allows you to create the optimal lighting effect or use the lights as background illumination.

Category Professional lighting
Manufacturer: SVL TM
Type of Construction ? Cylindrical
Application ? Office, Hotel, Restaurant, Retail
Product Class Pendant Lights
All parameters
More than 10 years of experience
Modern production in Ukraine
Customization of products to meet customer needs
A team of professionals who are passionate about their work
Денис
Денис
менеджер
d.mironenko@svl.com.ua
+38 067 105 43 40
Viber Whatsapp
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Features CYLI-A-90-S
  • 16
  • 28
  • 30
  • 13
  • 27
  • 19
  • 15
    • Expand
  • 1 700
  • 1 800
  • 3 500
  • 2 000
  • 1 600
  • 1 500
  • 2 500
  • 2 600
  • 1 200
  • 2 800
  • 1 900
  • 1 400
  • 1 100
    • Expand
  • 3000K
  • 4000K
  • 5000K
  • 2700K
    • Expand
  • CRI>80
  • CRI>90
  • 45°
  • 60°
  • 36°
  • 120°MT
  • 24°
    • Expand
  • DALI
  • Without dimming
  • Black
  • White
  • Other
  • Suspension 1.5m
  • Overlay
  • Suspension 3.0m
  • Suspension 5.0m
    • Expand
  • RAL9005TX
  • RAL9016TX
  • RAL7024MT
  • RAL9005TX-3003GL
  • RAL9005TX/OP1
  • RAL9005TX/OP3
  • RAL7024MT/OP1
    • Expand
  • 220 AC

All lighting specifications and design elements of the lamps can be selected individually.

To determine the required light fixtures power and quantity, you can use our lighting calculation service. Our specialists will be happy to assist you.

CYLI-A-90-S
Price from 3 485,00 ₴

Денис
Денис
менеджер
d.mironenko@svl.com.ua
+38 067 105 43 40
Пн-Пт 9:00 - 18:00

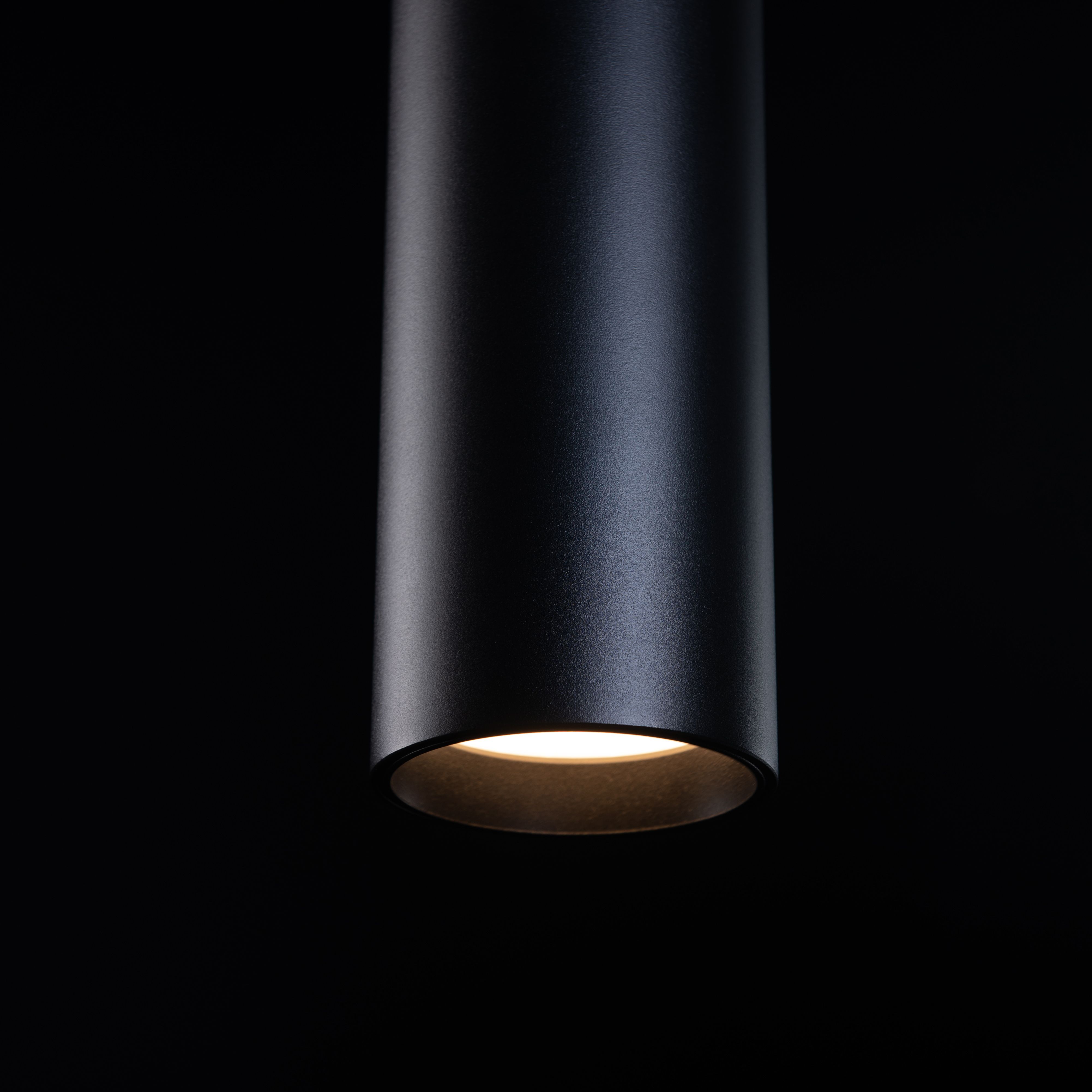

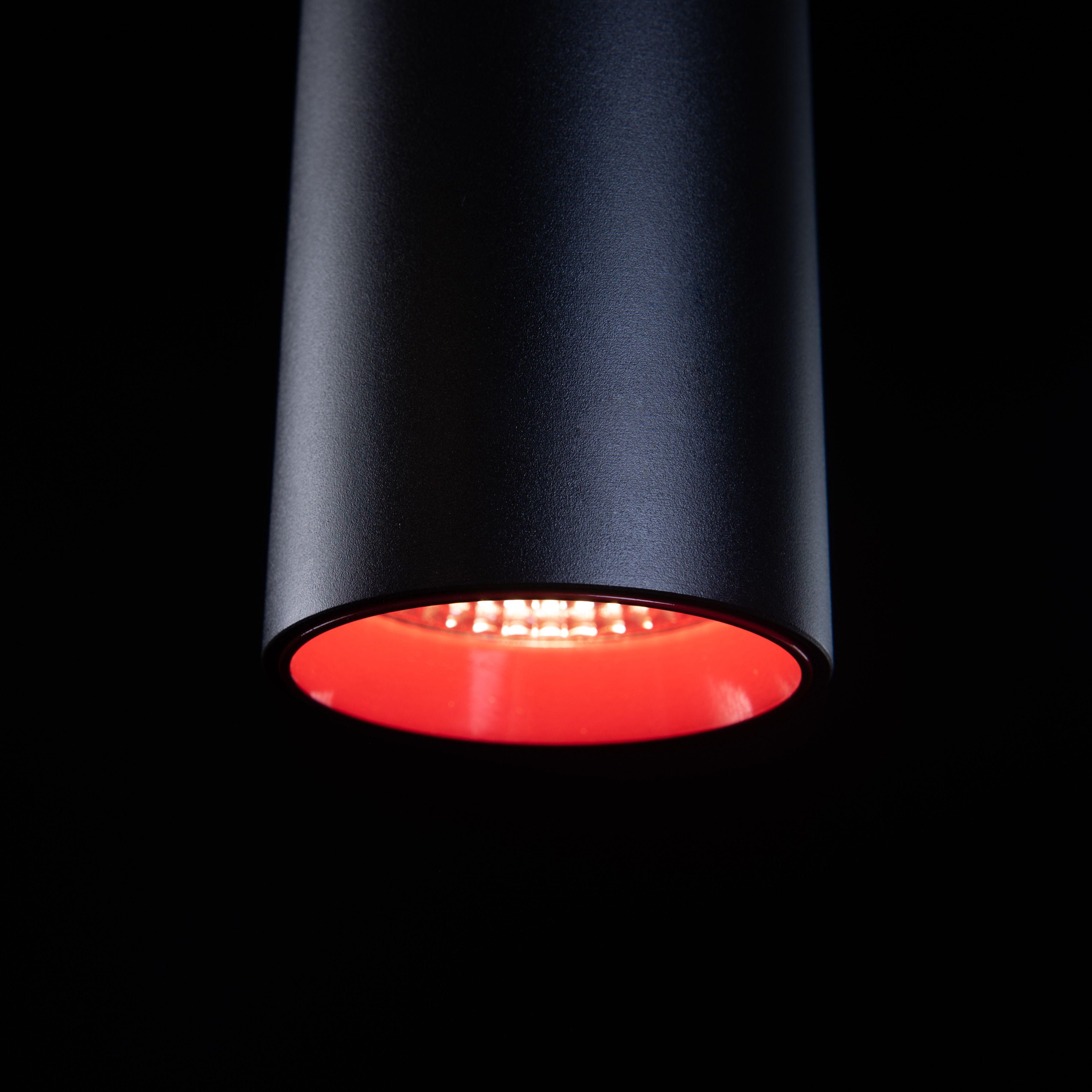

Cylindrical Light CYLI-A-90-S

The cylindrical light CYLI-A-90-S is a suspended LED light of cylindrical shape. It is designed to create high-quality uniform lighting in dry residential and commercial spaces (apartments, shops, hotels, restaurants, offices, and schools).

Technical Specifications of CYLI-A-90-S

The configuration of the light CYLI-A-90-S offers a choice of power: 15 W, 20 W, or 28 W, with an available light output range of 1900 lm, 2600 lm, 3300 lm (for 4000/5000K CRI80). It has a high efficiency of 120-130 lm/W.
Its height is 200 mm, and the diameter is 90 mm.

The light is equipped with COB LED matrices from well-known brands such as CREE / Samsung / Tridonic, whose impeccable quality ensures 5 years of operation with minimal light output loss, meaning 50,000 hours of service. This is the official warranty period for CYLI.

cyli
cyli

Color Rendering Index

The client can choose as an alternative LEDs with a higher color rendering index CRI>90 or CRI>95 or CRI>97. Optionally, the light can support brightness control through various control protocols: DALI, DMX. This allows not only the use of various lighting scenarios but also extends the lifespan of the LEDs.

Color Temperature

The color temperature of the CYLI-A-90-S lights is available in three options: warm light (2700 K and 3000 K), neutral light (4000 K), and daylight (5000 K) to choose from.

Design of CYLI-A-90-S

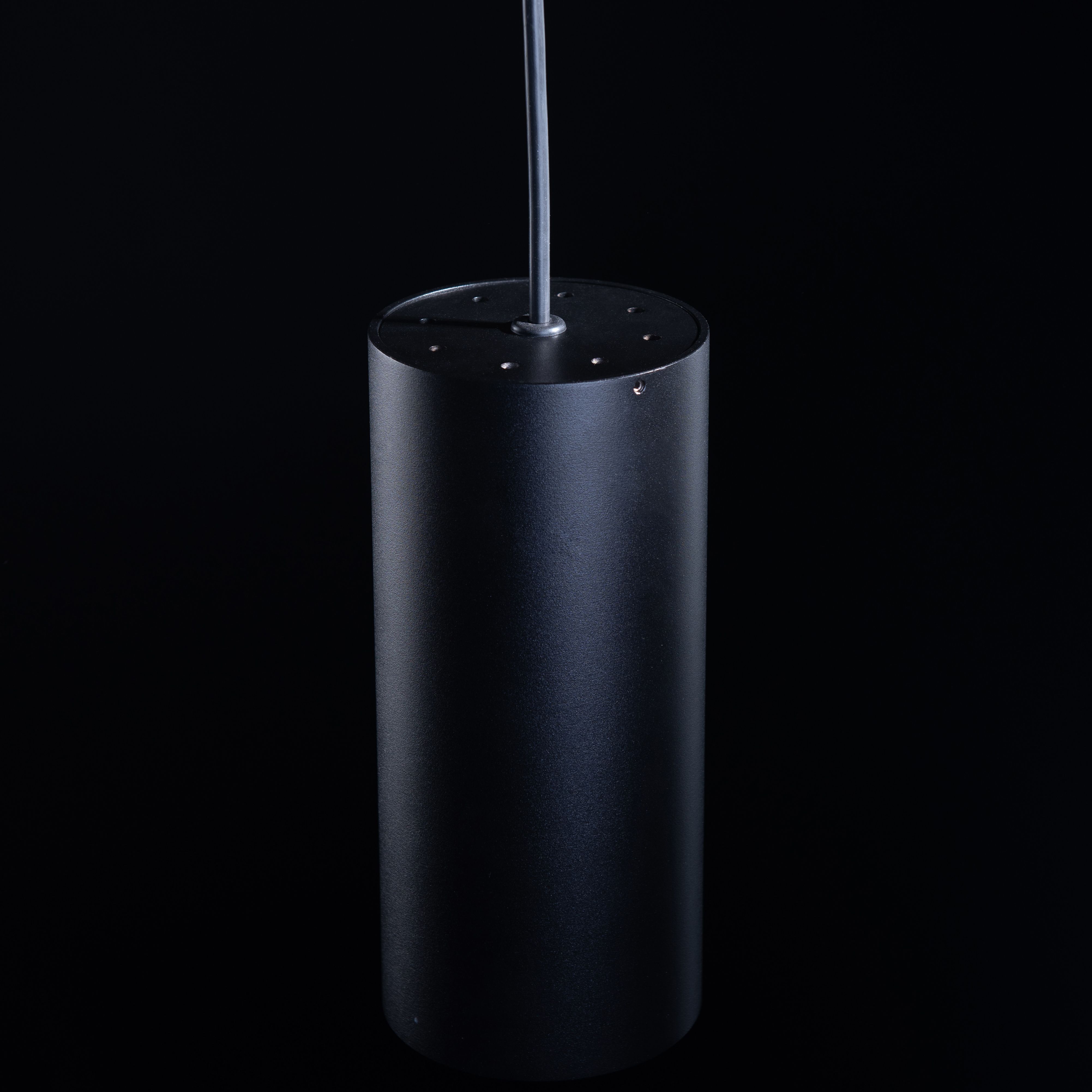

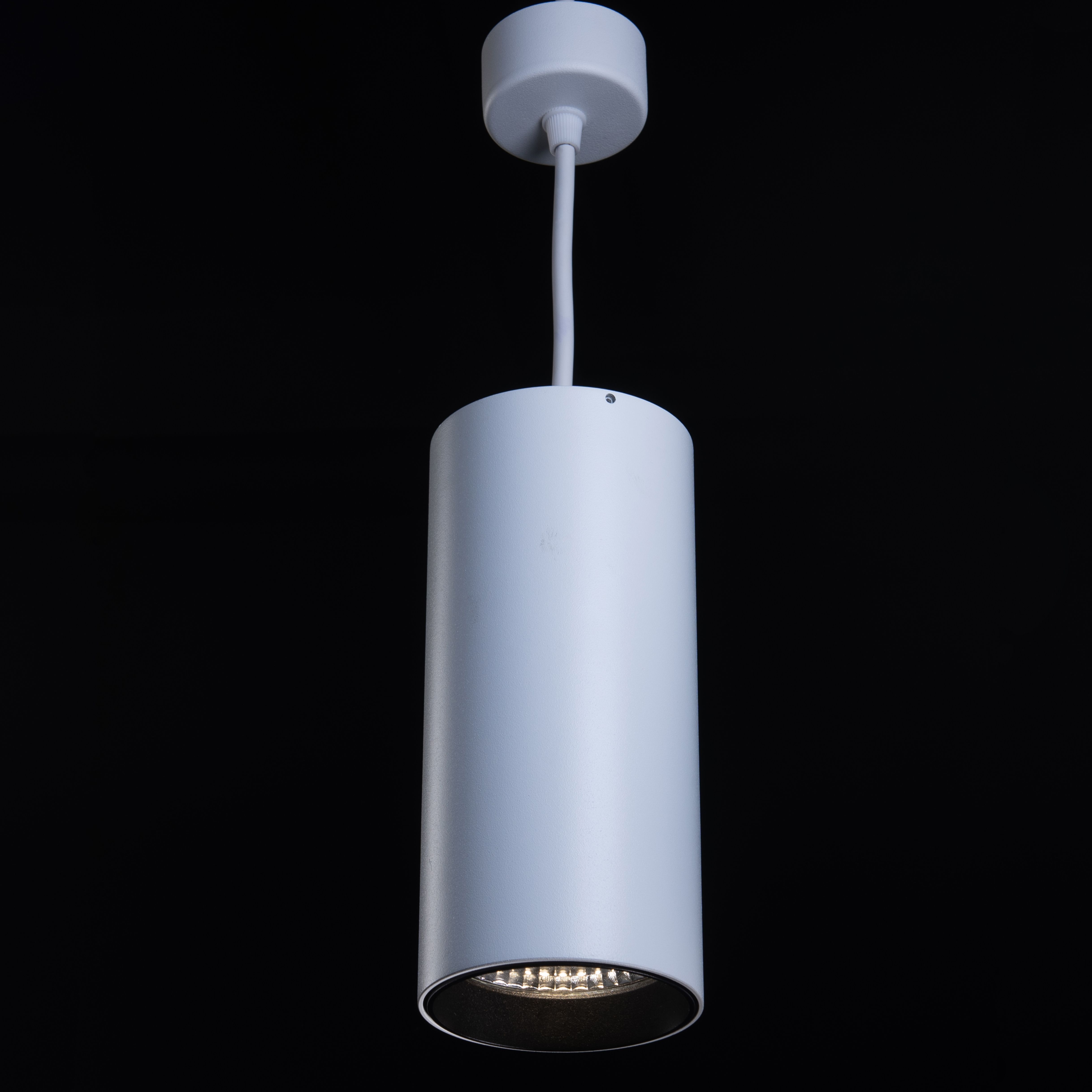

The housing of the light is made of aluminum. There is an option to choose the color of the coating: black or white. By agreement, painting in any required color from the RAL palette is possible.

The material of the housing ensures the lightness of the design, heat dissipation, and protection of the electrical components of the light. Thanks to the use of high-quality reflectors with different emission angles, the necessary illumination can be created in the required areas. Also, instead of reflectors, it is possible to use a high-quality matte diffuser to create uniform, soft, and comfortable lighting, as well as to eliminate the glare effect.

There are also several options for the color of the power cable: white, black, or with transparent insulation.

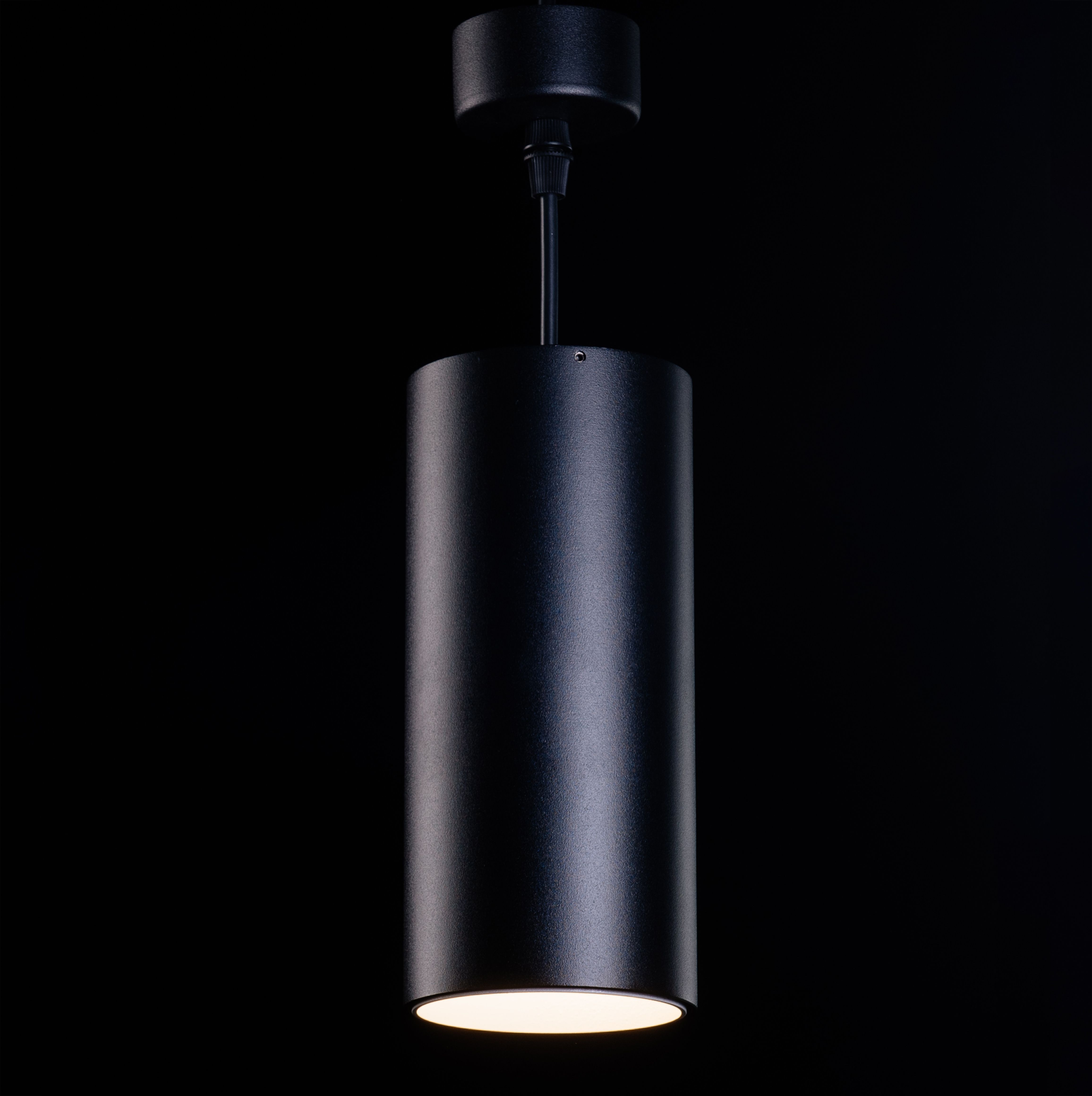

The configuration of the CYLI-A-90-S light includes the presence of a surface-mounted or recessed socket. This allows for a neat arrangement of the power cable exit from the ceiling.

cyli

Installation

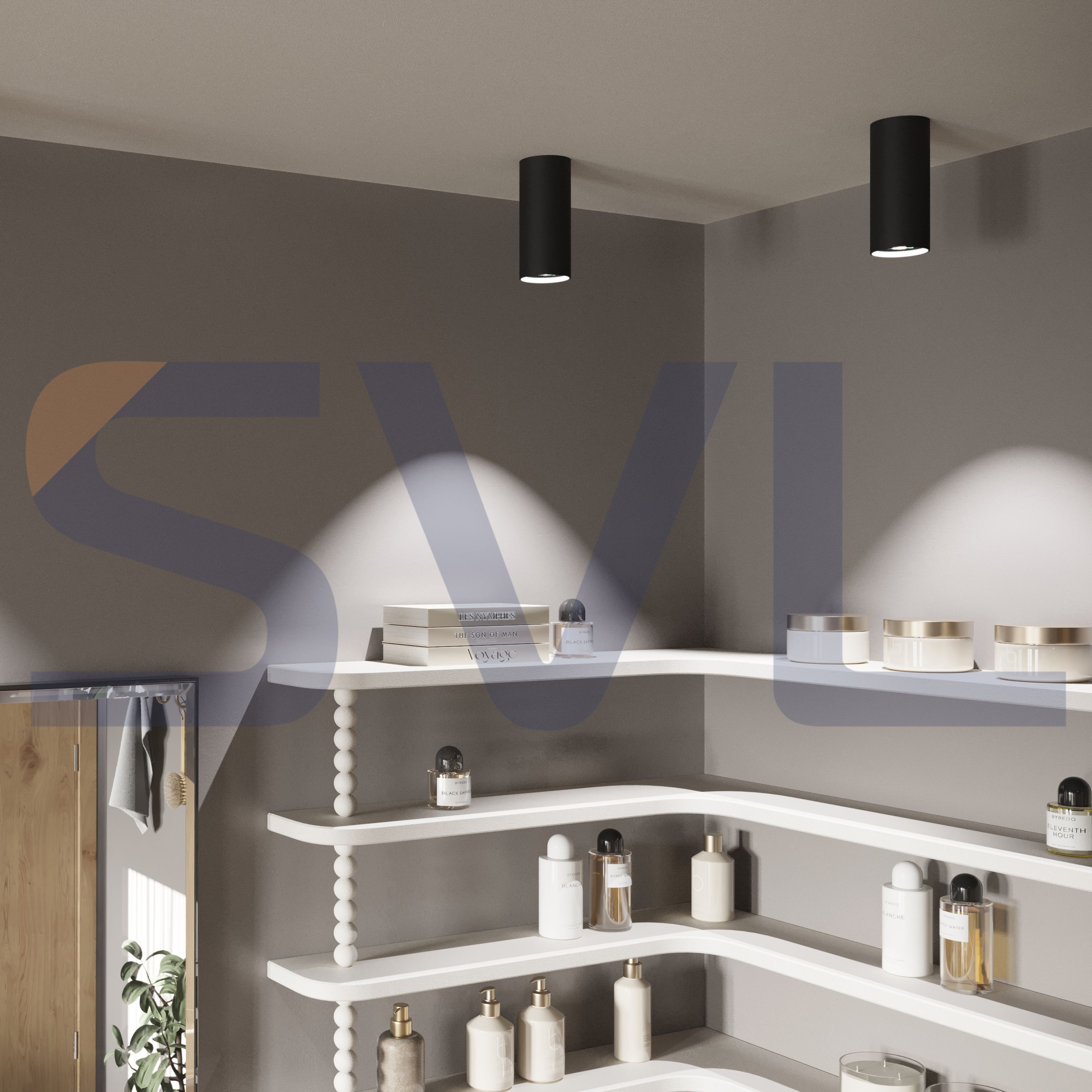

The CYLI-A-90-S lights can be installed to the ceiling in several ways.

Installation Methods (depends on the specific model):

  • without suspension by direct surface mounting;
  • on a wire with adjustable length from 0.1 to 1.5 m (available in the configuration).

Suspension cables of increased length (3 and 5 m) are also available for order.

Parameters CYLI-A-90-S
Brand ? SVL TM
Standardization Type S
Type of Construction ? Cylindrical
Application ? Office, Hotel, Restaurant, Retail
Product Class Pendant Lights
Diameter Size 90
