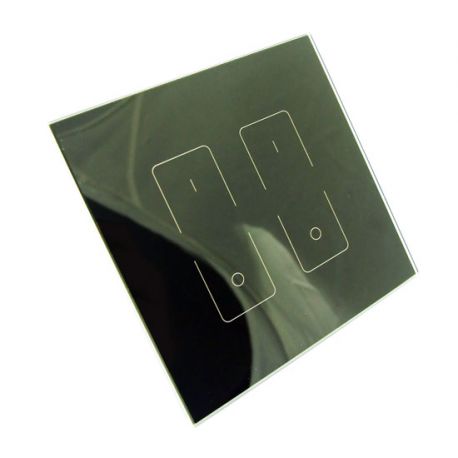

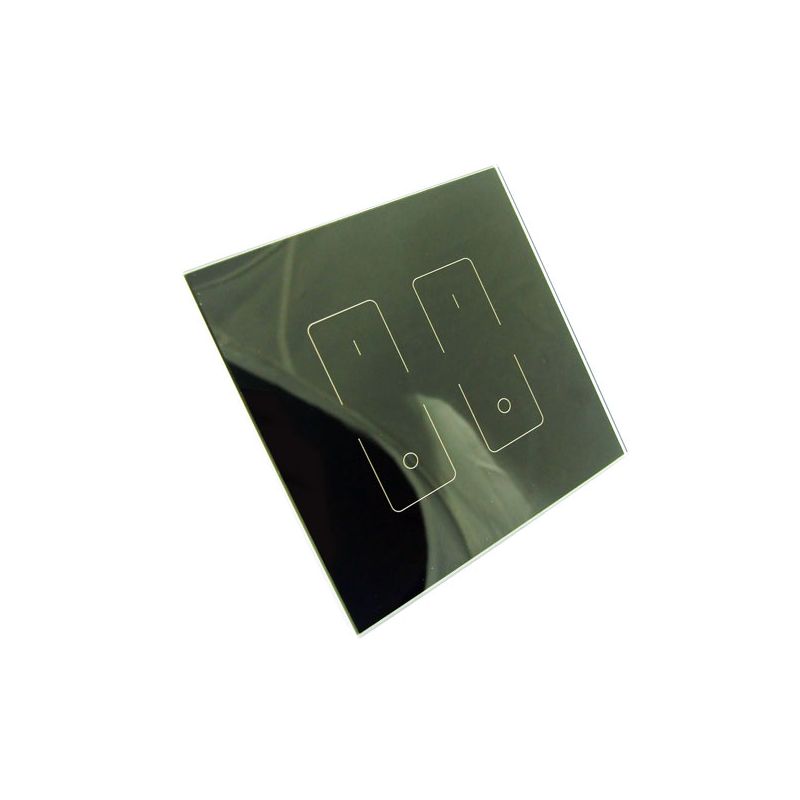

Built-in panel SR-2805T1

Built-in panel SR-2805T1 Expand

5430

New

Not available

Need help? (consultation, payment, delivery)
Short description

The built-in panel SR-2805T1 is a high-quality panel with 2 control zones from the manufacturer SUNRICHER.
Control panel type - touch, wall-mounted, built-in.
Interacts with controllers - SR-2501N, SR-2501N EA, SR-2501NS.
Communication remote/controller - RF radio.
Power supply - 12-24VDC/110-240VAC.
Size 86*86*29 mm.

Complies with CE and RoHS standards.

Category Lighting control
Manufacturer: SUNRICHER
Input Voltage, V ? 12V/24V
Warranty term ? 3 years
Number of Zones ? 2
Іван
Іван
Ваш менеджер з продажу
Telegram Viber
Пн-Пт 9:00 - 18:00
Delivery across Ukraine Delivery in Kyiv Pickup Payment Warranty

Delivery is carried out by Nova Poshta.

For orders over 5000 UAH, delivery to the branch is free of charge.

The cost of home delivery is paid by the Customer.

Learn more

The company's courier service can deliver orders within Kyiv and the suburbs (up to 15 km).

The delivery cost is agreed upon with the manager.

For orders over 5000 UAH, delivery is free of charge.

Learn more

Pickup of paid goods is carried out from the company's office at the address: Kyiv, Vaclav Havel Boulevard, 8 "BC Xspace".

Pickup schedule: Mon–Fri, from 8:00 to 18:00

Learn more

Payment for goods is made in a non-cash form.

Non-cash payment can be made both with VAT and without VAT.

Payment can also be made via the LiqPay payment system on our website.

Learn more

The standard warranty for SVL luminaires is 5 years.

All products of other brands are covered by the manufacturers' warranties, the terms of which are specified in the product documents.

The warranty is valid provided that the operating conditions are observed and the required documents are available.

Learn more...

Hide
Built-in panel SR-2805T1

5430

Not available

Parameters Built-in panel SR-2805T1

Input Voltage, V ? 12V/24V
Warranty term ? 3 years
Brand ? SUNRICHER
Number of Zones ? 2
Data (Signal) RF-пульт
Related products 5431-4849-7689

Description Built-in panel SR-2805T1

High-quality built-in panel SR-2805T1 from the manufacturer SUNRICHER. Thanks to its elegant glass finish, the panel features full touch control. It is perfect for controlling single-color LED lighting, such as LED strips, at a distance of up to 30m.

Main features:

  • Stylish glass touch panel.
  • Easy connection to the receiver (controller).
  • For use only with controllers - SR-2501N, SR-2501N EA, SR-2501NS.
  • Wireless radio frequency control - RF.
  • Type of control panel - touch, wall-mounted, built-in.
  • Panel with 2 zones for on/off and dimming.
  • Can individually switch and dim single-color LED lights.
  • Backlighting is clearly visible in the dark.
  • Power supply 12-24VDC/110-240VAC.
  • Control distance up to 30m.
  • Protection rating - IP20.

Application:

  1. Press to turn on/off.
  2. Press and hold for smooth dimming.

Size 86*86*29 mm.

Complies with CE, RoHS standards.

Documents Built-in panel SR-2805T1
